TXS-606HSE/2

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

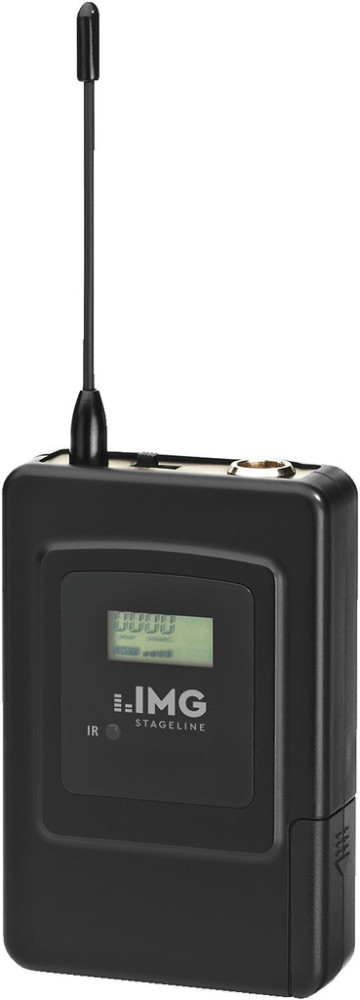

Multifrequency pocket transmitter,

with UHF PLL technology.

• 800 selectable UHF frequencies (672.000-691.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
• Continuously adjustable sensitivity
• LCD for indicating group/channel, audio level and battery status
• Suitable for combination with headband/earband microphones and tie clip microphones with 3-pole mini XLR connector
• Belt clip
• Power supply via 2 x 1.5 V battery AA size (not supplied)

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Adatok

Power supply transmitter:

2 x 1.5 V batt. AA size

Connections transmitter:

1 x 3-pole mini XLR

Üzemidő:

> 8 h

Átviteli tartomány:

30-18.000 Hz

Megengedett körny. hőm.:

0-40 °C

Az adó mélysége:

27 mm

Nettó súly:

0,08 kg

Description:

pocket transmitter

Csatornák:

1

Vivőfrekvencia:

672,000-691,975 MHz

Az adó szélessége:

61 mm

Adóteljesítmény:

10 mW

Az adó tömege:

80 g

Multifrekvenciás:

1

Az adó magassága:

106 mm

EAN code:

4,007,754,276,176

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA RED
Catalog page
Instruction manual
Declaration of Conformity CE RED
