TXS-616SET/2

110 350 Ft

TXS-616SET/2

Németországi raktáron

110 350 Ft

Terméknév:

VEZETÉK NÉLKLI MIKROFONSZETT

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

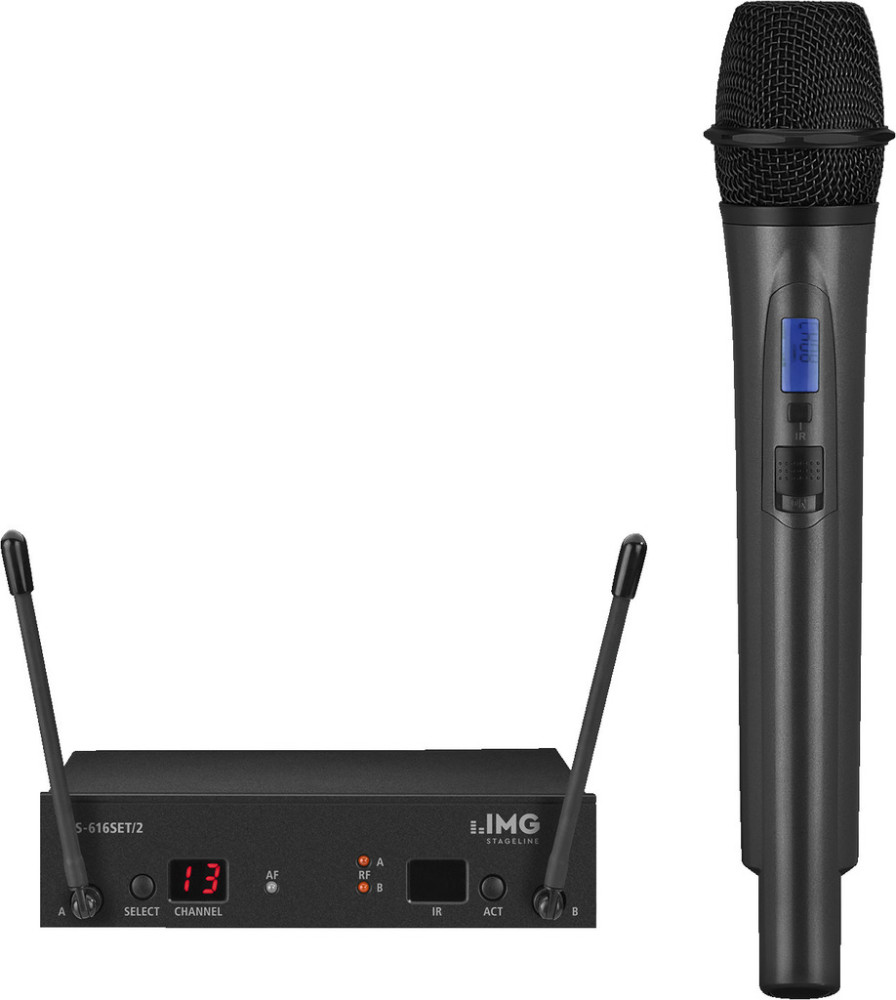

Multifrequency microphone system, 672.000-696.975 MHz, incl. transmitter and receiver

Részletek

Multifrequency microphone system,

with UHF PLL technology.

1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply
True diversity system
80 selectable UHF channels (672.000-691.750 MHz)
ACT function for transmitting selected frequency to the hand-held microphone via infrared signal
Auto-scan
Volume and squelch controls
Transmitting power can be switched at the hand-held microphone (high/low)
Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
Robust metal housing (receiver)

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Adatok

Power supply transmitter:

2 x 1.5 V batt. AA size

Connections receiver:

1 x 6.3 mm jack, unbal.

1 x XLR, bal.

RF jel/zaj viszony:

105 dB

Átviteli tartomány:

50-18.000 Hz

Kézimikrofon:

Megengedett körny. hőm.:

0-40 °C

A vevő szélessége:

152 mm

A vevő mélysége:

120 mm

Az adó mélysége:

275 mm

Nettó súly:

0,85 kg

Audio signal receiver:

350 mV/10 kΩ (jack)

25 mV/10 kΩ (XLR, bal.)

Description:

wireless microphone system

Transmitting power:

< 25 mW/2.5 mW (EIRP)

Csatornák:

Vivőfrekvencia:

672-692 MHz

Az adó szélessége:

52 mm

Power supply receiver:

via encl. plug-in power supply

Dinamikus:

120 dB

Teljes harmonikus torzítás:

< 0,5 %

A vevő magassága:

38 mm

Hatótávolság:

≈ 50 m

A vevő tömege:

482 g

Az adó tömege:

235 g

Multifrekvenciás:

Az adó magassága:

52 mm

EAN code:

4,007,754,276,206

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok

Letöltések

Instruction manual
Catalog page
Declaration of Conformity CE RED
Declaration of Conformity UKCA RED
