FLAT-M8

215 456 Ft

FLAT-M8

Name: FLAT-M8
SKU: FLAT-M8
Price: 215456 HUF
Availability: InStock

Németországi raktáron

215 456 Ft

Terméknév:

Színpadi monitor, 300 W, AUX bemenet

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

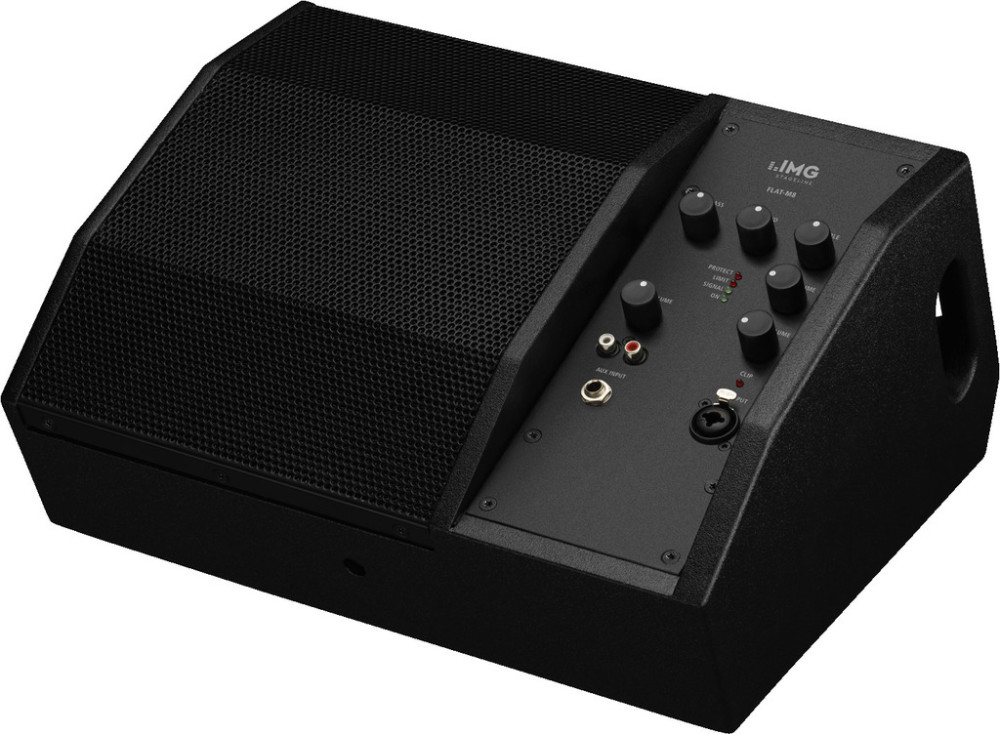

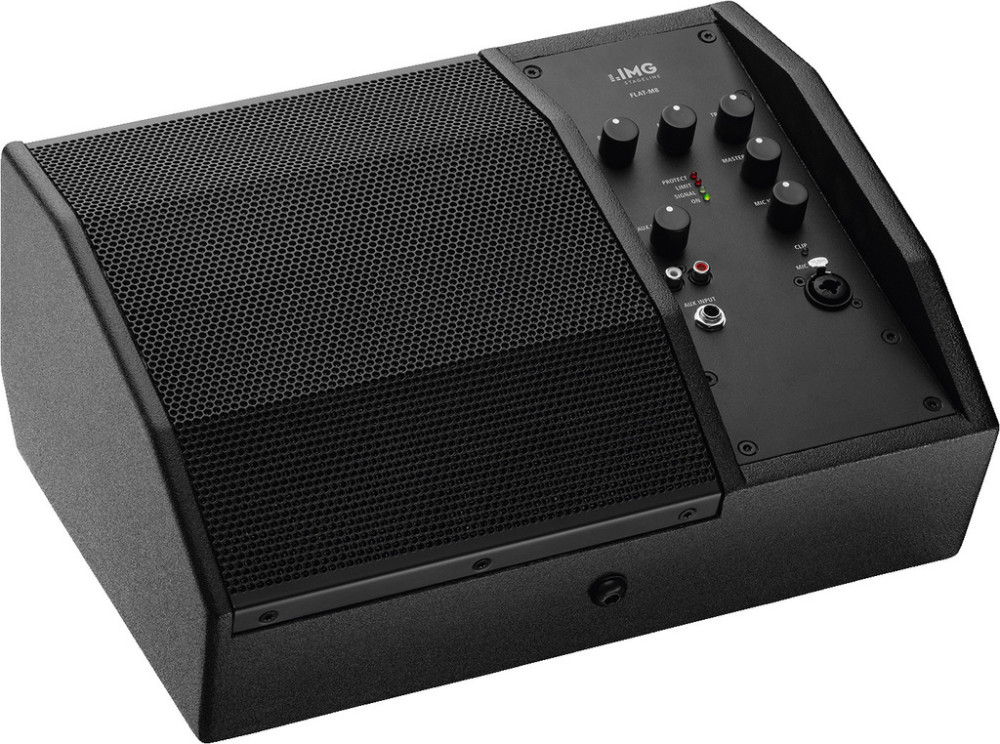

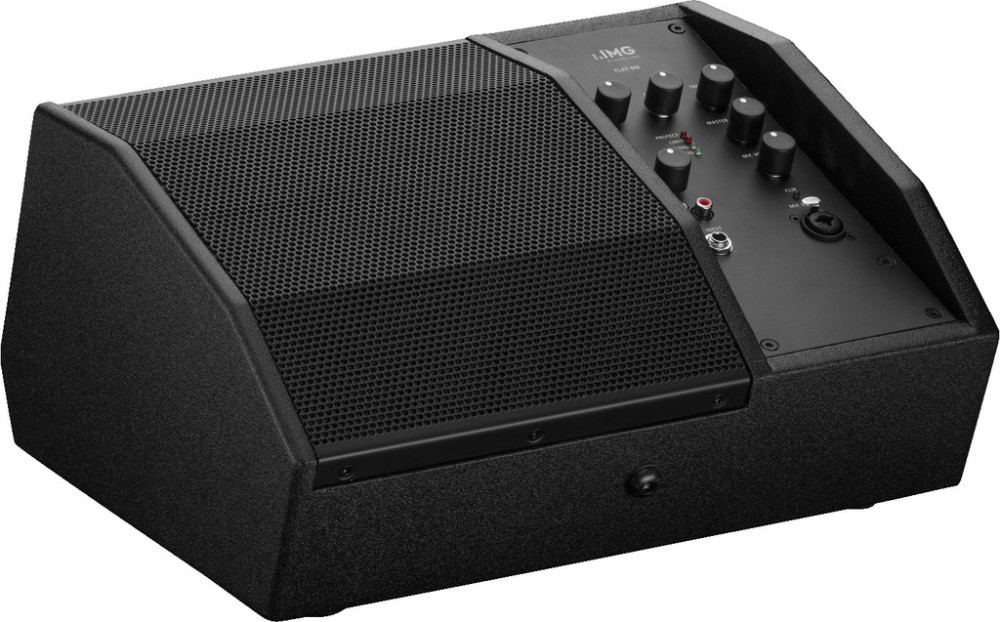

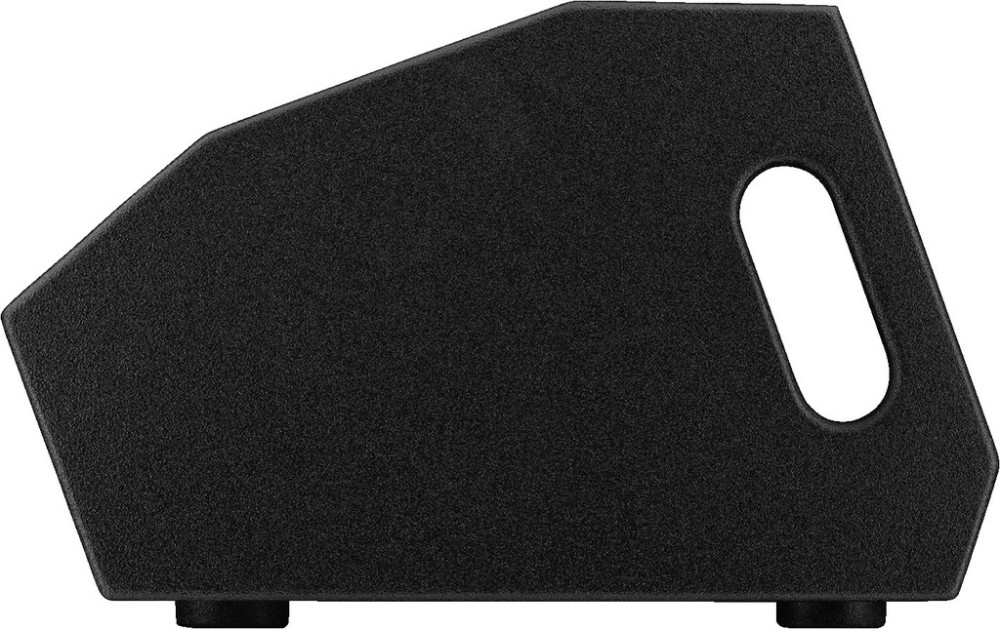

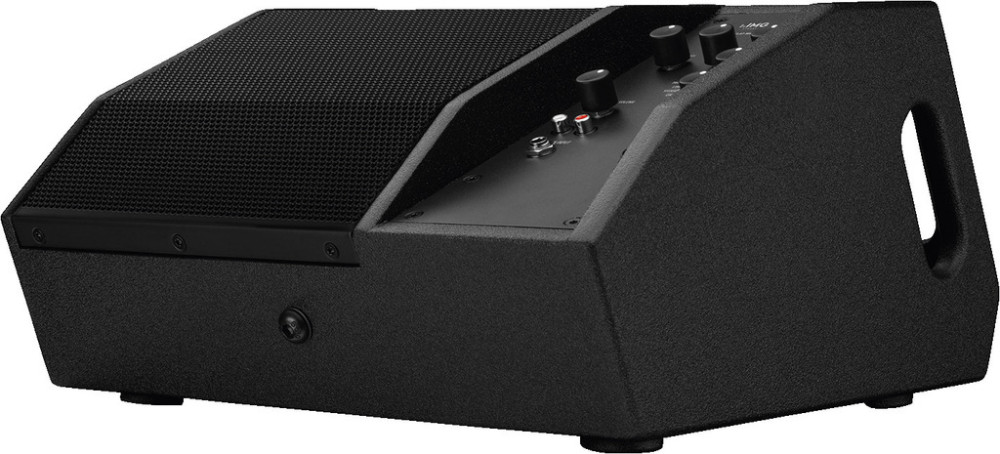

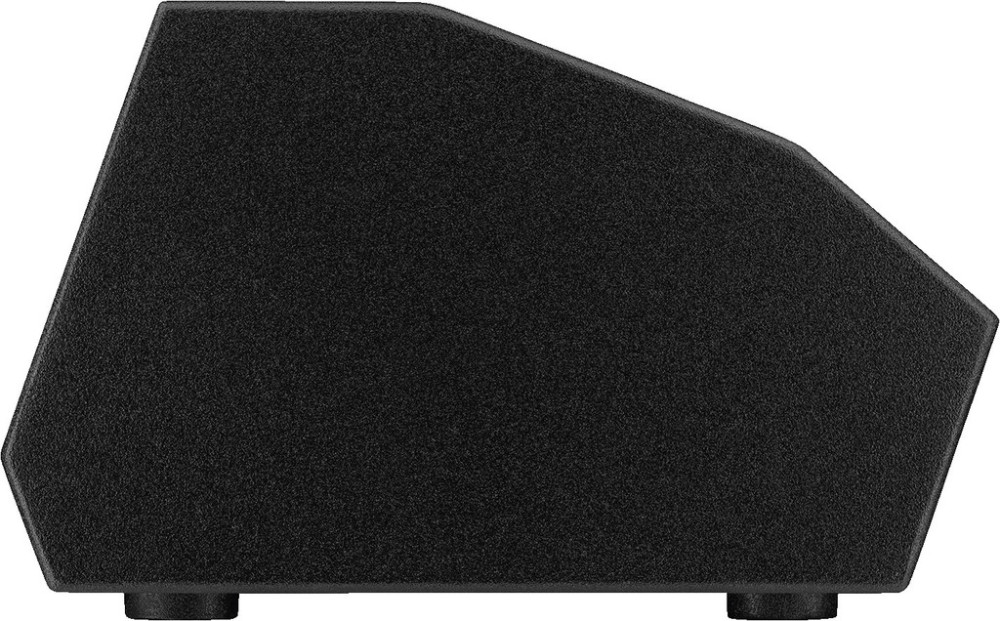

Active PA stage monitor speaker system, 300 W

Részletek

Active PA stage monitor speaker system, 300 W

Flat and very compact full range system
Fitted with a 20 cm (8") coaxial speaker with horn tweeter
Class D amplifier system
Sound pressure at nominal power: 121 dB
Indication of protect, limiter, signal and power-on
Volume control and 3-way tone control (bass, midrange and treble)

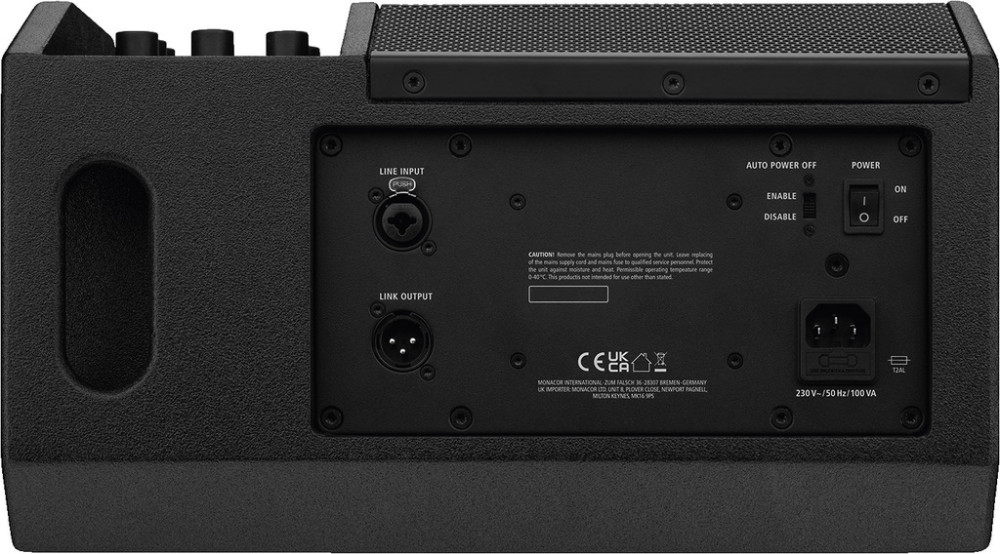

Balanced line/mic input and feed-through output
Unbalanced line input RCA L/R or 6.3 mm jack
Switchable automatic power-off
High-quality plywood cabinet with protective metal grille
M10 threaded insert for stand adapter or mounting device

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Hangszórók száma:

Input signal:

180 mV/5,6 kΩ (line, bal.),

180 mV/5,6 kΩ (aux, RCA)

1.5 mV/1.2 kΩ (mic, bal.),

70 mV/4 kΩ (aux, 6.3 mm jack, asym.)

Speaker size:

20 cm (8")

Névleges maximális hangnyomás:

121 dB

Mounting device:

1 x M10 threaded insert

Lesugárzási szög, vízszintes:

70°

Lesugárzási szög, függőleges:

50°

Magasság:

185 mm

Radiation angle/beam angle:

H: 70°/V: 50°

Aktív:

Outputs:

1 x XLR direct out

Other features:

limiter

Átviteli tartomány:

70-21.000 Hz

Erősítőteljesítmény:

100 W

Housing material:

MDF

Tömeg:

7,48 kg

Bruttó súly:

8,82 kg

Max. teljesítmény:

300 W

Megengedett körny. hőm.:

0-40 °C

Átviteli rendszer:

Kábel

Inputs:

1 x comb. XLR/6.3 mm (mic),

1 x comb. XLR/6.3 mm (line),

1 x RCA L/R,

1 x 6.3 mm stereo jack

Accessories:

FLAT-M8BAG

Nettó súly:

7,48 kg

Colour:

black

Aktív/passzív:

aktív

Érzékenység (1W/1m):

99 dB/W/m

Szélesség:

375 mm

Packing dimensions (W x H x L):

0.43 x 0.29 x 0.47 m

Mélység:

330 mm

Bass speaker:

1 x 20 cm (8")

Power supply:

˜ 230 V/50 Hz/100 VA

System:

1 x 2-way coaxial speaker

Dimensions:

375 x 185 x 330 mm

Tweeter:

1 x coaxial horn tweeter

Packaging dimensions (W x H x L):

0.43 x 0.29 x 0.47 m

EAN code:

4,007,754,415,780
