PAK-415

352 501 Ft

PAK-415

Name: PAK-415
SKU: PAK-415
Price: 352501 HUF
Availability: InStock

Németországi raktáron

352 501 Ft

Terméknév:

Aktív hangfal

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

Active power PA speaker system with 2-channel amplifier, 700 W

Részletek

PAK-400 Series

The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the tweeter. With practice-oriented presets, it is easy to find the perfect sound and with the high-pass filter to be activated as required at 75 Hz, this series can easily be matched to subwoofer systems like the PSUB-418AK.

Active power PA speaker system with 2-channel amplifier, 700 W

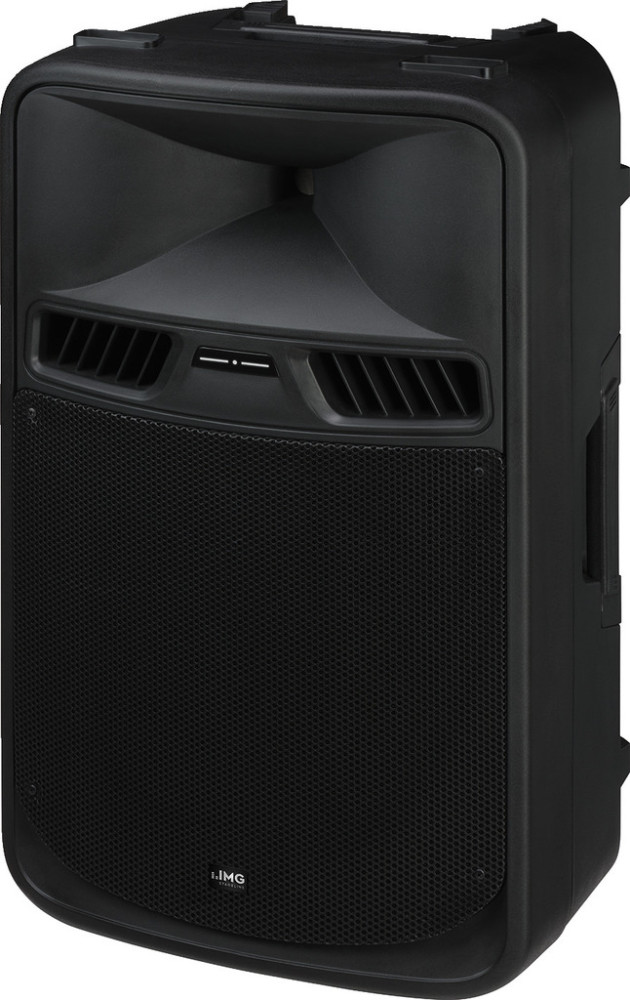

Compact 15/2 full range system with robust plastic cabinet
Modern amplifier system (bass: class D, tweeter: class A/B)
Sound pressure at nominal power: 124 dB
4 selectable presets: normal, hi-fi, DJ and voice, switchable high-pass filter: 75 Hz

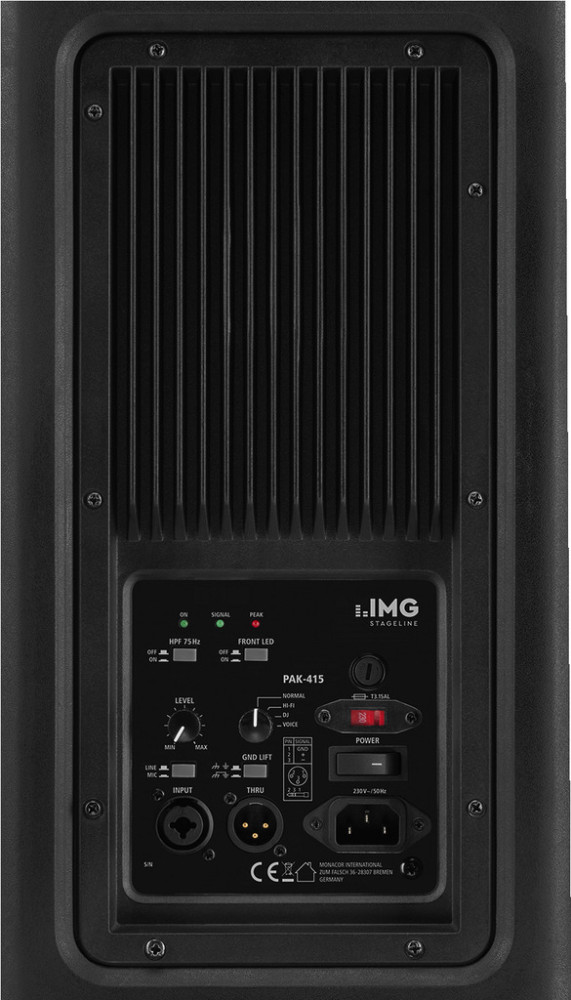

Mic/line input, switchable
LED indicators for power, signal and peak/clipping
M10 threaded inserts (2 x top, 2 x bottom, 1 x at the rear)
Bevelled side for application as a floor monitor
Stand sleeve and carrying handles

TASTENWELT 06/2015

“The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Hangszórók száma:

Input signal:

260 mV/10 kΩ (line),

2 mV/10 kΩ (mic)

Speaker size:

38 cm (15")

Névleges maximális hangnyomás:

124 dB

Mounting device:

M10 threaded inserts, stand sleeve

Lesugárzási szög, vízszintes:

100°

Lesugárzási szög, függőleges:

70°

Magasság:

740 mm

Radiation angle/beam angle:

H: 100°/V: 70°

Aktív:

Outputs:

1 x XLR, par. out

Other features:

4 selectable presets

switchable high-pass filter: 75 Hz

Átviteli tartomány:

40-20.000 Hz

Housing material:

plastic

Tömeg:

18,7 kg

Bruttó súly:

21,82 kg

Max. teljesítmény:

700 W

Megengedett körny. hőm.:

0-40 °C

Átviteli rendszer:

Kábel

Inputs:

1 x comb. XLR/6.3 mm (line/mic)

Nettó súly:

19,16 kg

Colour:

black

Aktív/passzív:

aktív

Érzékenység (1W/1m):

98 dB/W/m

Szélesség:

455 mm

Packing dimensions (W x H x L):

0.48 x 0.84 x 0.54 m

Mélység:

390 mm

Bass speaker:

38 cm (15") bass speaker

Power rating (RMS):

450 (350+100) W

Power supply:

˜ 230 V/50 Hz/550 VA

System:

15/2 full range

Dimensions:

455 x 740 x 390 mm

Tweeter:

33 mm (1.3") tweeter

Packaging dimensions (W x H x L):

0.48 x 0.84 x 0.54 m

EAN code:

4,007,754,244,908

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok

Letöltések

Instruction manual
Declaration of Conformity UKCA
Declaration of Conformity CE
Catalog page
Instruction manual
