PSUB-418AK

709 219 Ft

PSUB-418AK

Name: PSUB-418AK
SKU: PSUB-418AK
Price: 709219 HUF
Availability: InStock

Németországi raktáron

709 219 Ft

Terméknév:

Aktív subwoofer

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

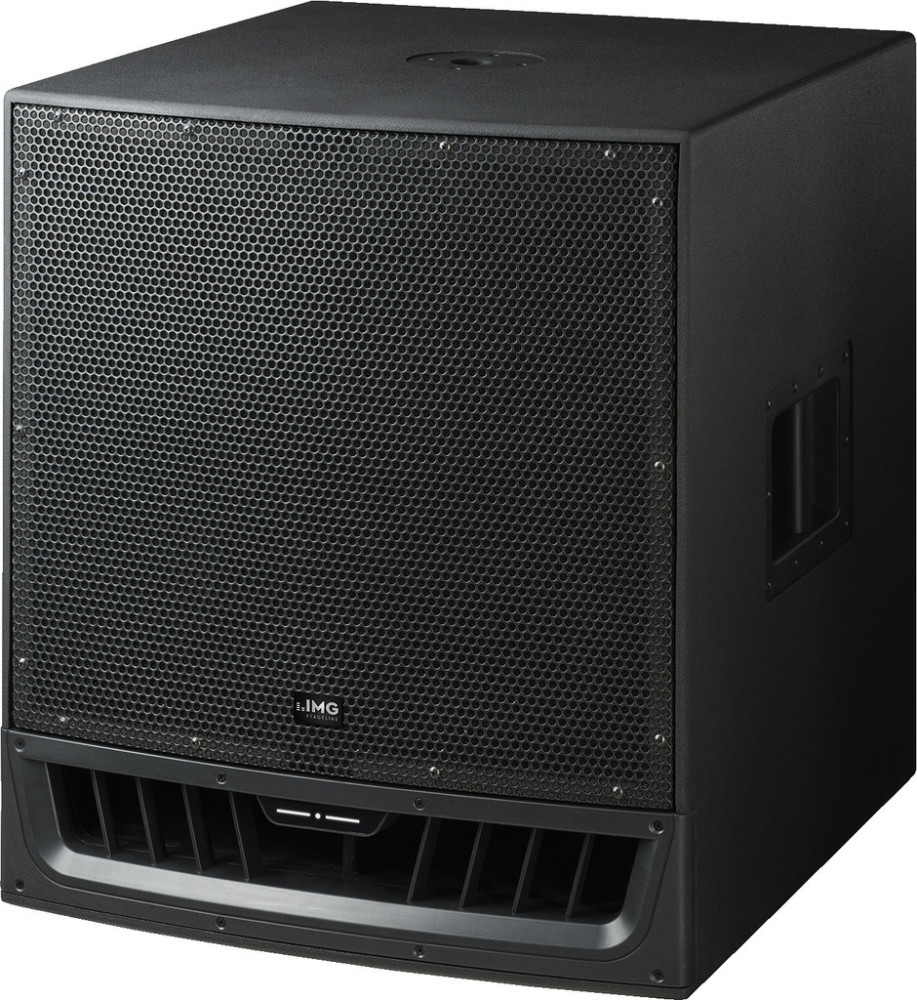

Active power PA subwoofer, 1,000 W

Részletek

PAK-400 Series

The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the tweeter. With practice-oriented presets, it is easy to find the perfect sound and with the high-pass filter to be activated as required at 75 Hz, this series can easily be matched to subwoofer systems like the PSUB-418AK.

Active power PA subwoofer, 1,000 W

Compact and lightweight 46 cm (18") subwoofer with class D amplifier
Cabinet made of birch plywood with stand sleeve, carrying handles and castors
Bass-reflex system with sound pressure at nominal power: 127 dB
Adjustable crossover frequency: 60-150 Hz, gain control, phase reversal switch
Balanced inputs: comb. XLR/6.3 mm and parallel XLR outputs
LED indicators for power, signal and peak/clip
Stand sleeve, carrying handles, rubber feet
Supplied with castors

TASTENWELT 06/2015

“The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Hangszórók száma:

Input signal:

1.5 V/55 kΩ

Speaker size:

46 cm (18")

Névleges maximális hangnyomás:

127 dB

Mounting device:

stand sleeve

Magasság:

660 mm

Radiation angle/beam angle:

omnidirectional

Aktív:

Outputs:

XLR: par. out (L/R)

Átviteli tartomány:

35-150 Hz

Erősítőteljesítmény:

600 W

Housing material:

birch plywood

Tömeg:

38 kg

Bruttó súly:

44,4 kg

Max. teljesítmény:

1.000 W

Megengedett körny. hőm.:

0-40 °C

Átviteli rendszer:

Kábel

Inputs:

comb. XLR/6.3 mm input (L/R)

Nettó súly:

38 kg

Colour:

black

Aktív/passzív:

aktív

Érzékenység (1W/1m):

97 dB/W/m

Szélesség:

560 mm

Packing dimensions (W x H x L):

0.68 x 0.74 x 0.83 m

Mélység:

600 mm

Bass speaker:

46 cm (18") bass speaker

Power supply:

˜ 230 V/50 Hz/840 VA

System:

bass-reflex

Dimensions:

560 x 660 x 600 mm

(w/o castors)

Packaging dimensions (W x H x L):

0.68 x 0.74 x 0.83 m

EAN code:

4,007,754,244,847

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity CE
Catalog page
Declaration of Conformity UKCA
Instruction manual
