Részletek

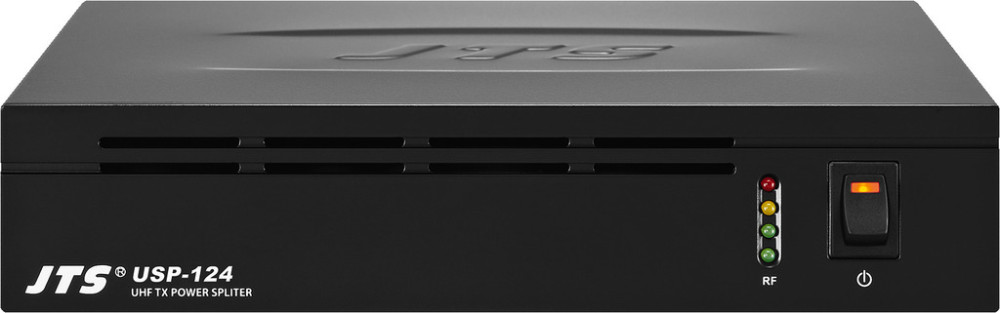

4-way antenna splitter

• For operating up to four antennas with one transmitter (e.g. SIEM-111/5)
• Frequency range: 470-960 MHz
• Gain: 0 dB, ± 2 dB
• All connections via BNC jacks

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Antenna gain:

0 dB, ±2 dB

Tömeg:

350 g

Nettó súly:

1,63 kg

Aktív/passzív:

aktív

Connection:

BNC

Power supply:

via encl. power supply

Dimensions:

212 x 44 x 203 mm

Frekvenciaátfogás:

470-960 MHz

EAN code:

4,007,754,256,345

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page
Declaration of Conformity UKCA
Declaration of Conformity CE
