Részletek

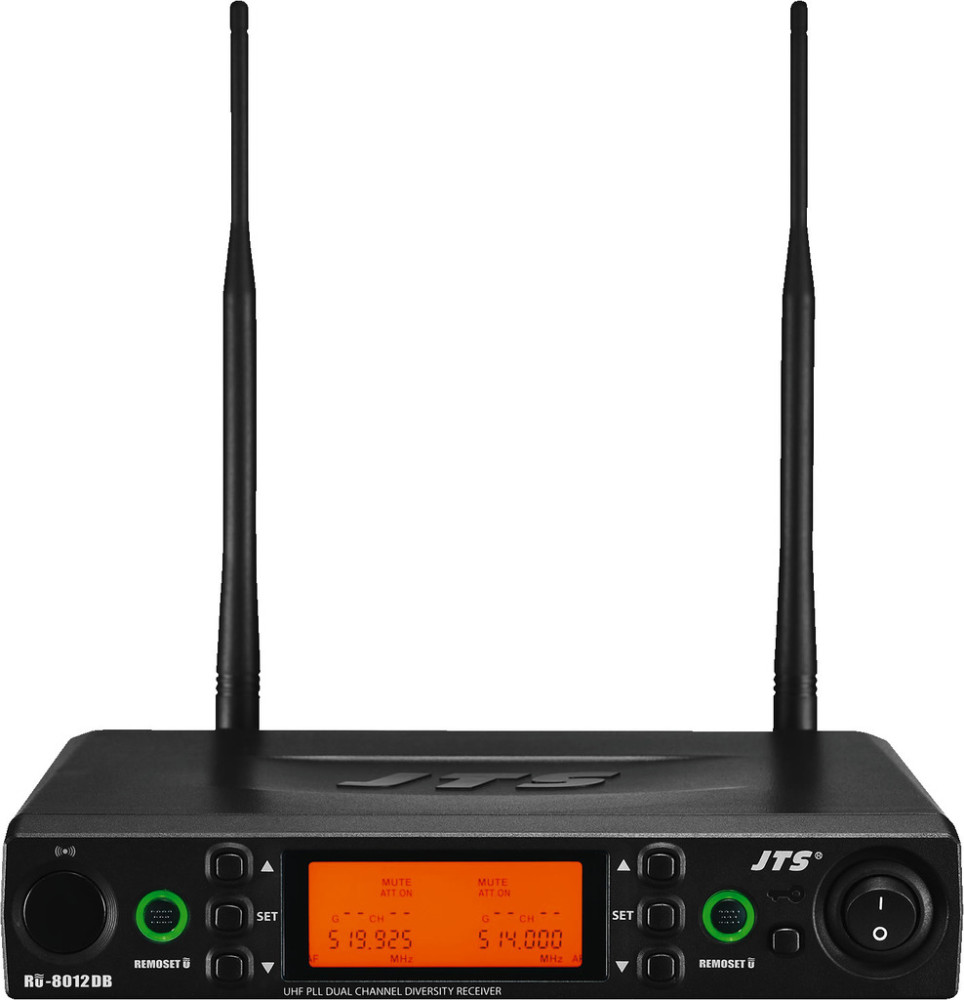

2-channel diversity UHF PLL wideband receiver

• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
• Removable antennas (BNC connection)
• Auto-scan function
• Pilot tone squelch and noise mute
• Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level
• 2 x XLR output (bal.) and 2 x 6.3 mm jack output (unbal.)

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Connections receiver:

2 x XLR, bal.,

2 x 6.3 mm jack, unbal.

Átviteli tartomány:

50-16.000 Hz

Megengedett körny. hőm.:

0-40 °C

A vevő szélessége:

212 mm

A vevő mélysége:

144 mm

Nettó súly:

0,75 kg

Audio signal receiver:

630 mV/600 Ω XLR (line),

63 mV/600 Ω XLR (mic),

320 mV/600 Ω jack

Description:

receiver unit

Csatornák:

2

Vivőfrekvencia:

506-542 MHz

Power supply receiver:

via encl. power supply

Dinamikus:

> 105 dB

Teljes harmonikus torzítás:

< 0,6 %

A vevő magassága:

38 mm

A vevő tömege:

508 g

Multifrekvenciás:

1

EAN code:

4,007,754,261,318

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page
Declaration of Conformity CE RED
Declaration of Conformity UKCA RED
Instruction manual
