RU-850LTB/5

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

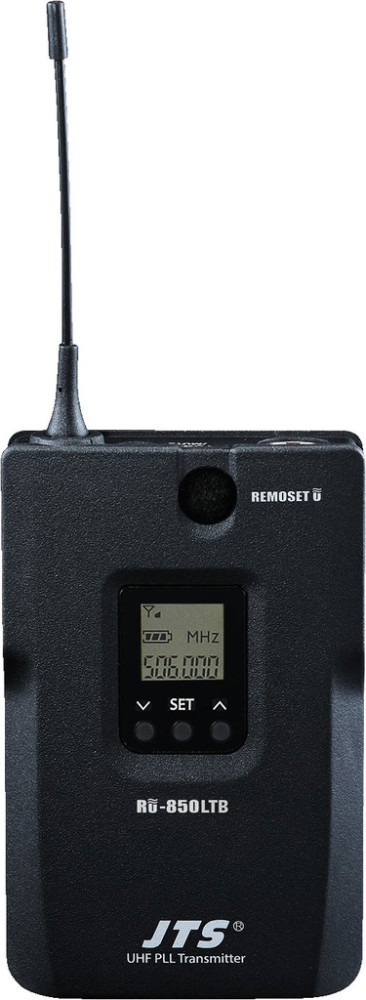

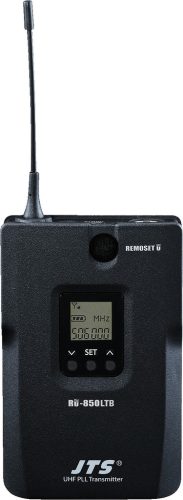

UHF PLL pocket transmitter

• Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector
• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
• Selectable sensitivity (± 15 dB); additional 20 dB attenuation can be activated as required
• Lock/mute function
• 5-level display for indicating battery status and low battery alert, backlit LCD
• Switchable transmitting power

There are restrictions or requirements in the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Adatok

Power supply transmitter:

2 x batt. AA size,

alkaline (not supplied)

Connections transmitter:

4-pole mini XLR

Üzemidő:

30 h

Átviteli tartomány:

50-16.000 Hz

Megengedett körny. hőm.:

0-40 °C

Az adó mélysége:

20 mm

Nettó súly:

0,095 kg

Description:

pocket transmitter

Transmitting power:

10/50 mW

Csatornák:

1

Vivőfrekvencia:

506-542 MHz

Az adó szélessége:

62 mm

Az adó tömege:

76 g

Multifrekvenciás:

1

Az adó magassága:

97 mm

EAN code:

4,007,754,261,080

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity CE RED
Declaration of Conformity UKCA RED
Catalog page
Instruction manual
