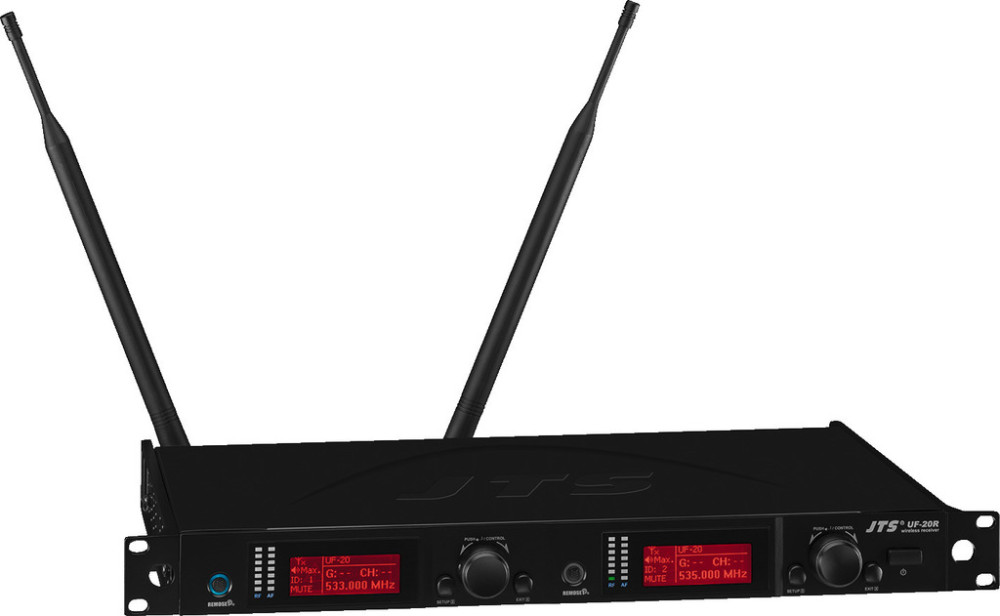

UF-20R/5

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

The wideband multifrequency system UF-20... from JTS

is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

2-channel true diversity UHF PLL wideband receiver

• Bandwidth: 75 MHz
• 15 groups, each with 63 compatible preset channels
• 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
• RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
• REMOSET technology for receiver/transmitter synchronisation
• Auto-scan function
• Pilot tone and noise squelch
• Equalizer function
• LED for indicating RF level and AF level
• Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
• Metal housing
• Power supply for optional antenna booster UB-900I directly via antenna inputs

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

REMOSET

is an innovative technology which allows the user to adjust the corresponding hand-held or pocket transmitter via radio signal to a transmission channel to be used.
Advantage: frequency setup easily done via receiver without visual contact to the transmitter - and this is possible even during a live performance.

tools4music 06/2015

“With the wireless system UF-20, JTS is able to offer an absolutely professional system. Despite numerous features, the menu navigation can easily be followed and understood. The REMOSET function allows you to simultaneously adjust up to 48 transmitters and receivers. In addition, important functions of the hand-held transmitter can remotely be controlled via the receiver which is particularly helpful at festivals. It allows you to quickly adjust the microphone sensitivity. The system also impresses with an appealing design and a neat workmanship.”

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Connections receiver:

2 x XLR, bal.,

2 x 6.3 mm jack, bal.

Átviteli tartomány:

50-18.000 Hz

Megengedett körny. hőm.:

0-40 °C

A vevő szélessége:

480 mm

A vevő mélysége:

214 mm

Nettó súly:

3,53 kg

Audio signal receiver:

100 mV XLR,

100 mV jack

Description:

wireless receiver

Csatornák:

2

Vivőfrekvencia:

530-605 MHz

Power supply receiver:

˜ 100-240 V/50-60 Hz/25 VA

Dinamikus:

> 108 dB

Teljes harmonikus torzítás:

< 0,5 %

A vevő magassága:

44 mm

A vevő tömege:

2,9 kg

Multifrekvenciás:

1

EAN code:

4,007,754,246,810

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Circuit diagram
Catalog page
Declaration of Conformity CE RED
Declaration of Conformity UKCA RED
Instruction manual
