SAM-500D

169 431 Ft

SAM-500D

Name: SAM-500D
SKU: SAM-500D
Price: 169431 HUF
Availability: InStock

Rendelhető

169 431 Ft

Terméknév:

Digitális végfokpanel

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

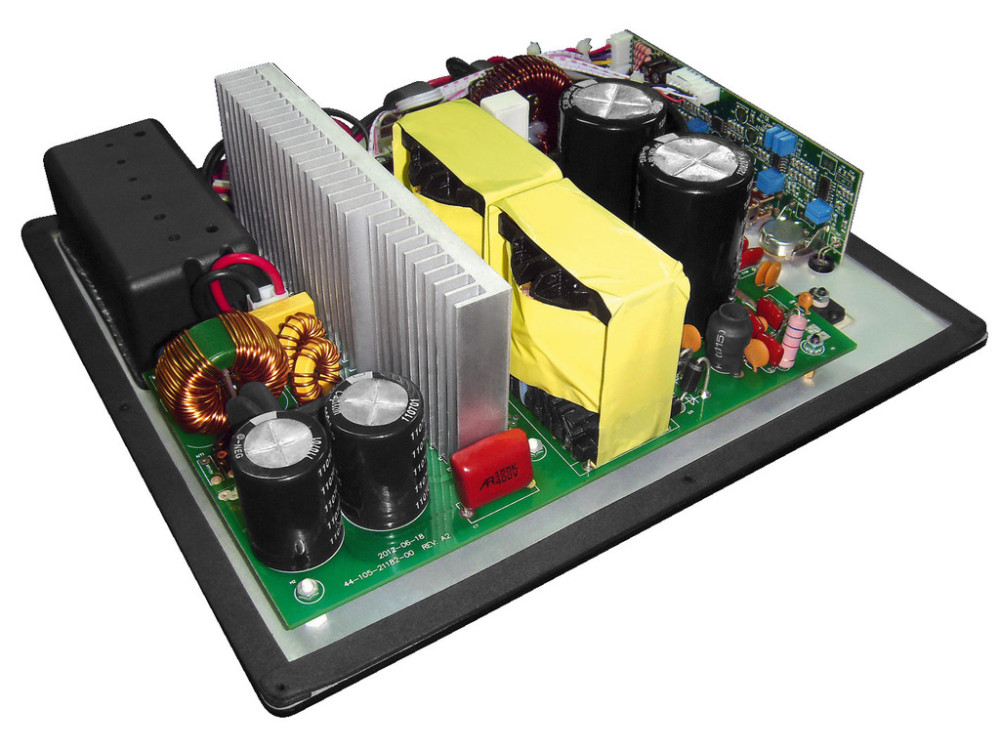

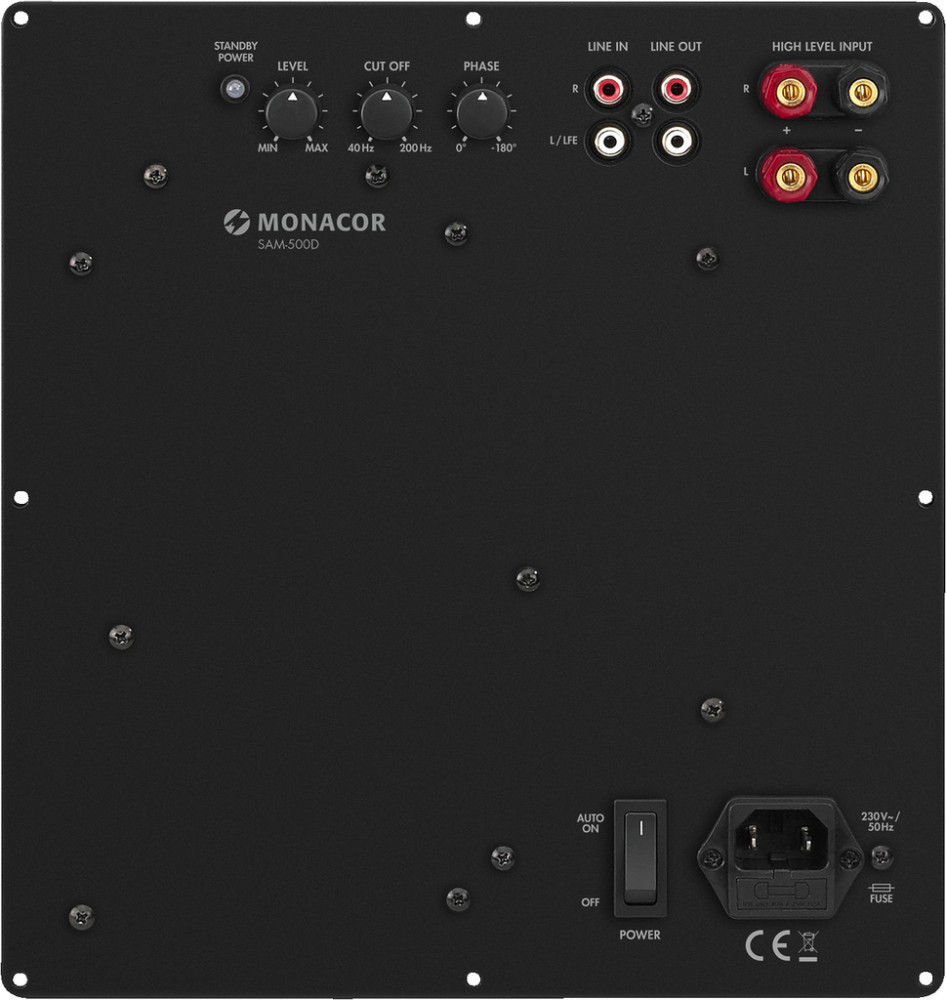

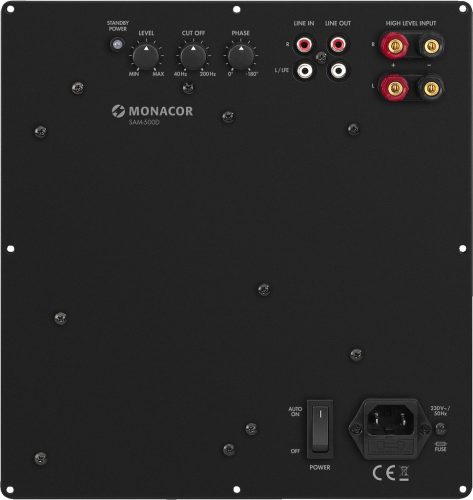

Class D active subwoofer module, 500 W at 4 Ω

Részletek

Active Subwoofer Modules for the Digital Age

Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

Class D active subwoofer module, 500 W at 4 Ω

High-performance active module in class D technology
Variable low-pass filter: 40-200 Hz (18 dB)
Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
Line input, par. line output
Integrated bass boost of approx. 3 dB at 40 Hz
High-level inputs for parallel connection to the speaker cables
Very high power reserves for bass speakers with a diameter up to 46 cm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Adatok

Kisimpedanciás:

Hálózati frekvencia:

50 Hz

Magasság:

270 mm

Csillapítási tényező:

25,0

Jel/zaj-viszony:

> 70 dB

Connections:

1 x RCA (line in),

1 x speaker terminal (high power in),

1 x RCA (line out)

Névleges teljesítmény:

500 W

Névleges teljesítmény 4Ω-on:

500 W

Névleges teljesítmény 8Ω-on:

250 W

Tömeg:

2,6 kg

Bruttó súly:

3,22 kg

Max. teljesítmény:

700 W

Teljesítményfelvétel készenléti állapotban:

< 0,5 W

Megengedett körny. hőm.:

0-40 °C

Inputs:

max. 7 V/22 kΩ

Üzemi áramfelvétel:

840 VA

Tápellátás:

- 230 V

Nettó súly:

2,6 kg

Frequency range:

20 Hz - (var. 40-200 Hz)

Csatornák:

Szélesség:

251 mm

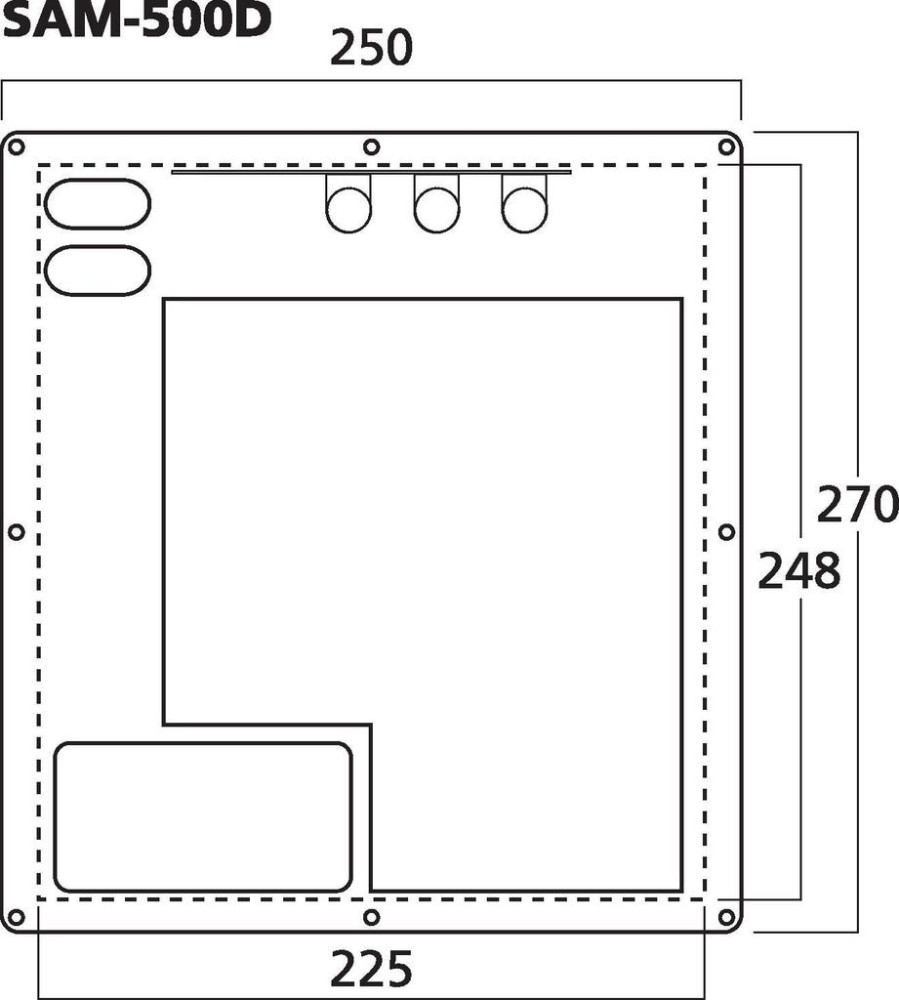

Packing dimensions (W x H x L):

0.25 x 0.1 x 0.27 m

Mélység:

90 mm

Teljes harmonikus torzítás:

< 1 %

Power supply:

˜ 230 V/50 Hz/840 VA

Crossover network:

18 dB/oct.

Packaging dimensions (W x H x L):

0.25 x 0.1 x 0.27 m

EAN code:

4,007,754,231,588

TTeljesítményfelvétel készenléti állapotban:

< 0,5 W

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity CE
Instruction manual
Declaration of Conformity UKCA
