The Great Home Cinema Centre

If you look at the miniature home cinema sets which are widely available nowadays, you can notice two things:

1.) You might need more imagination than a positive-minded speaker technician to believe that these fist-sized speaker systems in thin plastic cabinets can deliver a sufficient sound. Compared with a specially designed high-fidelity speaker, you cannot ignore the limitations of these sets.

2.) Even with these systems which focus on minimum size and a most favourable price, you can often find centre speakers which feature at least a dual configuration of the full range effect speakers which are usually applied in these systems.

All in all, the second point just reflects that a centre speaker plays the most important and demanding part in a surround system. The performance of a home cinema system crucially depends on the centre speakers, then subwoofer, then front speakers and last but not least the rear speakers - always provided that the system features all of them. However, a high level standard can only be achieved with adequate solutions in each section. In case of an insufficient quality in the respective section, you can only achieve a limited result.

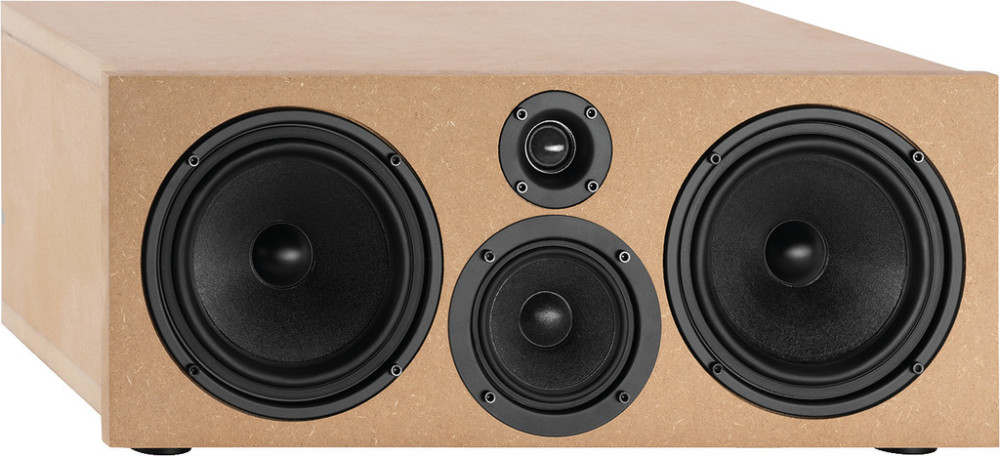

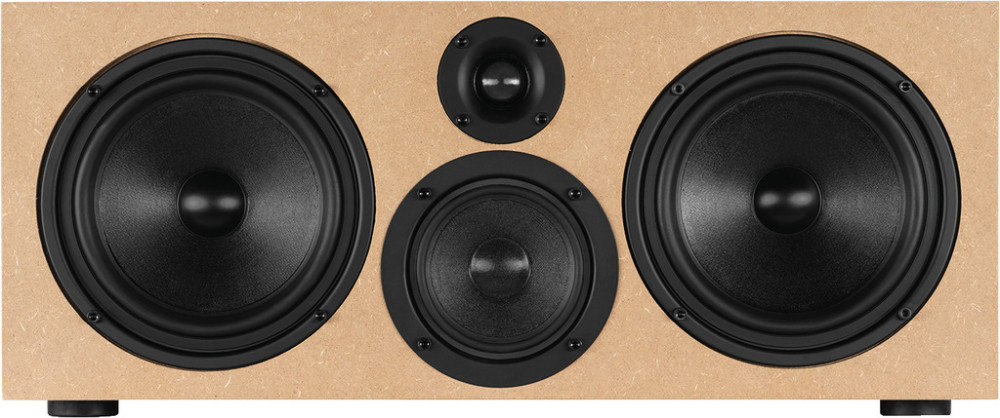

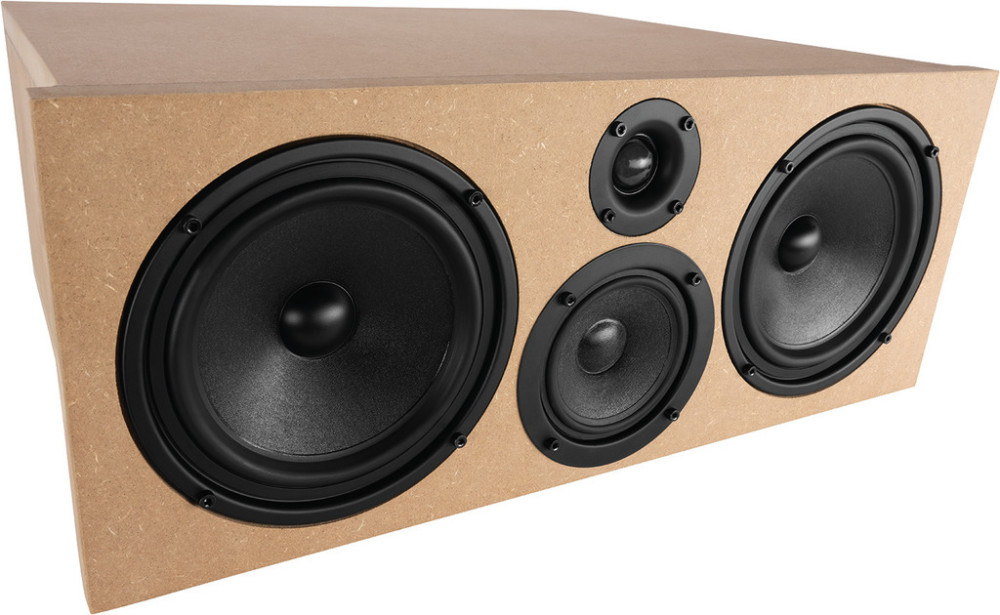

The DIRECT features a design which is nothing less than a great (home) cinema system.

This centre speaker is certainly capable of reproducing any vocals and soundtracks in a high-quality manner and with sufficient level reserves.

The 3-way circuit with dual bass and a vertically mounted mid-high range meets any specification for a high-end sound reproduction of films and concerts.
Thus, the DIRECT is clearly very suitable for the combination with our high-performance hi-fi systems KODEX and STRAIGHT which also benefit from the superior quality of the MSH-116/4. With its perfectly warm, homogeneous and nonetheless extraordinarily detailed sound, the DIRECT simply fits into any serious top-class home cinema system.

Parts list included in the delivery:

Speakers:

• Bass-midrange speaker: 2 x SPH-176
• Midrange speaker: 1 x MSH-116/4
• Tweeter: 1 x DT-25N

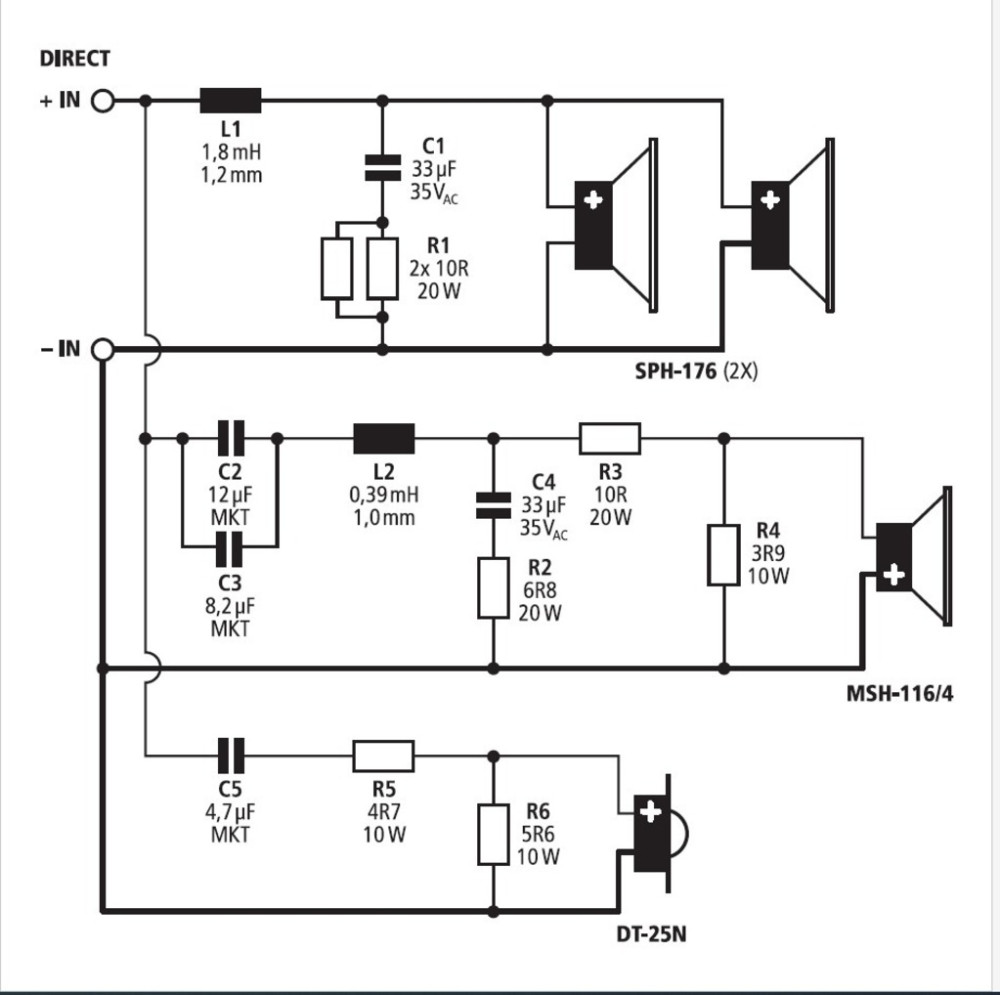

Crossover network:

• L1: 1 x LSIP-180
• L2: 1 x LSIP-39/1
• C1 + C4: 1 x sales unit LSC-330NP (4 pcs.)
• C2: 1 x MKTA-120
• C3: 1 x MKTA-82
• C5: 1 x MKTA-47
• R1: 2 x LSR-100/20
• R2: 1 x LSR-68/20
• R3: 1 x LSR-100/20
• R4: 1 x LSR-39/10
• R5: 1 x LSR-47/10
• R6: 1 x LSR-56/10

Accessories:

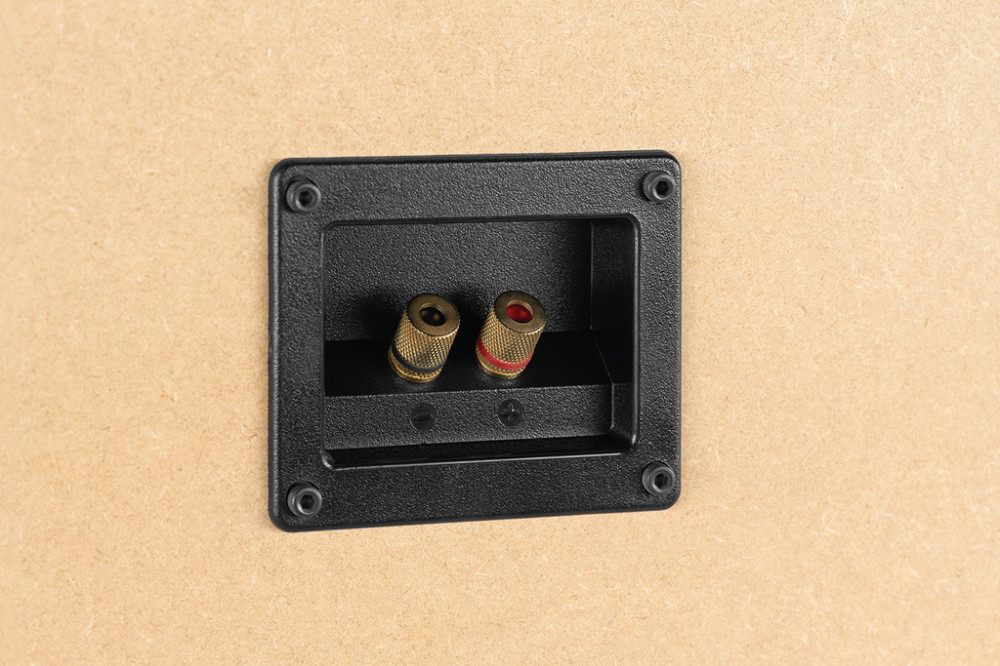

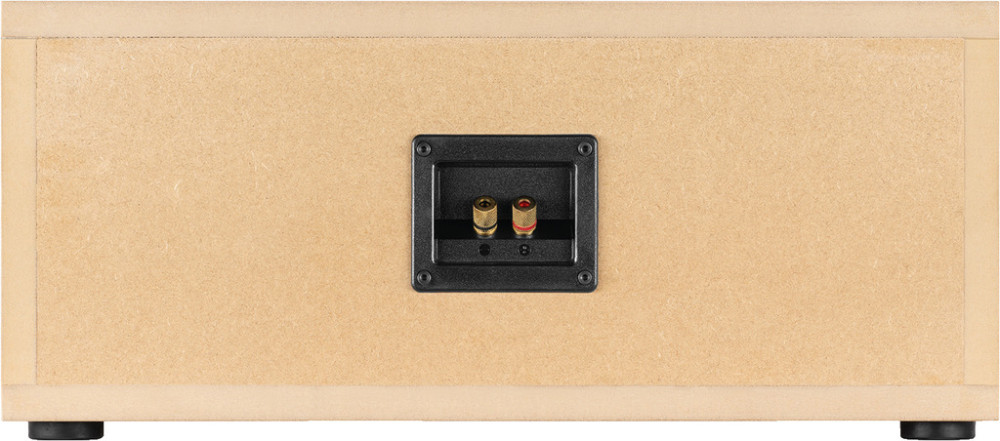

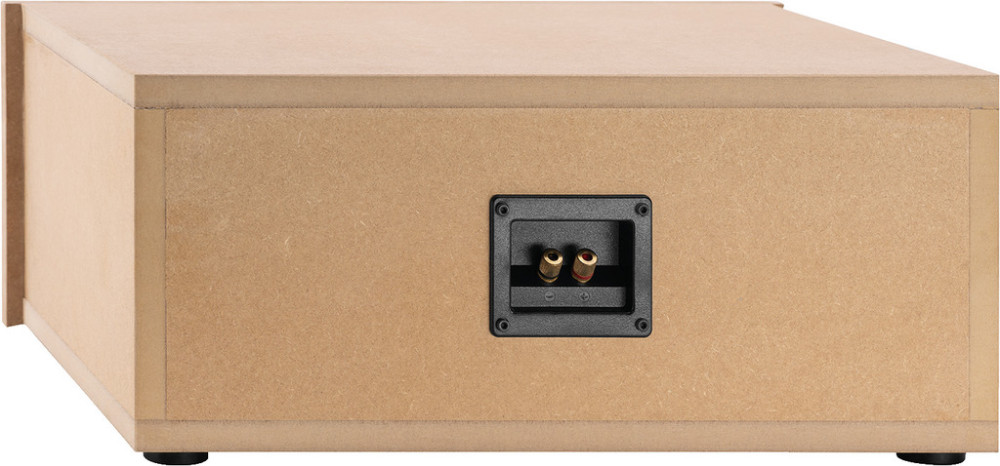

• Terminal: 1 x ST-955G
• Damping material: 2 x MDM-2
• Sealing tape: 1 x sales unit MDM-5 (5 pcs.)
• Screws: 2 x sales unit MZF-8614 (32 pcs.)

Parts list DIY store (not included in the delivery):

Cable:

• Speaker cable: 3 m, 2 cores

Wood cutting:

• MDF, 19 mm

• Side walls: 2 pcs. 172 x 400 mm
• Rear wall: 1 pc. 172 x 462 mm
• Bottom/top: 2 pcs. 500 x 400 mm
• Midrange cabinet: 2 pcs. 172 x 200 mm
• Midrange cabinet: 1 pc. 172 x 100 mm
• Reinforcing rail: 2 pcs. 172 x 100 mm

• Birch plywood, 24 mm

• Front wall/baffle: 1 pc. 210 x 520 mm
