RBT-35SR

144 501 Ft

RBT-35SR

Name: RBT-35SR
SKU: RBT-35SR
Price: 144501 HUF
Availability: InStock

Németországi raktáron

144 501 Ft

Egységár: 72 250 Ft/db

Terméknév:

Ribbon sugárzó PÁR

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

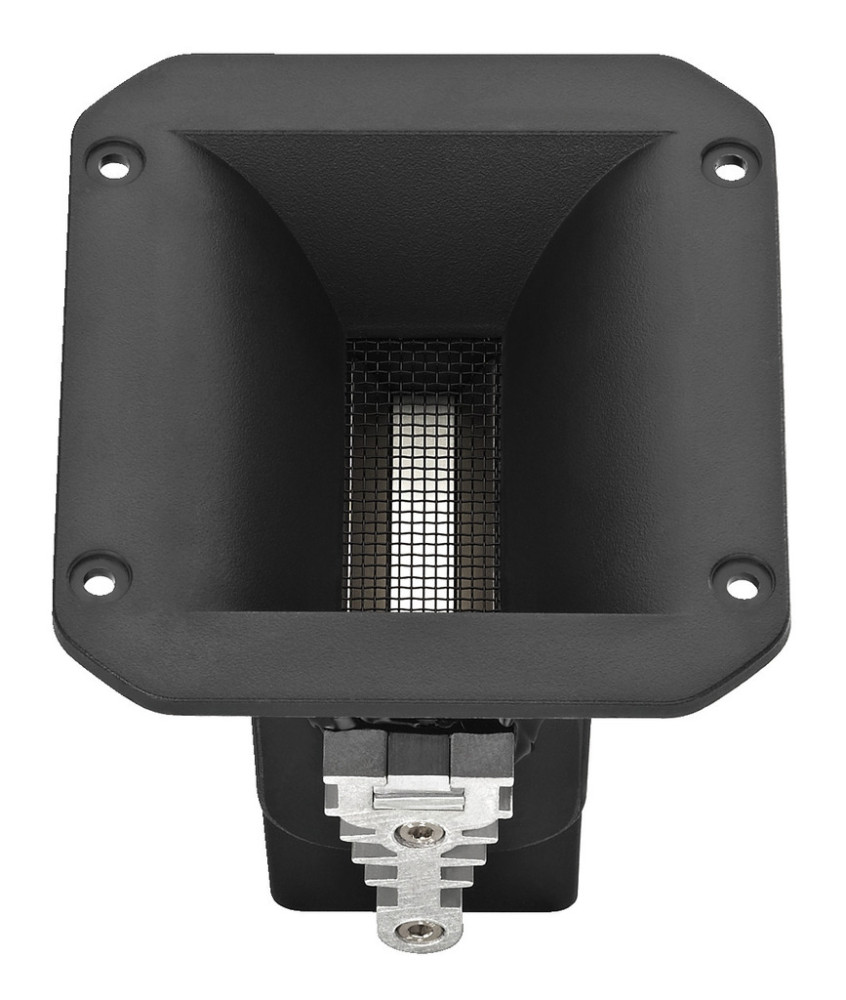

Pair of high-end ribbon tweeters, matched, 12 W, 7 Ω

Részletek

The new high-end tweeters RBT-10, RBT-20 and RBT-35SR

are part of the so-called real ribbon tweeters. The audio signal flows through the entire cone which is of extra low weight and consists of an aluminium film. A built-in high-quality transformer converts the low impedance of this cone into 5-8 Ω which is non-critical for the amplifier. Ribbon tweeters impress by an extra fine and brilliant reproduction of the high frequency range. Due to continuous further development, it is already possible to use these ribbon tweeters with crossover frequencies from 2,500 Hz on, depending on the type. This makes them a top choice whenever hi-fi speakers or studio monitors of the highest quality are required. Ribbon tweeters require a crossover network for operation!

Pair of high-end ribbon tweeters, matched, 12 W, 7 Ω

Real ribbon tweeter with neodymium magnet system and transformer
A very high sound pressure level and consistent radiation pattern due to horn front attachment
Fine and brilliant reproduction of the high frequencies
Smooth, unembossed aluminium sandwich cone: 9 x 60 x 0.015 mm
For use from 2,500 Hz on via 18 dB filter
Horn with mounting flange and protective grille

HOBBY HiFi 06/2014

“The waterfall graph shows a perfect and amazingly fast decay above the fundamental resonance frequency without any interference. ... this tweeter is a top solution for remarkably wide bandwidth applications.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Adatok

Beépítési mélység:

103 mm

Ajánlott ker. frek. (fmax) (12dB/okt.):

> 3.000 Hz

Kisimpedanciás:

Magasság:

110 mm

Impedancia (Z):

7 Ω

Zenei teljesítmény (MAX):

25 W

Rendelési egység:

Tömeg:

1,27 kg

Bruttó súly:

1,417 kg

Megengedett körny. hőm.:

0-40 °C

Átviteli rendszer:

Kábel

Nettó súly:

1,27 kg

Colour:

black

Érzékenység (1W/1m):

96 dB/W/m

Szélesség:

98 mm

Packing dimensions (W x H x L):

0.11 x 0.11 x 0.23 m

Lyukkiosztás X-tengely:

70 mm

Mélység:

103 mm

Lyukkiosztás Y-tengely:

85 mm

Névleges teljesítmény (RMS):

12 W

Mounting cutout:

87 x 62 mm

Max. átviteli sáv:

1.100-30.000 Hz

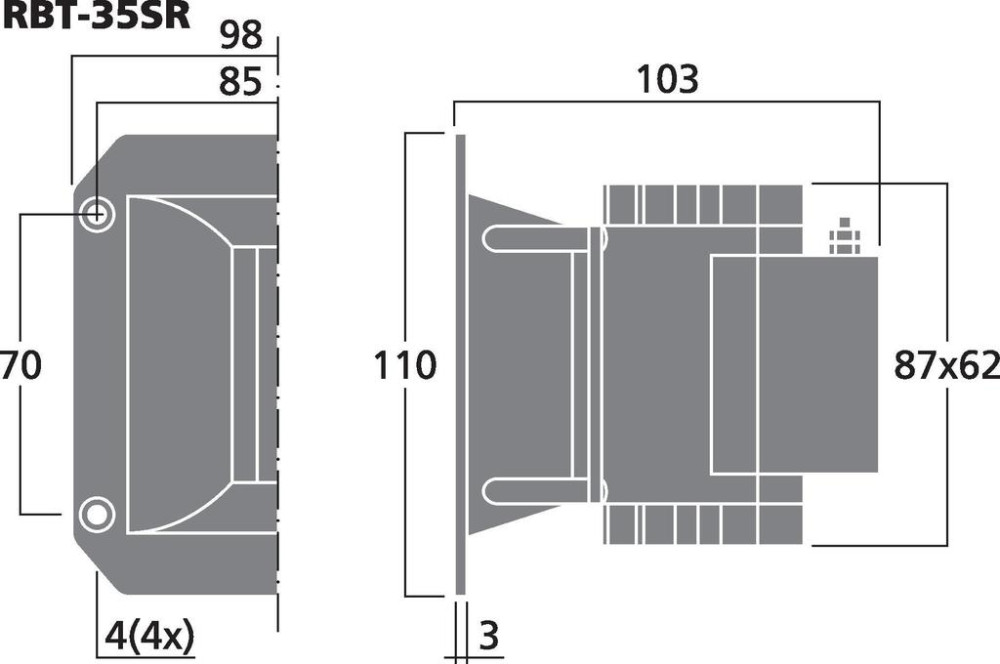

Dimensions:

98 x 110 x 103 mm

Magnet diameter:

neodymium rods

Packaging dimensions (W x H x L):

0.11 x 0.11 x 0.23 m

EAN code:

4,007,754,239,737

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Declaration of Conformity CE
