SIP-SPEAK/SW

476 974 Ft

SIP-SPEAK/SW

Rendelhető

476 974 Ft

Terméknév:

SIP hangsugázó

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

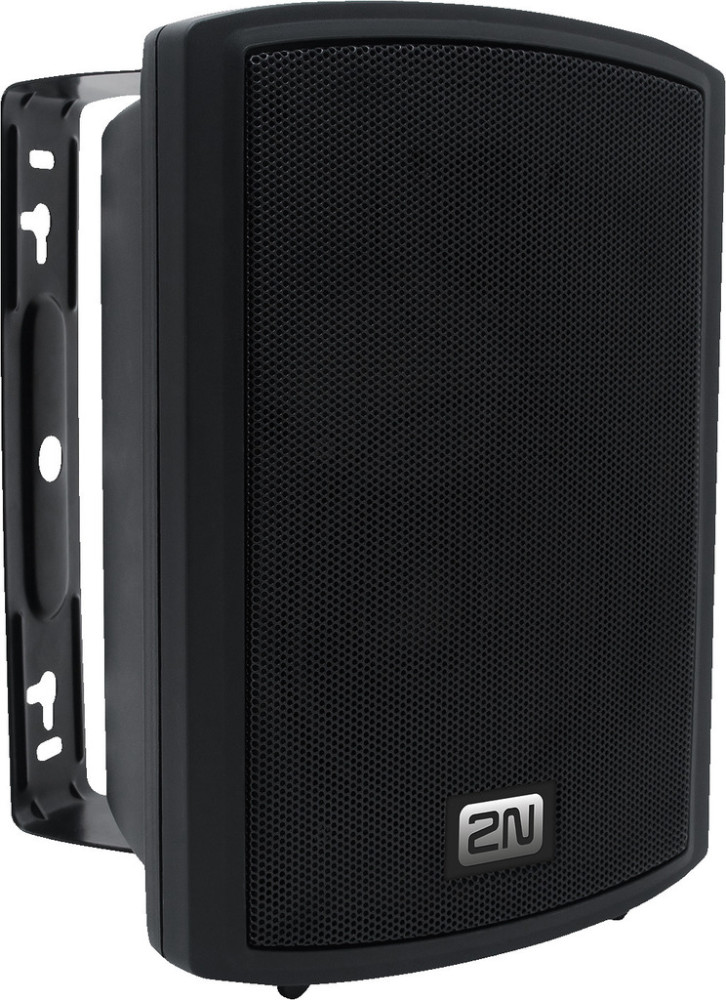

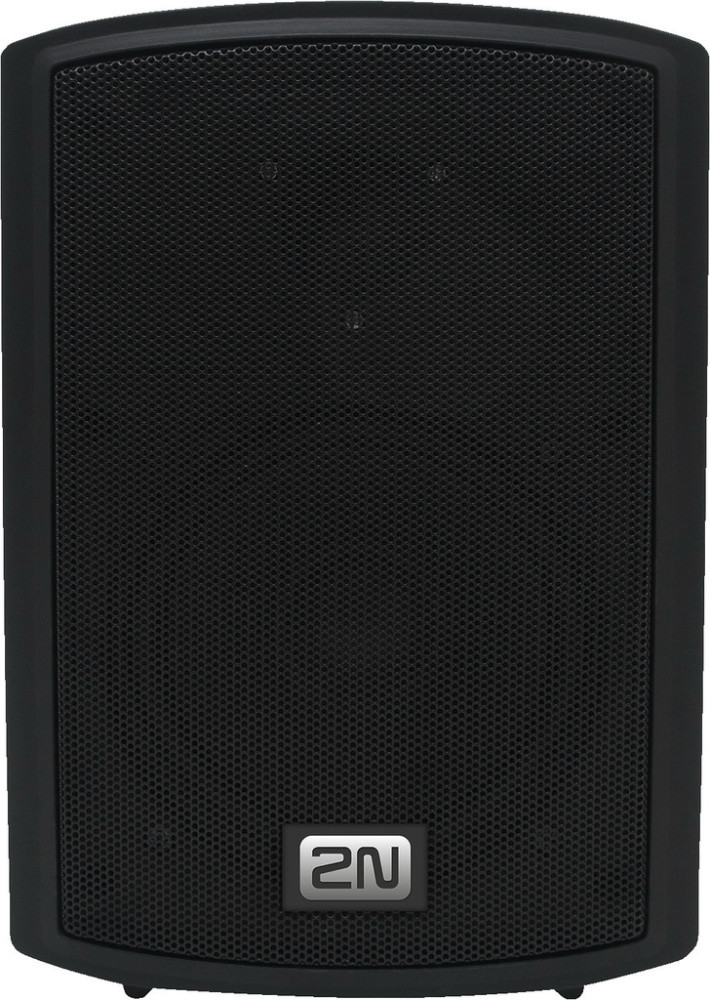

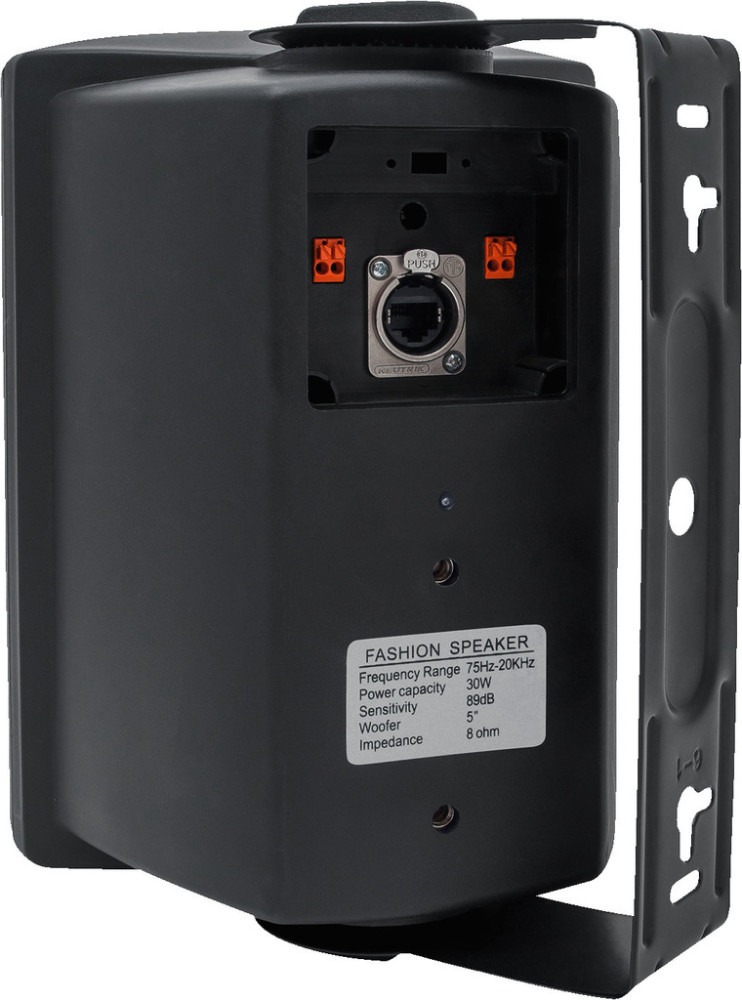

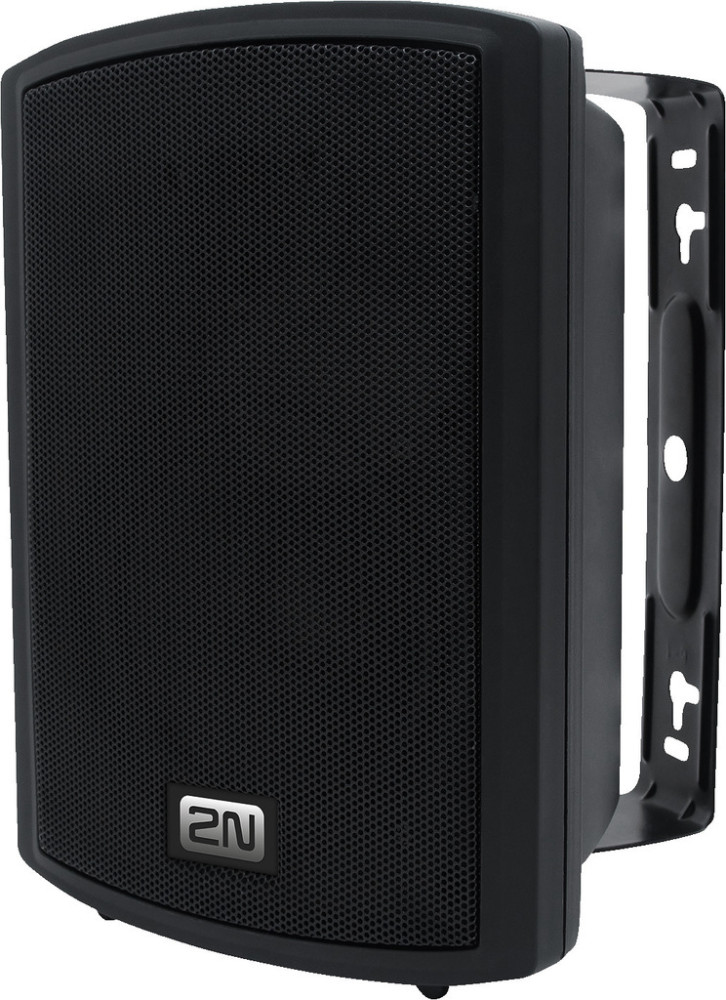

SIP speaker, black, active, PoE

Részletek

SIP Speakers from 2N^®

For playing live messages or scheduled messages. It not only allows you to replay your messages from an IP telephone, you can also play them from your mobile phone or smartphone if a suitable IP control panel is used. Features of a complex audio system with SIP protocol. No further investments required for hardware or software, e.g. a PC.

Active SIP speaker

Black plastic housing
Integrated amplifier
Impedance: 8 Ω with an output power of 8 W (with PoE) or 12 W (with power supply via 12 V power supply)
Supports IP PBX (SIP)
Server-free audio solution, operation also possible without separate server
Easy installation via network cable to an existing PoE switch
Configuration via Web interface or a program
LAN/WAN connection, Ethernet RJ45, 10/100 Mbps
Live messages or scheduled messages
Reserve proxy server in case of control panel failure
Movable mounting bracket for wall mounting
Power supply via PoE (IEEE 802.3af) or external power supply ( DC 12 V/2 A)
Matching power supply is available at option
2N^® Network Scanner app and 2N^® IP Audio Manager are available

Manufacturer information:

Axis Communications AB
Gränden 1
SE-223 69 Lund
Sweden
sales@2n.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Hangszórók száma:

Speaker size:

13 cm (5")

Névleges maximális hangnyomás:

99 dB

Kisimpedanciás:

Mounting device:

movable mounting bracket

Lesugárzási szög, vízszintes:

110°

Lesugárzási szög, függőleges:

90°

Magasság:

250 mm

PoE:

IEEE 802.3af

Radiation angle/beam angle:

H: 110°/V: 90°

Aktív:

Outputs:

SPK out

Other features:

LAN, SIP

Átviteli tartomány:

75-20.000 Hz

Impedancia:

8 Ω

Software, app:

2N^® Network Scanner,

2N^® IP Audio Manager

Housing material:

plastic

Tömeg:

2,3 kg

Bruttó súly:

2,71 kg

Max. teljesítmény:

12 W

Megengedett körny. hőm.:

0-40 °C

Inputs:

RJ45, DC in

Nettó súly:

2,42 kg

Colour:

black

Aktív/passzív:

aktív

Szélesség:

176 mm

Packing dimensions (W x H x L):

0.23 x 0.345 x 0.19 m

Mélység:

143 mm

Transmission technology:

LAN, SIP

LAN:

RJ45, 10/100BASE-TX Auto-MDIX

Power rating (RMS):

8 W (PoE)

12 W (12 V)

App support:

Teljes harmonikus torzítás:

0,05 %

Power supply:

PoE or DC 12 V/2 A

Dimensions:

176 x 250 x 143 mm

Audio Codecs:

G.711 (PCMA, PCMU), G.729 (annex A, B), G.722, L16/16kHz

Packaging dimensions (W x H x L):

0.23 x 0.345 x 0.19 m

EAN code:

8,595,159,508,184
