RDA10

142 875 Ft

ÚJ

RDA10

Name: RDA10
SKU: RDA10
Price: 142875 HUF
Availability: InStock

Németországi raktáron

142 875 Ft

Terméknév:

Dante álmennyezeti hangszóró

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

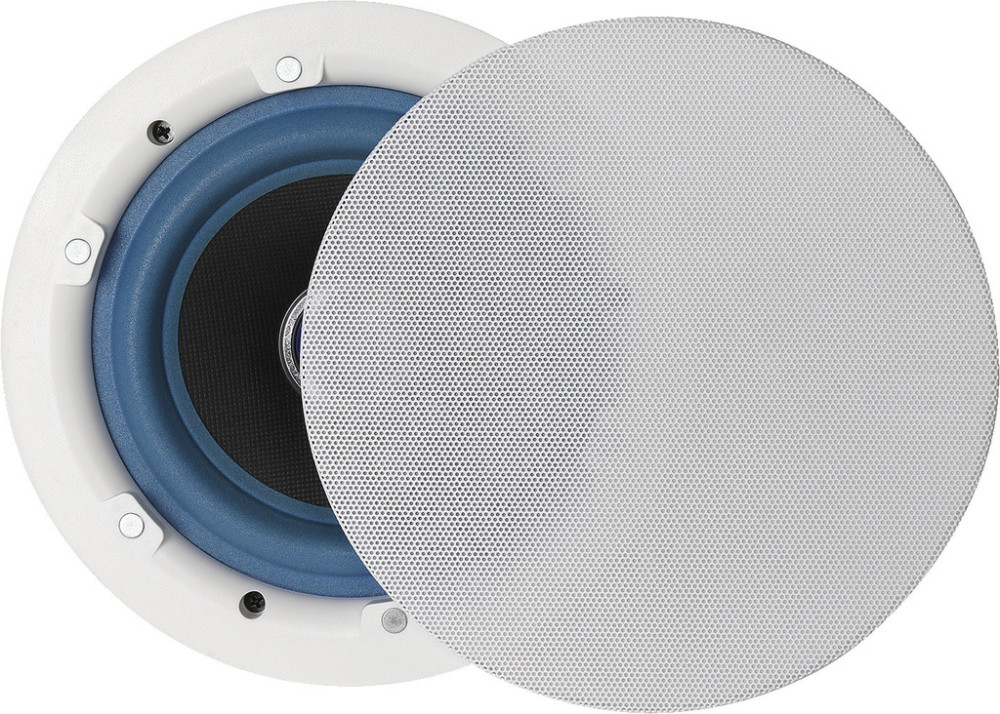

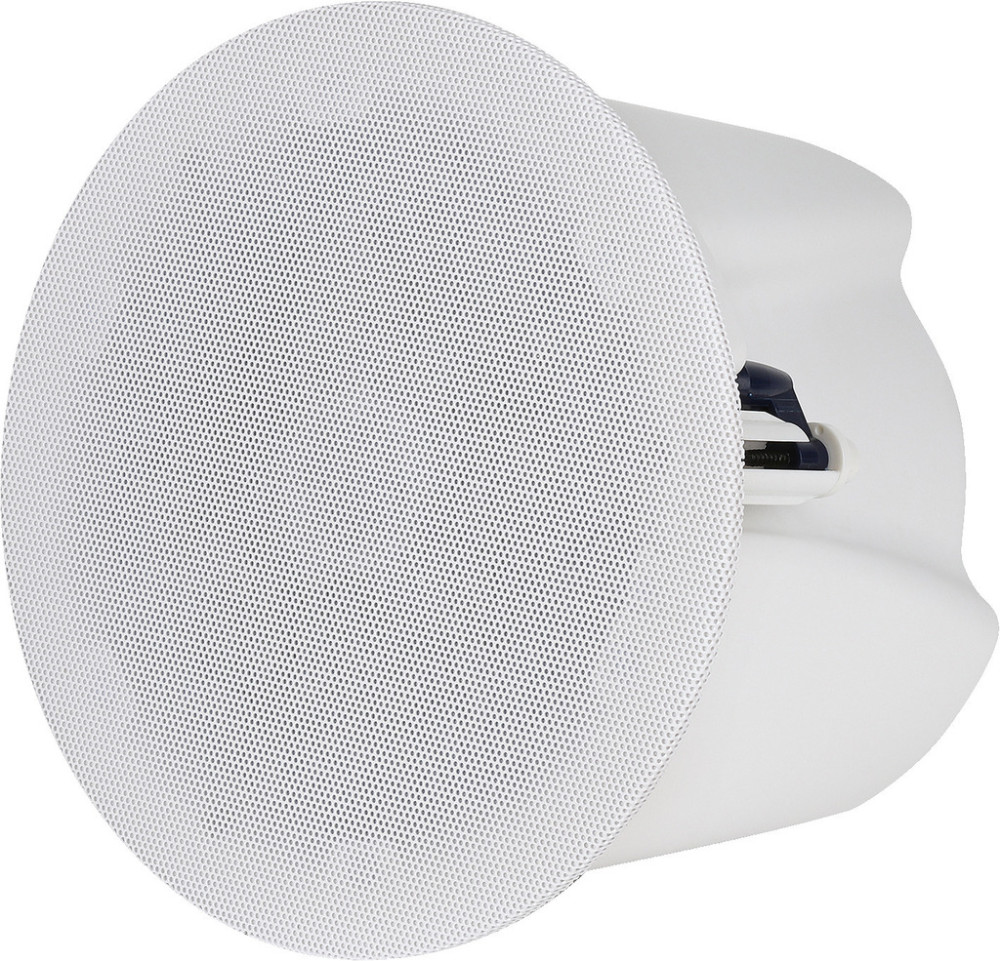

Active 2-way flush-mount ceiling speaker with integrated Dante^® module

Részletek

Active 2-way flush-mount ceiling speaker,

with integrated Dante^® module.

Full range coaxial ceiling speaker
Equipped with standard flex terminals
Frameless construction and slim design
Removable magnetic, lacquered grille for seamlessly covering the entire speaker

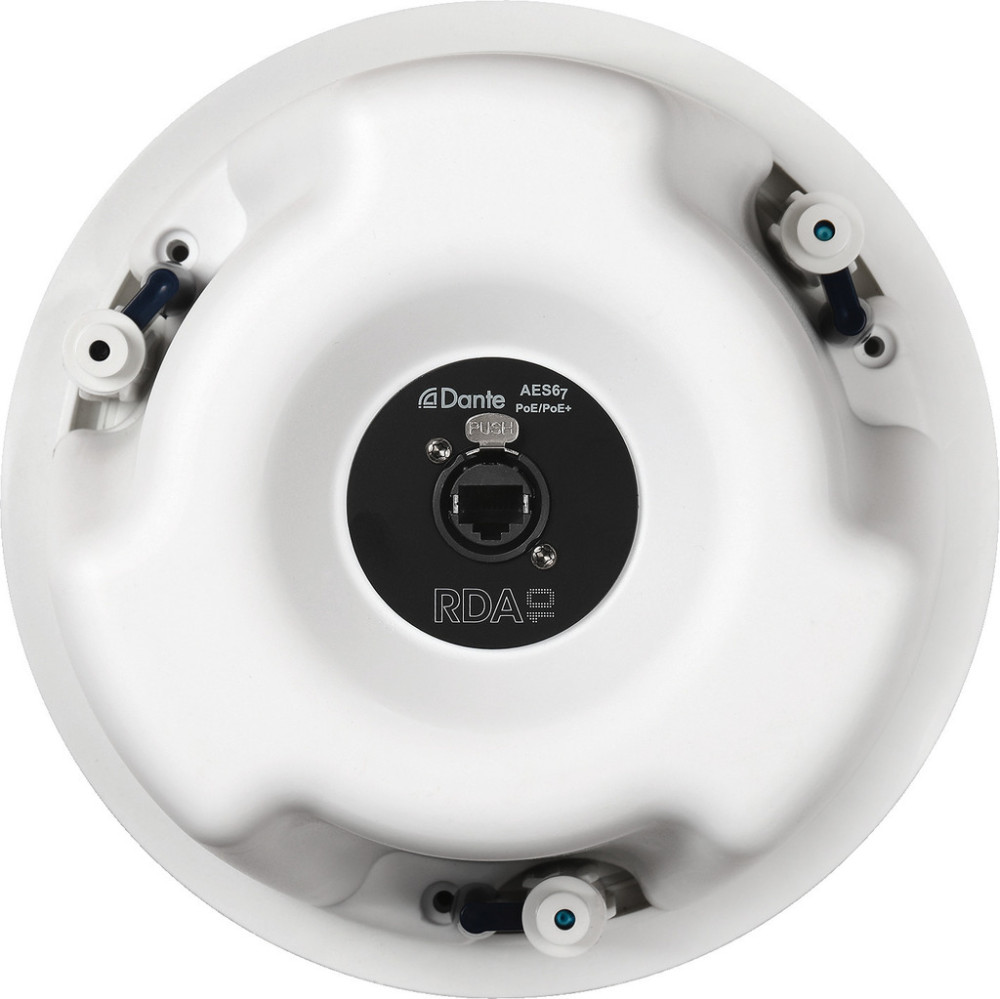

Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
Output power: 10 W (PoE), 20 W (PoE+)
Compatible with all Dante^®/AES67 audio network products
Transmission of data signals via RJ45 port
Supports Relacart speaker management software for easy setup and remote management

System requirements Dante^®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11

The brand Dante^® as well as the Dante^® software which may have been integrated into these products are licenced by Audinate Pty Ltd

Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.

Manufacturer information:

Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Hangszórók száma:

Input signal:

Dante^®

Speaker size:

16 cm (6")

Névleges maximális hangnyomás:

103 dB

Dante®:

Mounting device:

ceiling suspension

Lesugárzási szög, vízszintes:

90°

Lesugárzási szög, függőleges:

90°

Magasság:

Ø 210 mm

Aktív:

Other features:

integr. DSP for tone control via software

Magassugárzó:

1 x 2,5 cm

Átviteli tartomány:

85-17.000 Hz

Housing material:

plastic frame, protective metal grille

Tömeg:

1,5 kg

Bruttó súly:

1,89 kg

Max. teljesítmény:

30 W

Átviteli rendszer:

Dante^®

Inputs:

RJ45

Nettó súly:

1,5 kg

Colour:

white

Aktív/passzív:

aktív

Érzékenység (1W/1m):

90 dB/W/m

Szélesség:

Ø 210 mm

Packing dimensions (W x H x L):

0.232 x 0.178 x 0.232 m

Sugárzási szög:

90°

Mélység:

150 mm

Power rating (RMS):

10 W (PoE), 20 W (PoE+)

Power supply:

37-57 V PoE/PoE+ via RJ45

System:

2-way

Mélyhangszóró:

1 x 16 cm

Dimensions:

Ø 210 mm x 150 mm

Packaging dimensions (W x H x L):

0.232 x 0.178 x 0.232 m

EAN code:

4,007,754,426,694

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity CE
Declaration of Conformity UKCA
