IP audio decoder

The IP-FORMER converts passive speakers into network speakers and thus enables audio streaming via the Internet to existing passive speakers

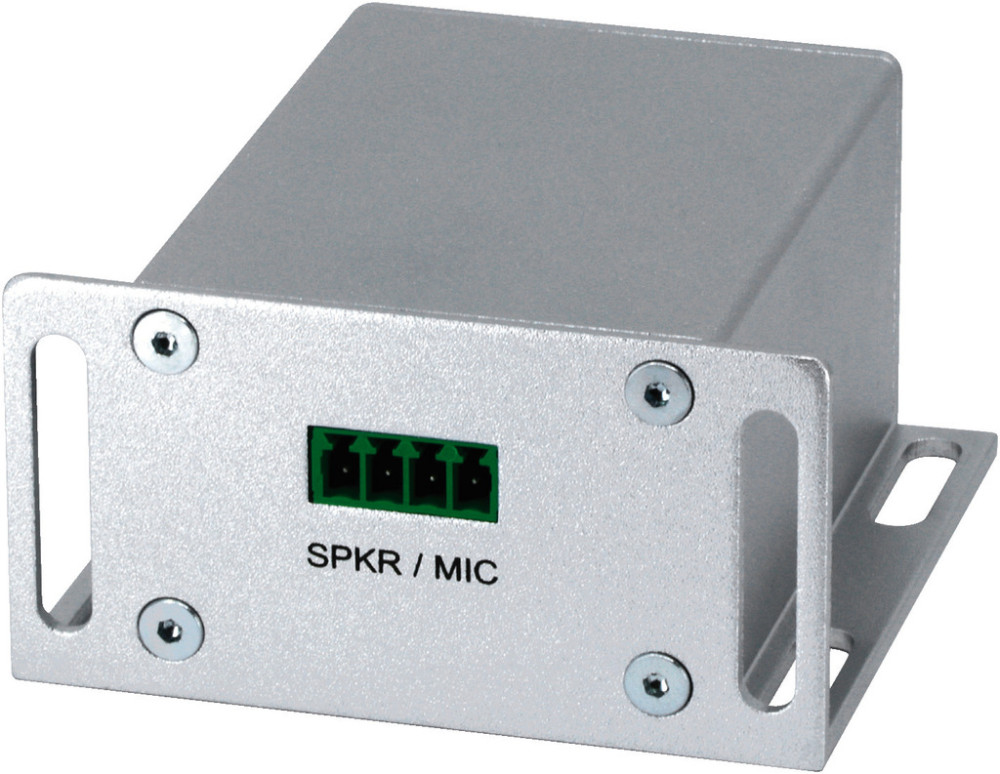

Due to its compact design, the IP-FORMER can be mounted directly to the existing passive speaker by using the transformer bracket. The built-in 8 W class D digital audio amplifier delivers high-quality audio signals to the connected wall speaker, ceiling speaker or desktop speaker (2-8 Ω).
The IP-FORMER is powered by an external Power over Ethernet power supply (PoE, IEEE 802.3af).

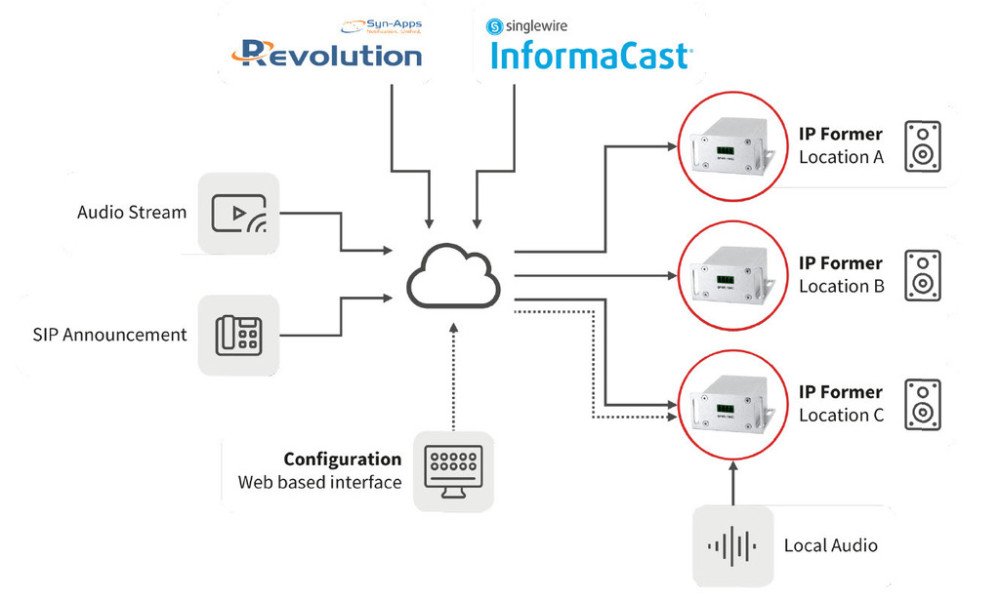

As a decoder, the IP-FORMER enables audio streaming from radio stations, telephones and intercoms, making it suitable for speakers to play background music and for live announcements, e.g. in schools, office buildings, in the retail trade or for announcements based on the SIP protocol (Session Initiation Protocol).

• Programming and management via web browser
• Supports audio formats, e.g. MP3, MPEG-4, linear PCM, G.711, G722, GSM, Opus, etc.

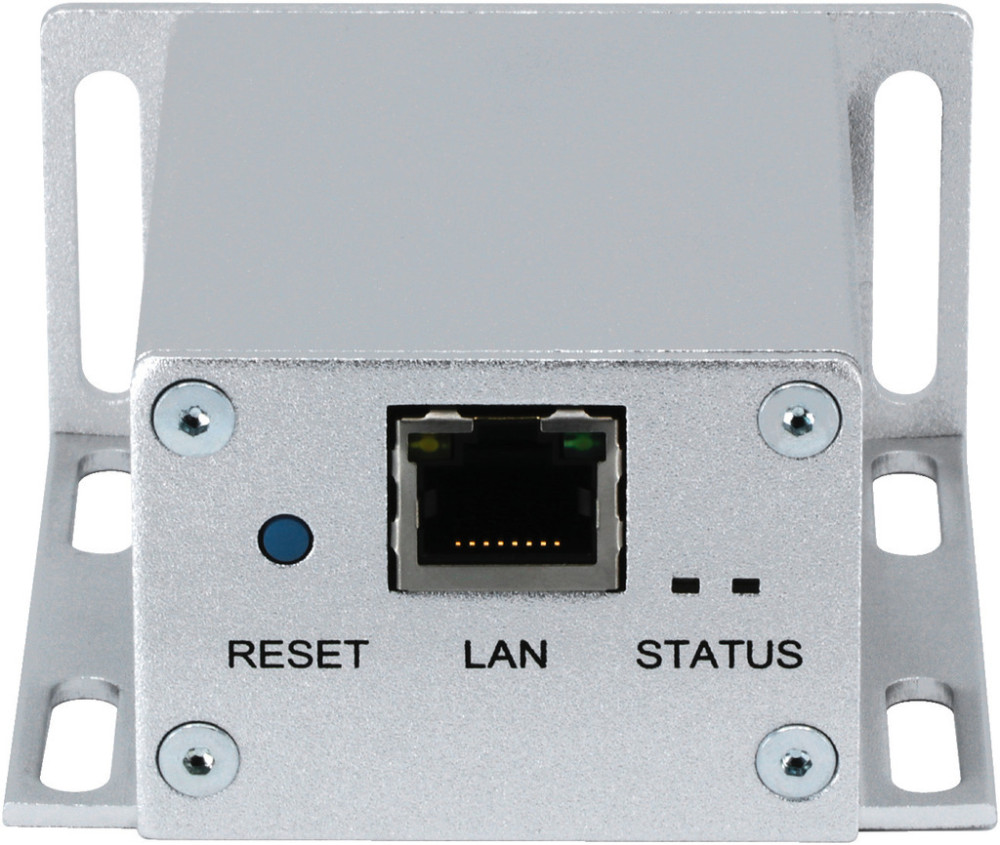

• LAN connection, Ethernet RJ45, 10/100 Mbps

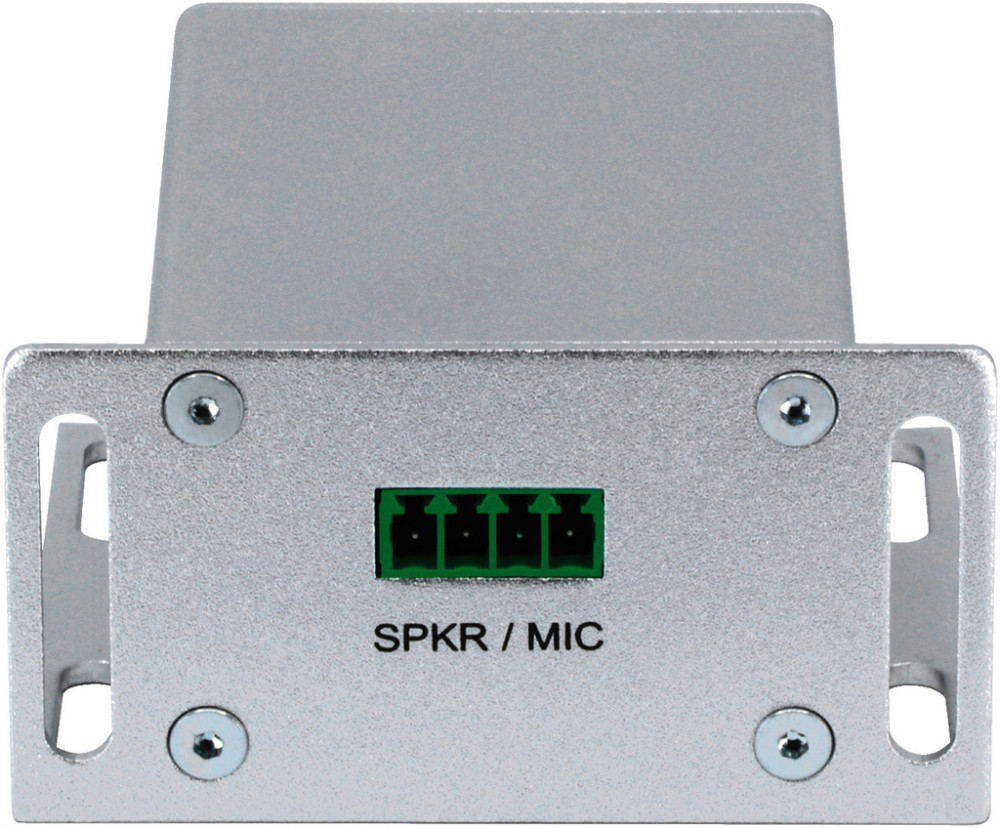

• Screw terminal contacts for speakers and microphone
• Impedance of the connected speaker: 2-8 Ω
• Power supply via PoE (IEEE 802.3af)
• LED status indicator

Manufacturer information:

Barix AG Switzerland
Limmatquai 120
8001 Zürich
Switzerland
support@barix.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Nominal value:

8 W via PoE

PoE:

IEEE 802.3af

Admiss. ambient temp.:

0-50 °C

Connections:

RJ45 (LAN),

screw terminal contacts (speakers, microphone)

Rendelési egység:

1

Tömeg:

172 g

Bruttó súly:

0,182 kg

Nettó súly:

0,1724 kg

Colour:

silver

Description:

IP audio decoder

Packing dimensions (W x H x L):

0.072 x 0.038 x 0.072 m

LAN:

Ethernet RJ45, 10/100 Mbps

Type:

output impedance: 2-8 Ω

Power supply:

PoE, IEEE802.3af via external power supply (e.g. POE-130MID)

Dimensions:

52 x 66 x 40 mm

Packaging dimensions (W x H x L):

0.072 x 0.038 x 0.072 m

EAN code:

7,640,113,552,992

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page
Technical data sheet
Instruction manual
