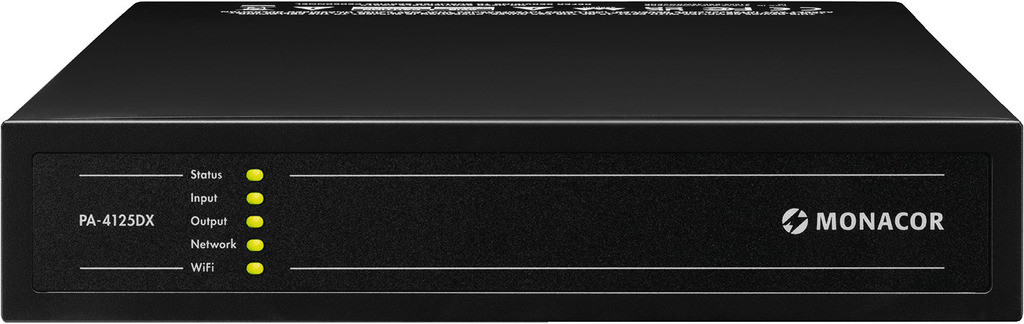

PA-4125DX

384 175 Ft

ÚJ

PA-4125DX

Name: PA-4125DX
SKU: PA-4125DX
Price: 384175 HUF
Availability: InStock

Németországi raktáron

384 175 Ft

Terméknév:

4 zónás többfunkciós keverőerősítő

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

4-zone multifunctional amplifier, 4 x 125 W, 2 x 250 W

Részletek

4-zone multifunctional amplifier,

class D technology with DSP and professional features for general multi-room PA applications.
Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
100 V or 4/8 Ω operation
4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO interface for remote volume control and standby
Network connection via LAN or WLAN

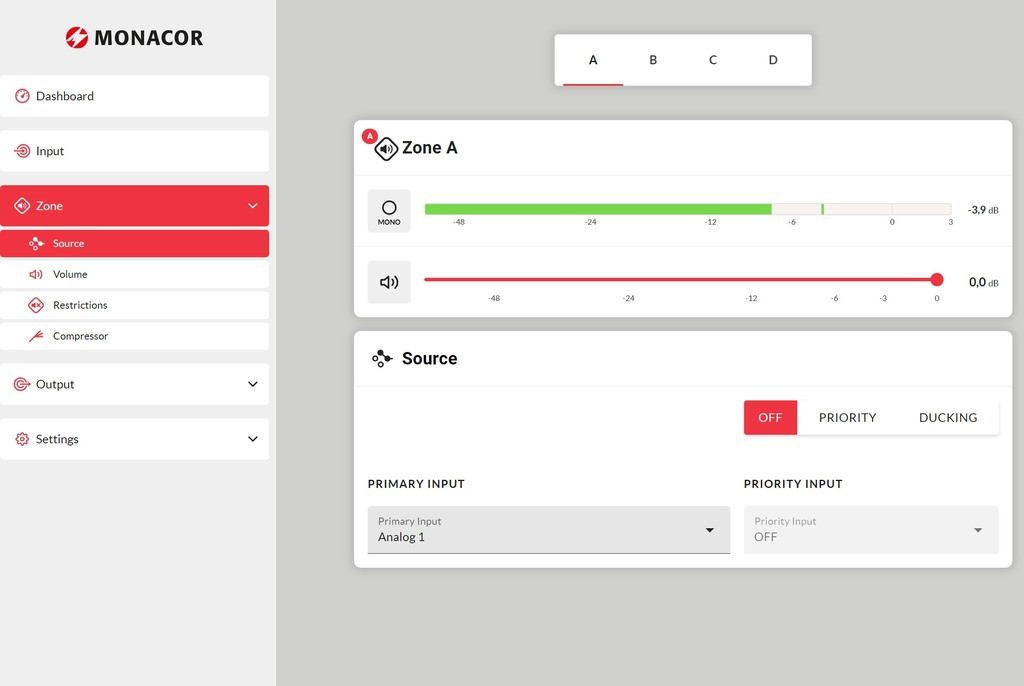

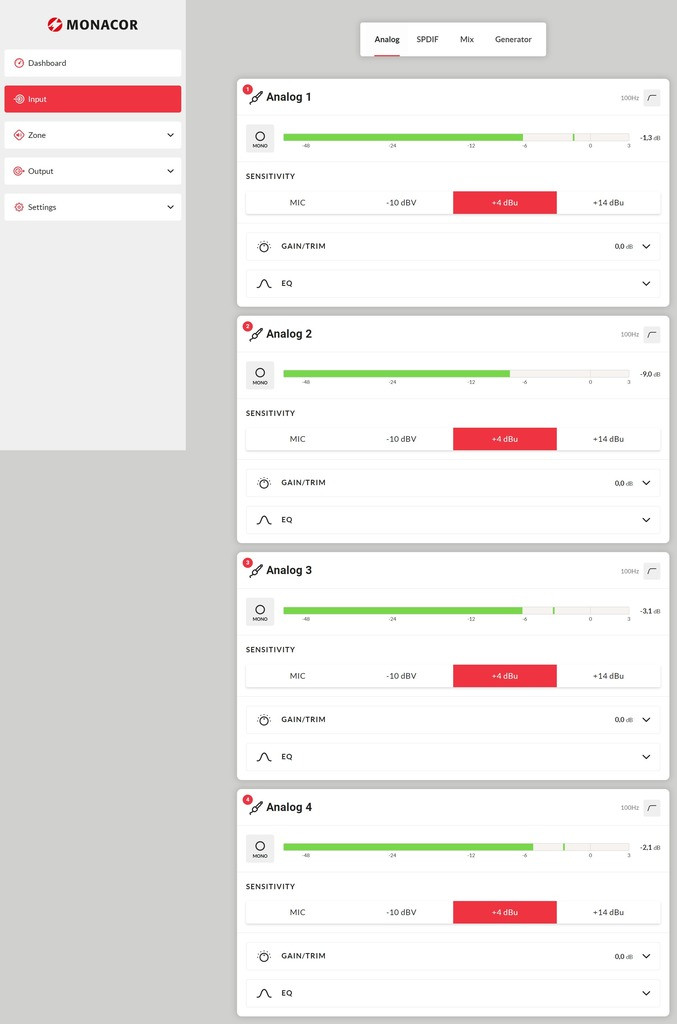

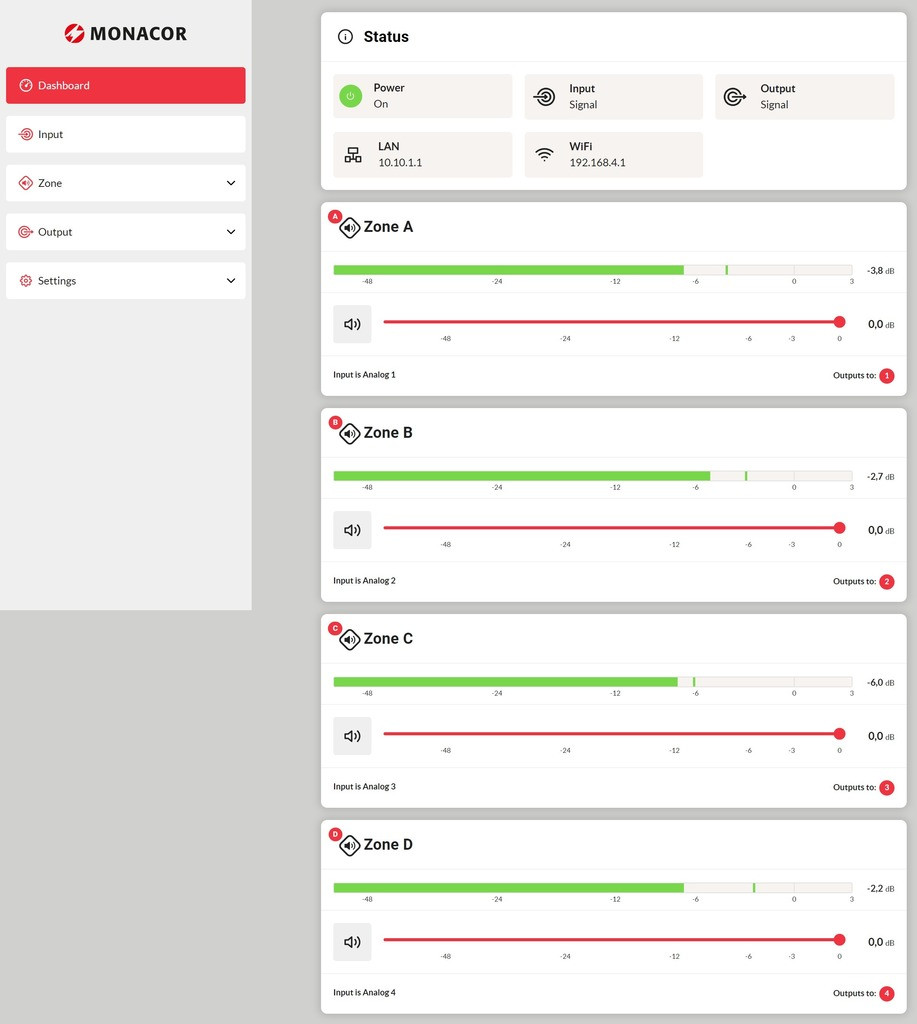

Convenient operation and configuration via user interface HTML5

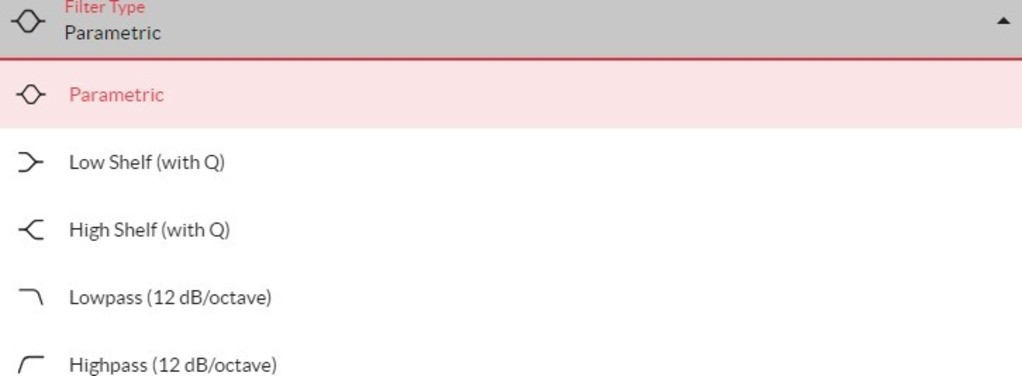

High-pass/low-pass filter with various filters

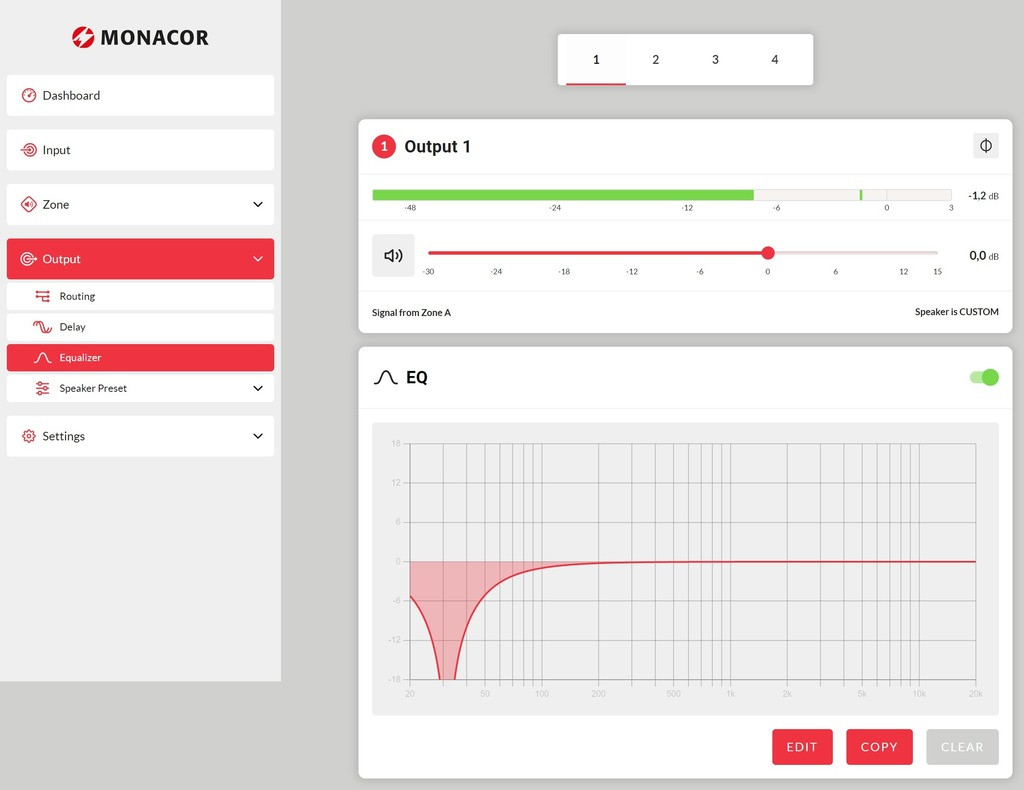

Parametric equalizer
Output with separate FIR filters
Speaker matching: 10 ms
Switchable output phase
Adjustable compressor/limiter
Adjustable delay
Mix inputs
Talkover with priority routing
Built-in sine wave noise generator
Parametric 5-band equalizer for input
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

Note: after initially switching on the device, firmware must be updated to minimum required version 1.6.4.

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Mains frequency:

50-60 Hz

Kisimpedanciás:

Magasság:

44 mm

Jel/zaj-viszony:

> 106 dB

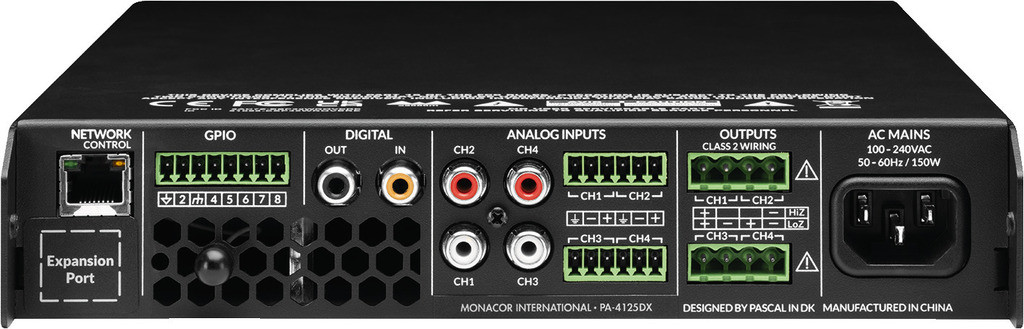

Connections:

4 x RCA line

plug-in screw terminal (mic/line)

2 x RCA (digital in/out)

plug-in screw terminal GPIO

plug-in screw terminal speakers

1 x RJ45 network connection

DSP:

Névleges teljesítmény:

500 W

Névleges teljesítmény 100 V-on:

2 x 250 W

Névleges teljesítmény 4Ω-on:

4 x 125 W

Névleges teljesítmény 8Ω-on:

4 x 125 W

Tömeg:

1,95 kg

Bruttó súly:

2,8 kg

Max. teljesítmény:

500 W

Teljesítményfelvétel készenléti állapotban:

< 0,5 W

Indoors:

100 V:

Megengedett körny. hőm.:

0-40 °C

Inputs:

1.2 V, bal. (line), 1.9 mV, bal. (mic)

Tápellátás:

- 100-240 V

Nettó súly:

2,16 kg

Limiter:

igen

Equalizer midrange:

via DSP

Csatornák:

Szélesség:

220 mm

Mélység:

320 mm

Teljes harmonikus torzítás:

< 0,05 %

Equalizer bass:

via DSP

WLAN:

Power supply:

˜ 100-240 V/50-60 Hz/150 W

Magasság [U]:

Equalizer treble:

via DSP

Zónák:

Power consumption, operation:

150 W, 1/8 output power

Packaging dimensions (W x H x L):

0.3 x 0.09 x 0.5 m

EAN code:

4,007,754,424,577

TTeljesítményfelvétel készenléti állapotban:

< 0,5 W
