SA-200

87 135 Ft

SA-200

Name: SA-200
SKU: SA-200
Price: 87135 HUF
Availability: InStock

Németországi raktáron

87 135 Ft

Terméknév:

Kompakt sztereó erősítő

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

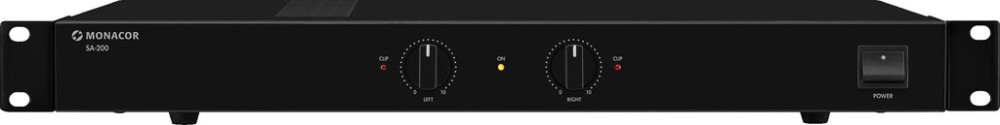

Universal stereo amplifier, 100 W

Részletek

Universal stereo amplifier, 100 W

Silent operation due to fanless cooling concept
Stereo line input
Speaker connection via terminal strip
LEDs for indicating overload (clip)
Volume control
482 mm (19") rack installation, 1 RU, with supplied mounting brackets

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Adatok

Ventillátor nélküli:

Kisimpedanciás:

Hálózati frekvencia:

50 Hz

Magasság:

55 mm

Jel/zaj-viszony:

> 83 dB

Átviteli tartomány:

20-20.000 Hz

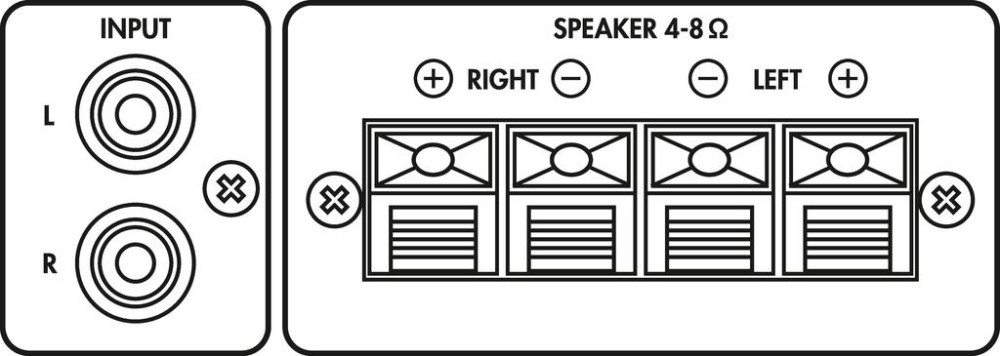

Connections:

1 x RCA L/R (line),

4 x spring-load. speaker term.(speakers)

Névleges teljesítmény:

100 W

Névleges teljesítmény 4Ω-on:

2 x 50 W

Névleges teljesítmény 8Ω-on:

2 x 30 W

Tömeg:

4,4 kg

Bruttó súly:

4,89 kg

Max. teljesítmény:

2 x 100 W

Megengedett körny. hőm.:

0-40 °C

Inputs:

420 mV/6 kΩ

Üzemi áramfelvétel:

210 VA

Tápellátás:

- 230 V

Nettó súly:

4,44 kg

Csatornák:

Szélesség:

431 mm

Packing dimensions (W x H x L):

0.335 x 0.11 x 0.46 m

Mélység:

255 mm

Power supply:

˜ 230 V/50 Hz/210 VA

Magasság [U]:

Packaging dimensions (W x H x L):

0.335 x 0.11 x 0.46 m

EAN code:

4,007,754,249,903

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity CE
Declaration of Conformity UKCA
Instruction manual
