SA-40BT

52 705 Ft

ÚJ

SA-40BT

Name: SA-40BT
SKU: SA-40BT
Price: 52705 HUF
Availability: InStock

Németországi raktáron

52 705 Ft

Terméknév:

Mini sztereó erősítő 2 x 20 W

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 427 0396

Üzenetet írok!

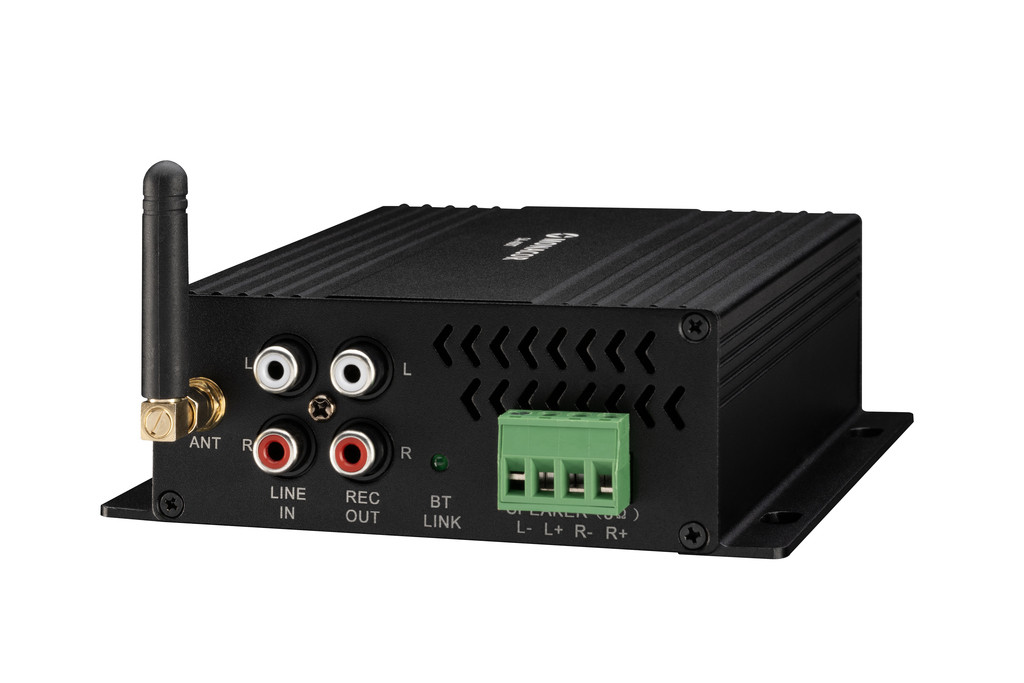

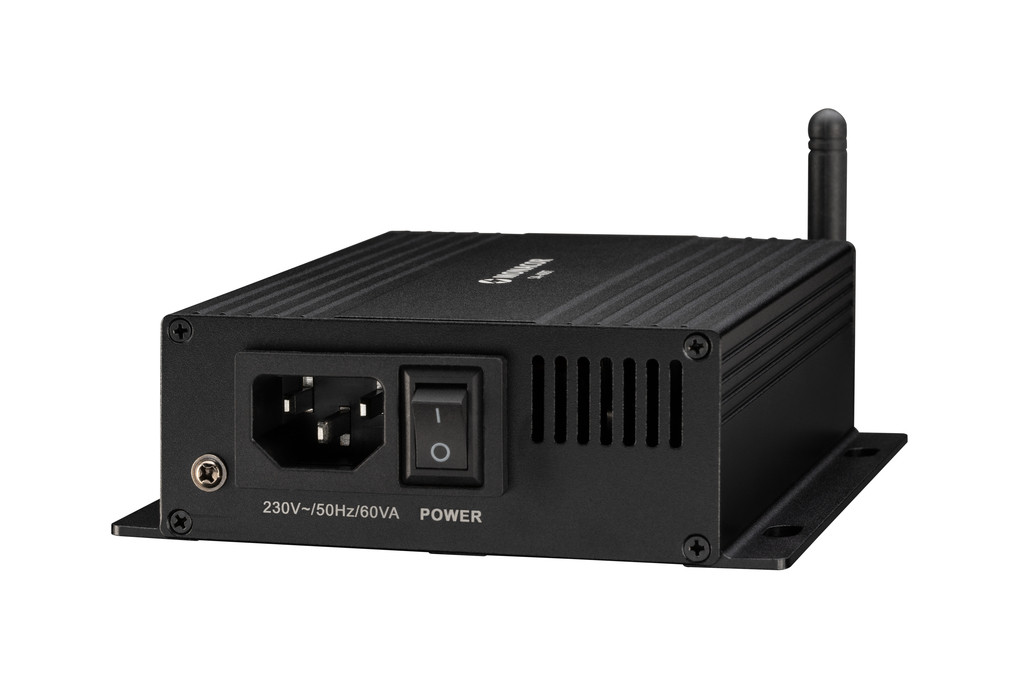

Mini stereo amplifier, 2 x 20 W

Részletek

Mini stereo amplifier, 2 x 20 W,

with Bluetooth interface.

Silent operation due to fanless cooling concept
Class D amplifier
Connection modes: line and Bluetooth
1 stereo line input via RCA jacks L/R
1 stereo line output via RCA jacks L/R
Robust metal housing
Screw holes for mounting are available
Speaker connection via screw terminal

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Adatok

Kisimpedanciás:

Hálózati frekvencia:

50 Hz

Magasság:

42 mm

Jel/zaj-viszony:

> 82 dB

Átviteli tartomány:

20-20.000 Hz

Connections:

1 x RCA L/R (line in),

1 x RCA L/R (line out),

4 x spring-load. speaker term. (speakers)

Névleges teljesítmény:

40 W

Névleges teljesítmény 8Ω-on:

2 x 20 W

Tömeg:

366 g

Bruttó súly:

0,652 kg

Max. teljesítmény:

2 x 20 W

Megengedett körny. hőm.:

0-40 °C

Bluetooth:

Áthallási csillapítás:

63 dB

Inputs:

995 mV/50 kΩ (line in)

Üzemi áramfelvétel:

60 VA

Tápellátás:

- 230 V

Nettó súly:

0,380 kg

Csatornák:

Szélesség:

125 mm

Mélység:

155 mm

Teljes harmonikus torzítás:

< 0,3 %

Power supply:

˜230 V/50 Hz/60 VA

Packaging dimensions (W x H x L):

0.155 x 0.07 x 0.265 m

EAN code:

4,007,754,429,374
