PA-704

85 306 Ft

PA-704

Name: PA-704
SKU: PA-704
Price: 85306 HUF
Availability: InStock

Németországi raktáron

85 306 Ft

Terméknév:

PA Erősítő

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

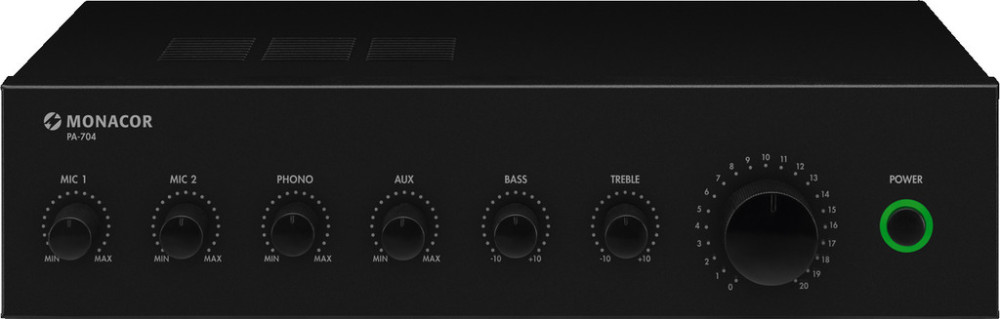

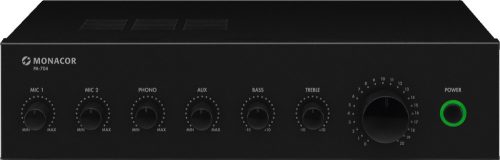

Mono PA mixing amplifier

Részletek

Mono PA mixing amplifier

1 x 35 W
2 low-impedance microphone inputs
1 aux input, 1 phono input
Speaker outputs via screw terminal contacts
Input and output level controls
2-way tone control for the output
Connection for a microphone talk button to switch off the other sources during announcements
Mains operation and 12-24 V emergency power operation

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Kisimpedanciás:

Hálózati frekvencia:

50 Hz

Magasság:

85 mm

Jel/zaj-viszony:

> 55 dB

Átviteli tartomány:

100-18.000 Hz

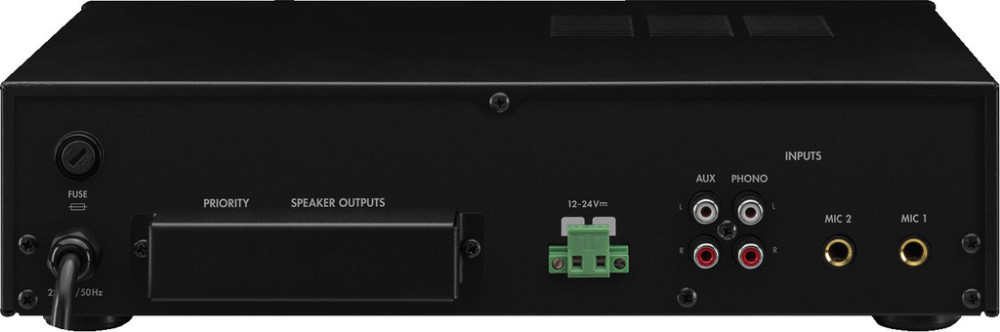

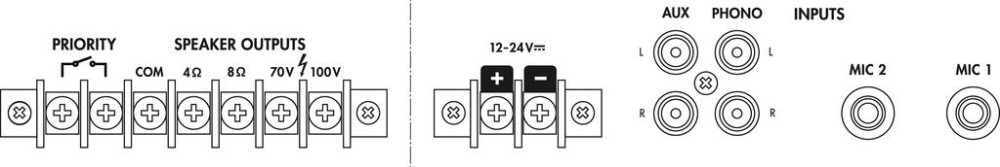

Connections:

2 x 6.3 mm jack (mic),

1 x RCA L/R (aux),

1 x RCA L/R (phono),

screw contacts (speakers)

Névleges teljesítmény:

35 W

Névleges teljesítmény 100 V-on:

35 W

Névleges teljesítmény 4Ω-on:

35 W

Névleges teljesítmény 8Ω-on:

35 W

Tömeg:

4,97 kg

Bruttó súly:

5,33 kg

Max. teljesítmény:

70 W

100 V:

Megengedett körny. hőm.:

0-40 °C

Tápellátás (lehetséges alternatíva):

DC 2,5 A

Inputs:

5 mV (mic),

210 mV (aux),

5 mV (phono)

Üzemi áramfelvétel:

100 VA

Tápellátás:

- 230 V

Nettó súly:

4,97 kg

Csatornák:

Üzemi feszültség (lehetséges alternatíva):

DC 12-24 V

Szélesség:

320 mm

Packing dimensions (W x H x L):

0.37 x 0.14 x 0.28 m

Mélység:

230 mm

Teljes harmonikus torzítás:

< 1 %

Equalizer bass:

±10 dB/150 Hz

Power supply:

˜ 230 V/50 Hz/100 VA

DC 12-24 V/2.5 A

Equalizer treble:

±10 dB/6 kHz

Packaging dimensions (W x H x L):

0.37 x 0.14 x 0.28 m

EAN code:

4,007,754,274,240

Power rating at 70 V:

35 W

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Declaration of Conformity CE
Instruction manual
