PA-6020Z

684 276 Ft

PA-6020Z

Name: PA-6020Z
SKU: PA-6020Z
Price: 684276 HUF
Availability: InStock

Németországi raktáron

684 276 Ft

Terméknév:

PA Erősítő

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

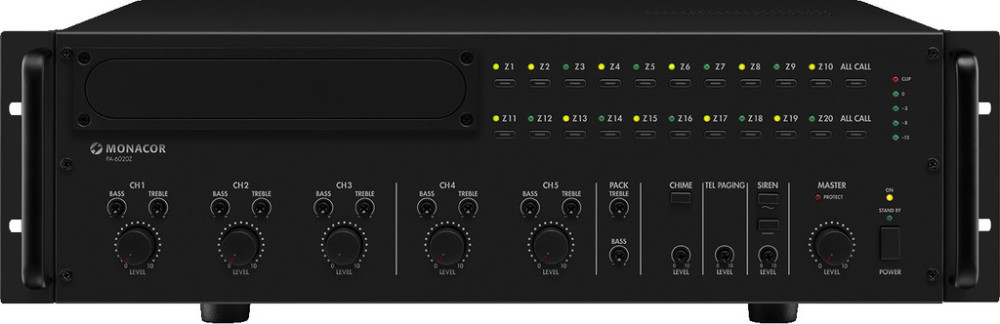

20-zone mono PA mixing amplifier

Részletek

20-zone mono PA mixing amplifier

1 x 600 W
20 zones, can be controlled individually
3 inputs microphone/line via comb. jacks
2 inputs stereo line via RCA jacks
Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
Insertions for various functions are available at option
15 V phantom power for electret microphones
Connection for up to 32 zone paging microphones PA-2400RC
Connection for up to 3 push-to-talk microphones PA-4300PTT
Alarm announcement with insertion PA-1120DMT (available at option)
Mains operation and 24 V emergency power operation
Removable mounting brackets

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Hálózati frekvencia:

50 Hz

Magasság:

133 mm

Átviteli tartomány:

55-16.000 Hz

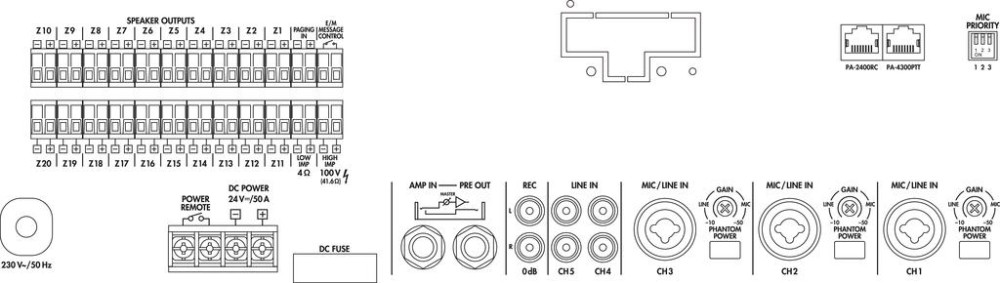

Connections:

3 x combo 6.3 mm/XLR (mic/line),

2 x RCA L/R (line),

1 x 6.3 mm jack (preamplfier input),

1 x RJ45 (push-to-talk mic),

1 x RJ45 (zone paging mic),

1 x RCA L/R (record output),

1 x 6.3 mm jack (preamplifier output),

screw contacts (chime button),

screw contacts (speakers)

Névleges teljesítmény:

600 W

Névleges teljesítmény 100 V-on:

600 W

Névleges teljesítmény 4Ω-on:

600 W

Tömeg:

21 kg

Bruttó súly:

22,9 kg

Max. teljesítmény:

600 W

Megengedett körny. hőm.:

0-40 °C

Tápellátás (lehetséges alternatíva):

DC 50 A

Inputs:

2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3),

0.3 V/15 kΩ (line 4-5),

0.775 V/100 kΩ (preamplifier)

Üzemi áramfelvétel:

1.700 VA

Tápellátás:

- 230 V

Fantomtáp:

15 V

Nettó súly:

21 kg

Csatornák:

Üzemi feszültség (lehetséges alternatíva):

DC 24 V

Szélesség:

482 mm

Packing dimensions (W x H x L):

0.54 x 0.21 x 0.47 m

Mélység:

352 mm

Rack units, RU:

Teljes harmonikus torzítás:

< 1 %

Equalizer bass:

±10 dB/100 Hz

S/N ratio:

> 70 dB (mic),

> 80 dB (line)

Power supply:

˜ 230 V/50 Hz/1,700 VA,

DC 24 V/50 A

Equalizer treble:

±10 dB/10 kHz

Zónák:

Packaging dimensions (W x H x L):

0.54 x 0.21 x 0.47 m

EAN code:

4,007,754,275,599
