PA-M412

688 746 Ft

PA-M412

Name: PA-M412
SKU: PA-M412
Price: 688746 HUF
Availability: InStock

Németországi raktáron

688 746 Ft

Terméknév:

PA erősítő

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

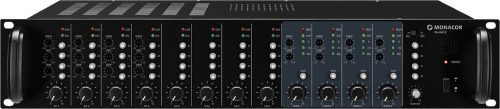

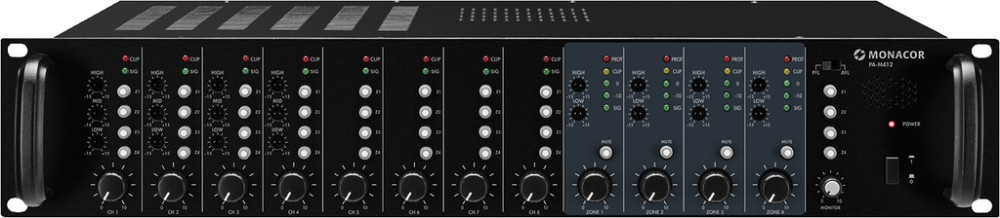

4-zónás PA mátrix keverőerősítő

Részletek

4-zone PA matrix mixing amplifier

120 W per zone
4 zones, can be controlled individually with 2-way tone control
Class D concept with a high efficiency to cut energy costs
4 adjustable mic/line inputs with 3-way equalizer and 24 V phantom power, to be activated as required
4 adjustable line inputs
Mute function for muting individual zones
Connection for external mute switch (all zones simultaneously)
Talkover (channel 1)
Adjustable monitor function
1 connection for zone paging microphone PA-M4RC
4 connections for wall module PA-M1WP
482 mm (19") rack installation

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Hálózati frekvencia:

50 Hz

Magasság:

88 mm

Jel/zaj-viszony:

> 70 dB

Átviteli tartomány:

20-20.000 Hz

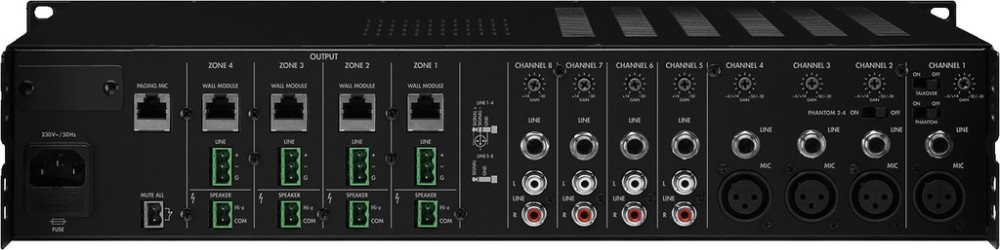

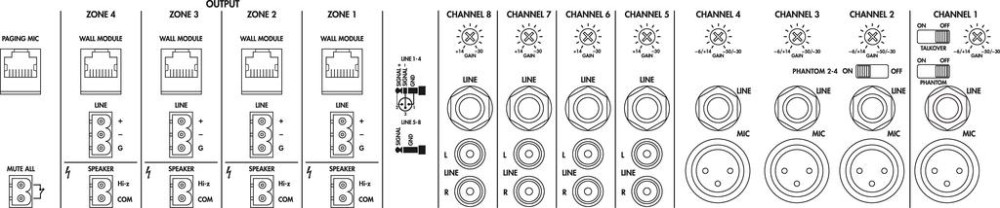

Connections:

4 x XLR, bal. (mic 1-4),

4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8),

1 x RJ45 (push-to-talk microphone),

4 x RJ45 (remote in),

screw terminal (speakers)

Névleges teljesítmény:

4 x 120 W

Névleges teljesítmény 100 V-on:

4 x 120 W

Tömeg:

6,2 kg

Bruttó súly:

7,37 kg

Max. teljesítmény:

4 x 170 W

100 V:

Megengedett körny. hőm.:

0-40 °C

Inputs:

2.5 mV/20 kΩ (mic),

2 V/20 kΩ (line)

Üzemi áramfelvétel:

860 VA

Tápellátás:

- 230 V

Fantomtáp:

24 V

Nettó súly:

6,21 kg

Equalizer midrange:

±12 dB/2.5 kHz (channels 1-4)

Csatornák:

Szélesség:

482 mm

Packing dimensions (W x H x L):

0.4 x 0.53 x 0.17 m

Mélység:

320 mm

Teljes harmonikus torzítás:

< 0,1 %

Equalizer bass:

±12 dB/80 Hz (channels 1-4)

±15 dB/80 Hz (zones 1-4)

Power supply:

˜ 230 V/50 Hz/860 VA

Magasság [U]:

Equalizer treble:

±12 dB/12.5 kHz (channels 1-4)

±15 dB/12 kHz (zones 1-4)

Zónák:

Packaging dimensions (W x H x L):

0.4 x 0.53 x 0.17 m

EAN code:

4,007,754,273,373

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity CE
Declaration of Conformity UKCA
Catalog page
