ATT-250H/WS

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

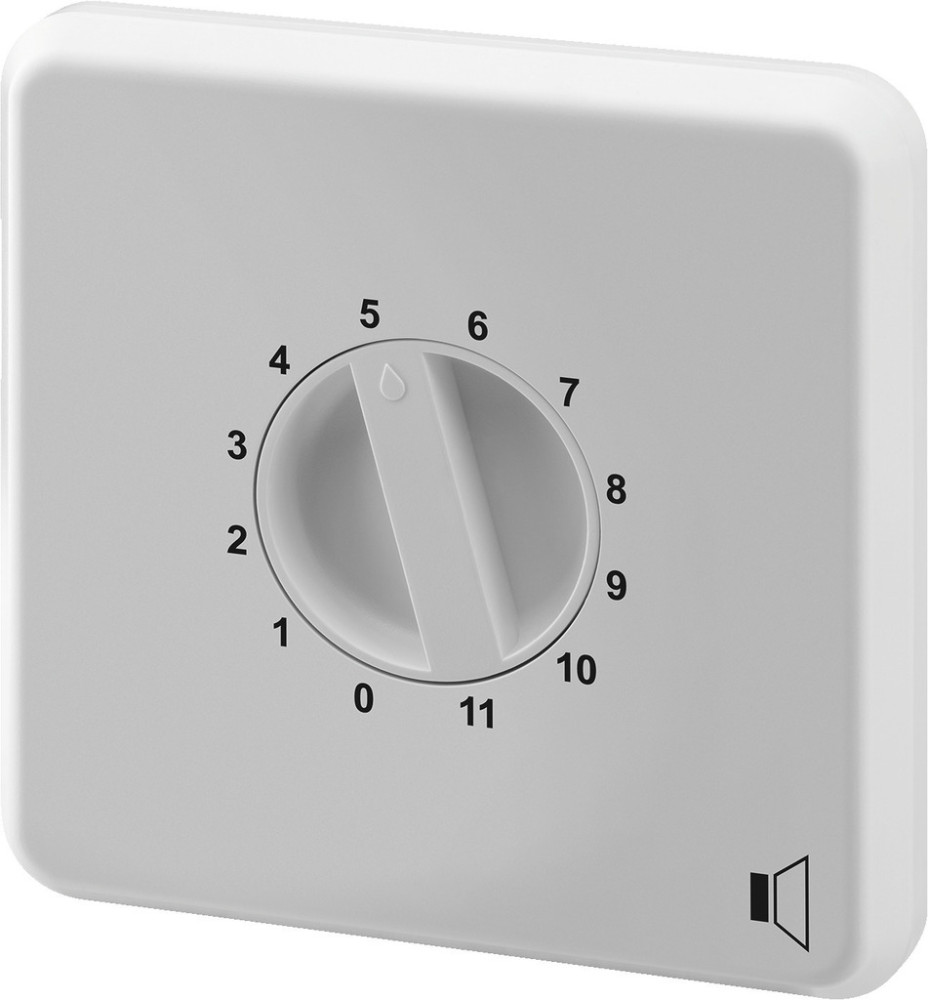

Wall-mounted PA volume control

• Power rating: 50 W
• Recessed control to prevent unintentional readjustment
• Attenuation in 11 steps and OFF

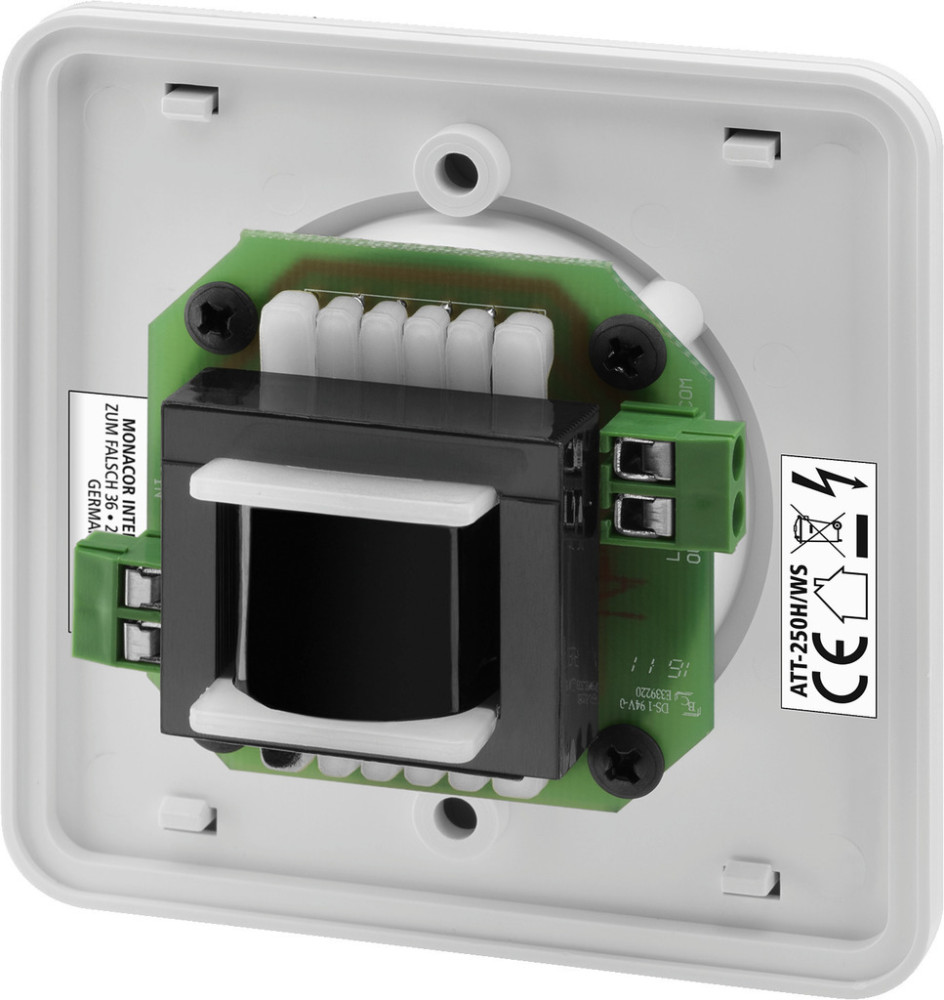

• Audio transformer for 100 V transmission technology
• White plastic front panel (removable) and knob
• Flush mounting in standard hollow wall boxes
• Surface mounting with matching housing ATT-200, available at option

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Beépítési mélység:

42 mm

Surface-mounted housing:

ATT-200

Átviteli tartomány:

50-18.000 Hz

Névleges teljesítmény:

50 W

Tömeg:

257 g

Priority facility:

no

Nettó súly:

0,257 kg

Description:

wall-mounted PA volume control

Dimensions:

85 x 85 x 50 mm

EAN code:

4,007,754,255,645

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity UKCA
Catalog page
Declaration of Conformity CE
