ATT-3100PEU

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

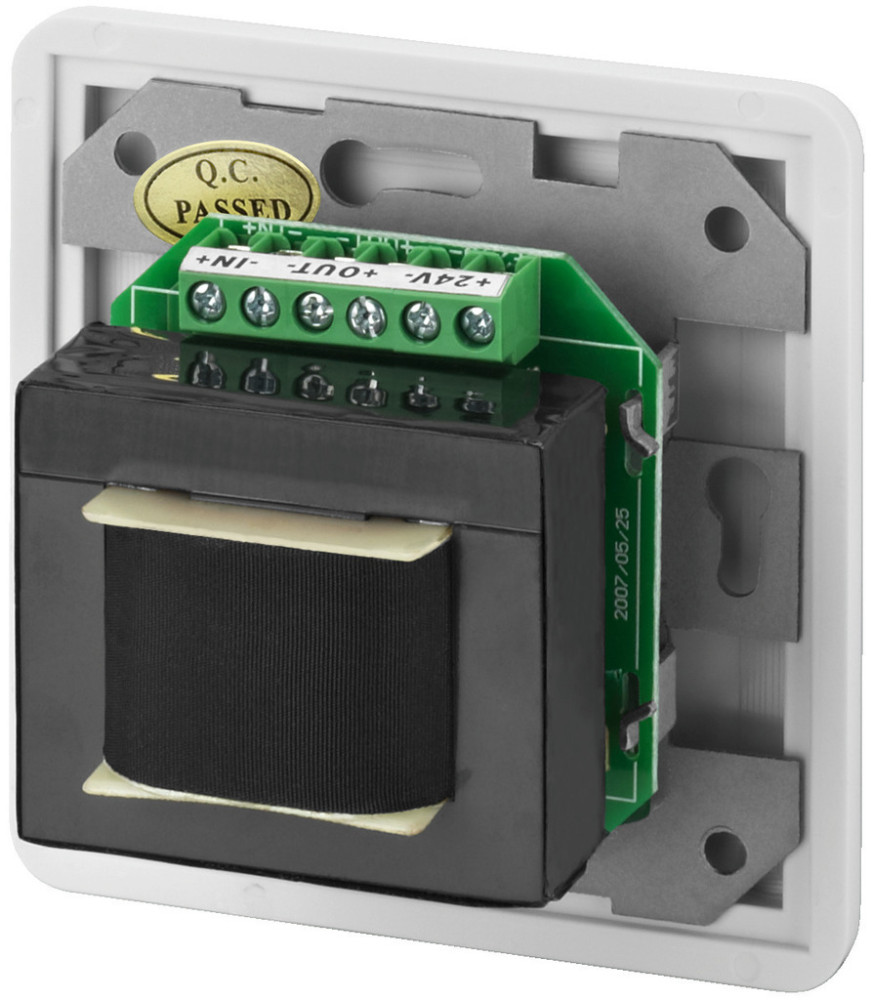

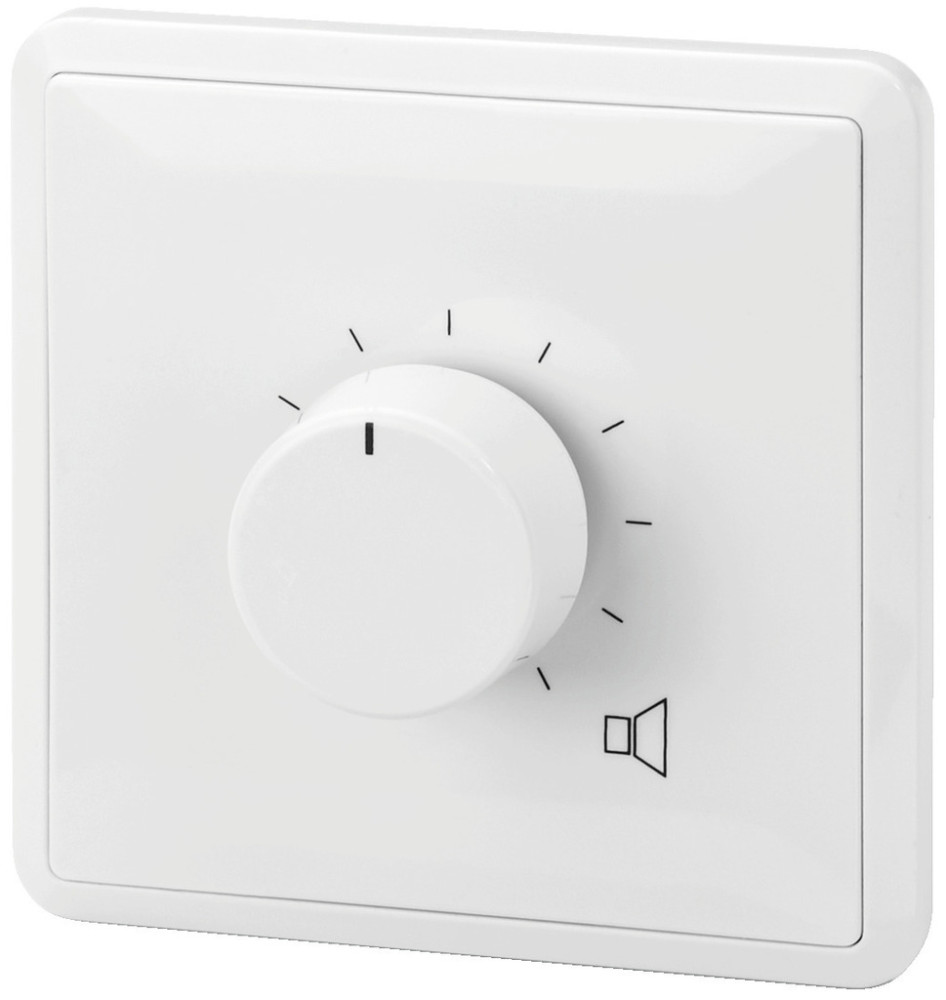

Wall-mounted PA volume control with 24 V emergency priority relay

• Power rating: 100 W
• Attenuation in 10 steps, position 0 is OFF
• For 100 V transmission technology
• Snow-white plastic front panel and knob
• Surface mounting with matching housing ATT-300, available at option
• Plug-in screw terminal

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Beépítési mélység:

45 mm

Méretek:

80x80x67mm

Átviteli tartomány:

50-18.000 Hz

Névleges teljesítmény:

100 W

Tömeg:

335 g

Nettó súly:

0,335 kg

Description:

wall-mounted PA volume control

Hozzávaló ház falra szereléshez:

ATT-300

Prioritás funkció:

van

EAN code:

4,007,754,205,619

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity UKCA
Declaration of Conformity CE
Catalog page
