ATT-524PEU

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

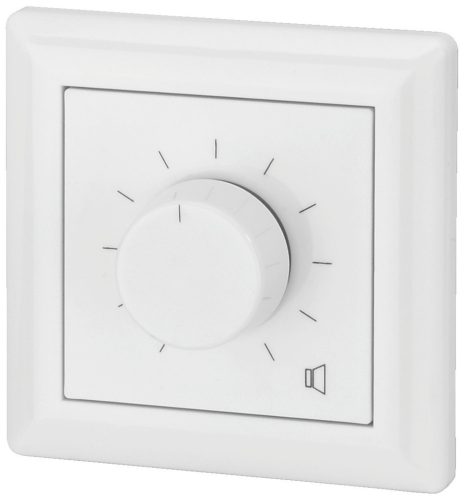

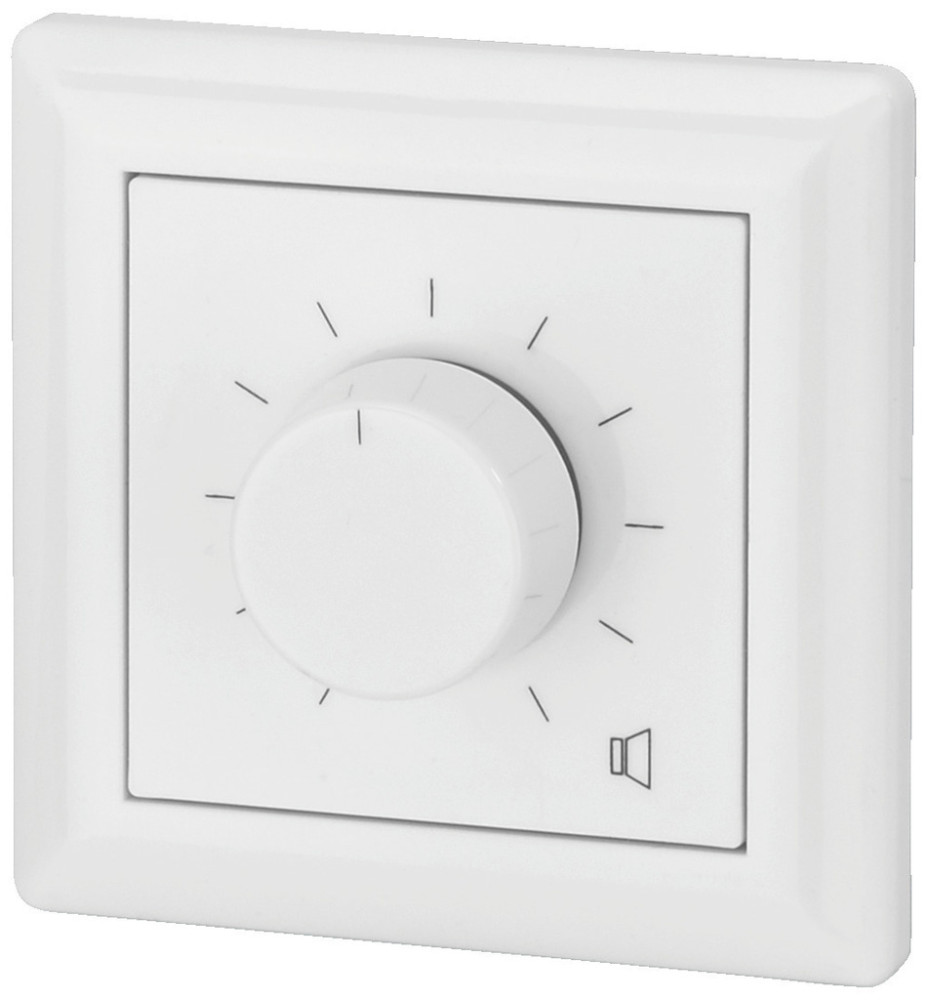

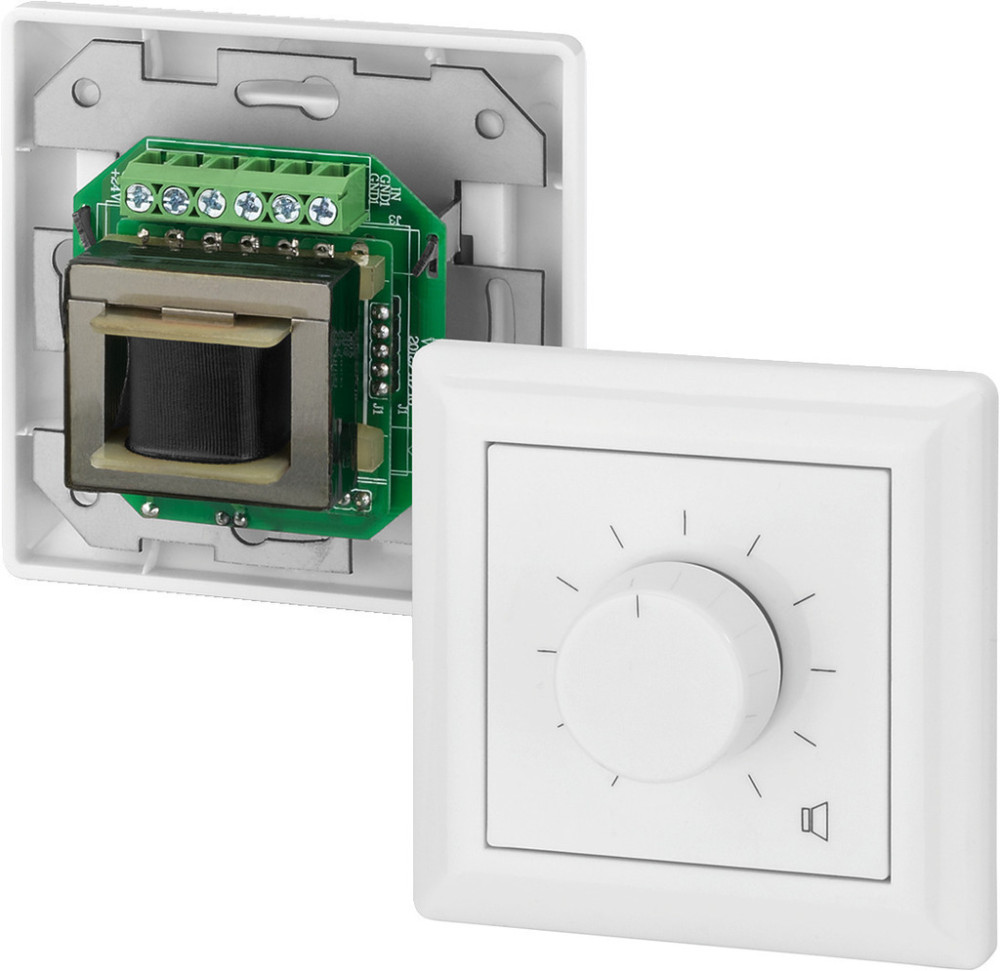

Wall-mounted PA volume control with 24 V emergency priority relay

• Power rating: 12 W
• Attenuation in 10 steps, position 0 is OFF
• For 100 V transmission technology
• White plastic front panel and knob
• Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
• Flush mounting into standard 60 mm wall sockets

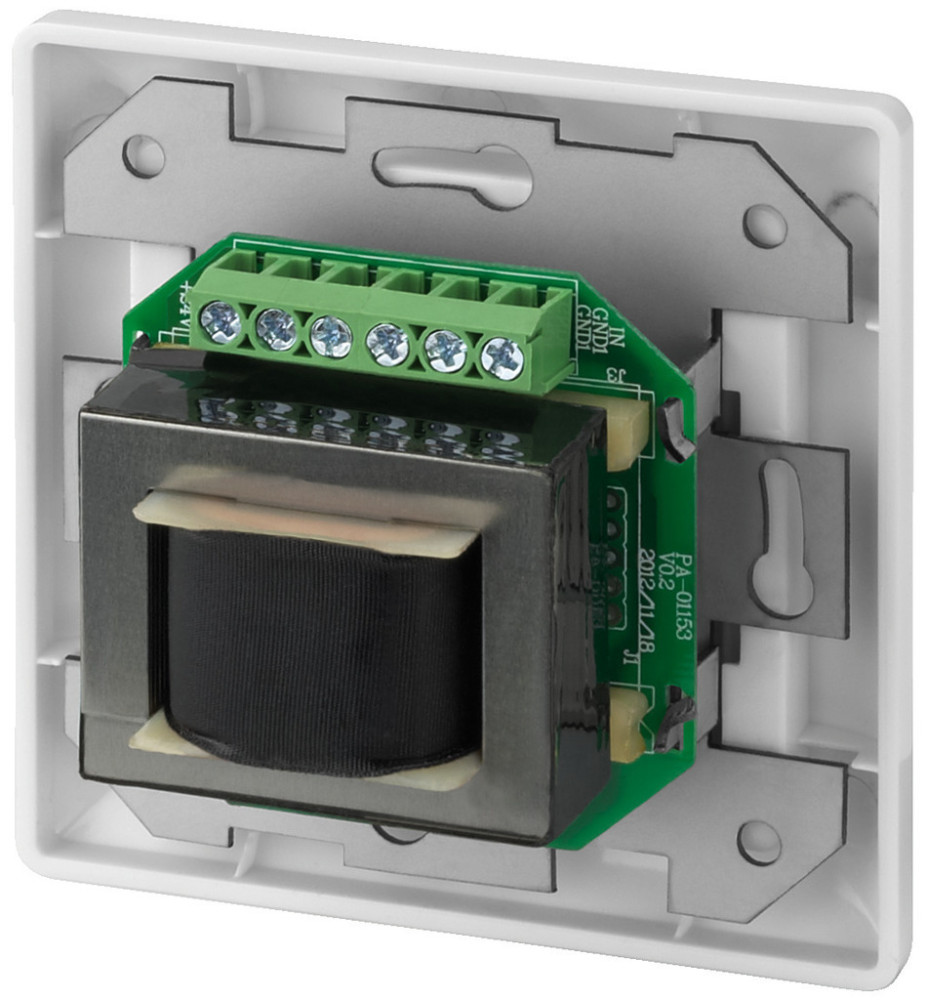

• Plug-in screw terminal

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Beépítési mélység:

45 mm

Méretek:

80x80x66mm

Jellemzők:

PA hangerőszabályzók falbaépíthető kivitelben

Átviteli tartomány:

50-18.000 Hz

Névleges teljesítmény:

24 W

Tömeg:

231 g

Nettó súly:

0,231 kg

Prioritás funkció:

van

EAN code:

4,007,754,231,892

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity UKCA
Declaration of Conformity CE
Catalog page
