WP-1/BK

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

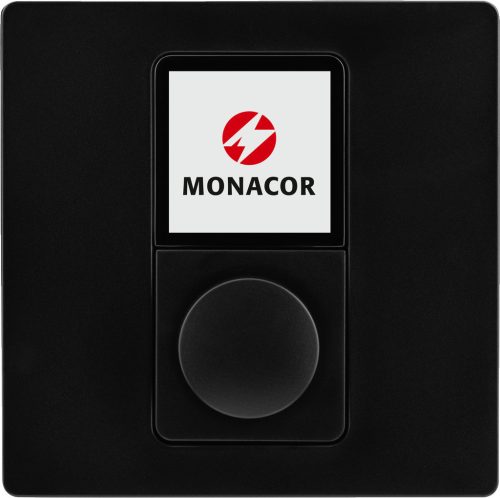

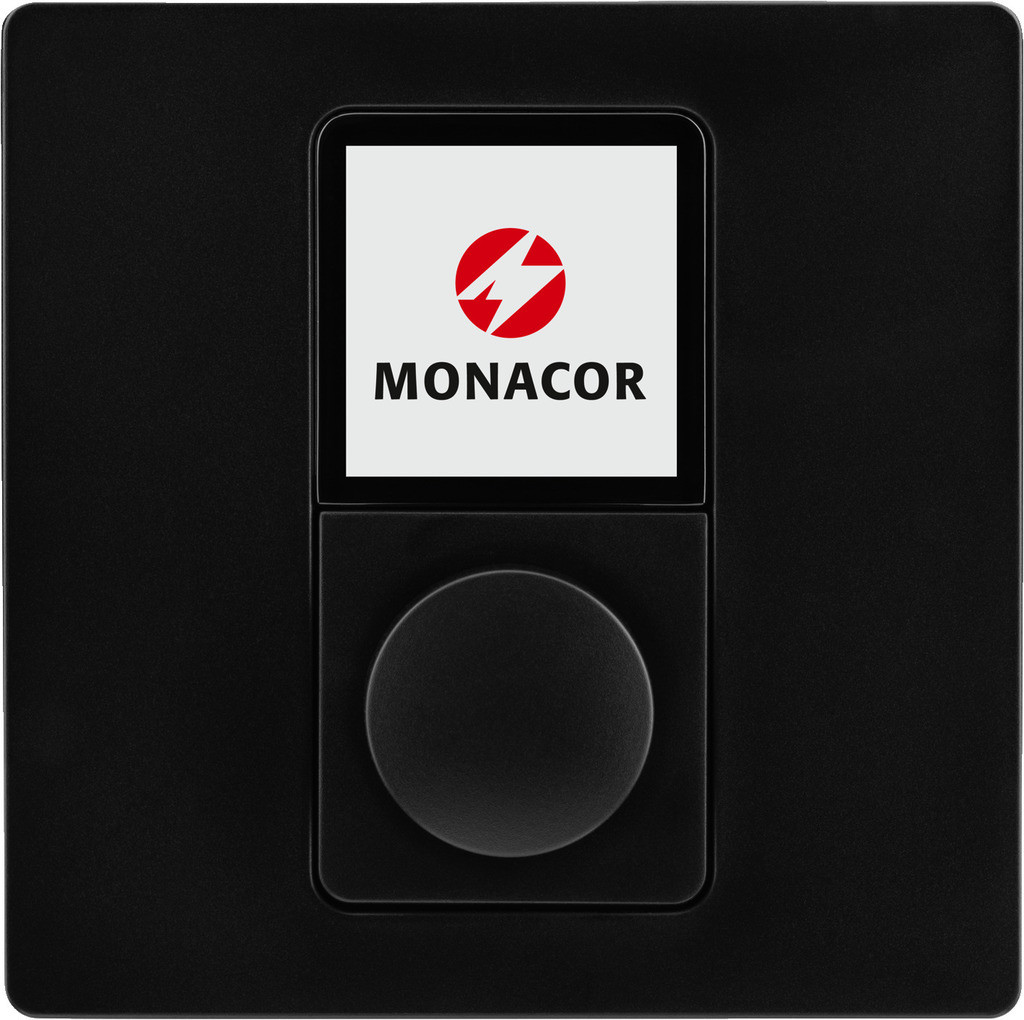

Wall module,

for controlling 4-zone multifunctional amplifiers PA-4125DX and PA-4125DX/DT.

• Connection of up to 8 x wall module WP-1/BK or WP-1/WH to each amplifier PA-4125DX and PA-4125DX/DT
• Each wall module can be assigned to any sound zone of PA-4125DX and PA-4125DX/DT via WebControl app
• Source can easily be changed or volume level be regulated via preset minimum and maximum volume levels
• PoE for easy network pairing, real-time synchronisation of the devices with the system and power supply of the controller
• PIN code protection for easy and extended access, including switching off the system when leaving the location
• Intuitive menu for simple installation, system setup and an easy user operation
• Adjustable screen and backlight for controlling brightness and colour
• High-performance polymer of Danish design with smooth matt surface and covered screws
• Mounting in standard flush-mounted socket
• EU standard colour black RAL9005

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Suitable for:

PA-4125DX, PA-4125DX/DT

Other features:

cable length: 100 m max.

Connections:

1 x RJ45

Rendelési egység:

1

Tömeg:

124 g

Bruttó súly:

0,26 kg

Megengedett körny. hőm.:

0-40 °C

Nettó súly:

0,124 kg

Colour:

black, RAL9005

Description:

wall module

Mounting dimensions:

mounting depth: 23 mm

Type:

remote control of a zone

Power supply:

PoE, 3.84 W max.

Dimensions:

87 x 87 x 43 mm

Packaging dimensions (W x H x L):

0.12 x 0.07 x 0.15 m

EAN code:

4,007,754,427,028

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity CE
Declaration of Conformity UKCA
