TXA-820CD

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

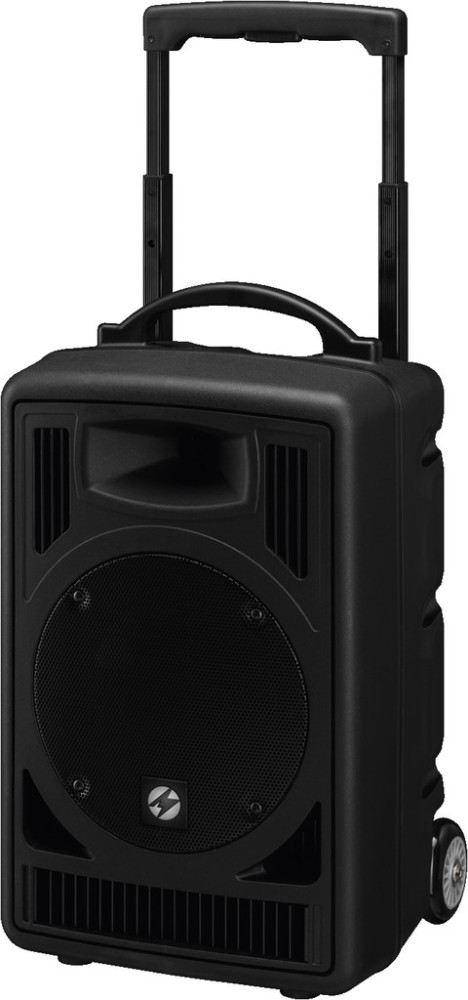

Portable amplifier system,

with integrated 1-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.

• Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 5 hours), integrated automatic battery charging with charging status indication, discharge protection
• For mobile applications, e.g. sales events, lectures
• 16 selectable UHF frequencies (863-865 MHz) with diversity system
• CD player with anti-shock system, MP3 reproduction and slot-in mechanism
• SD card reader, USB port
• Pitch control function
• Supplied with remote control for CD player
• Efficient 2-way speaker system

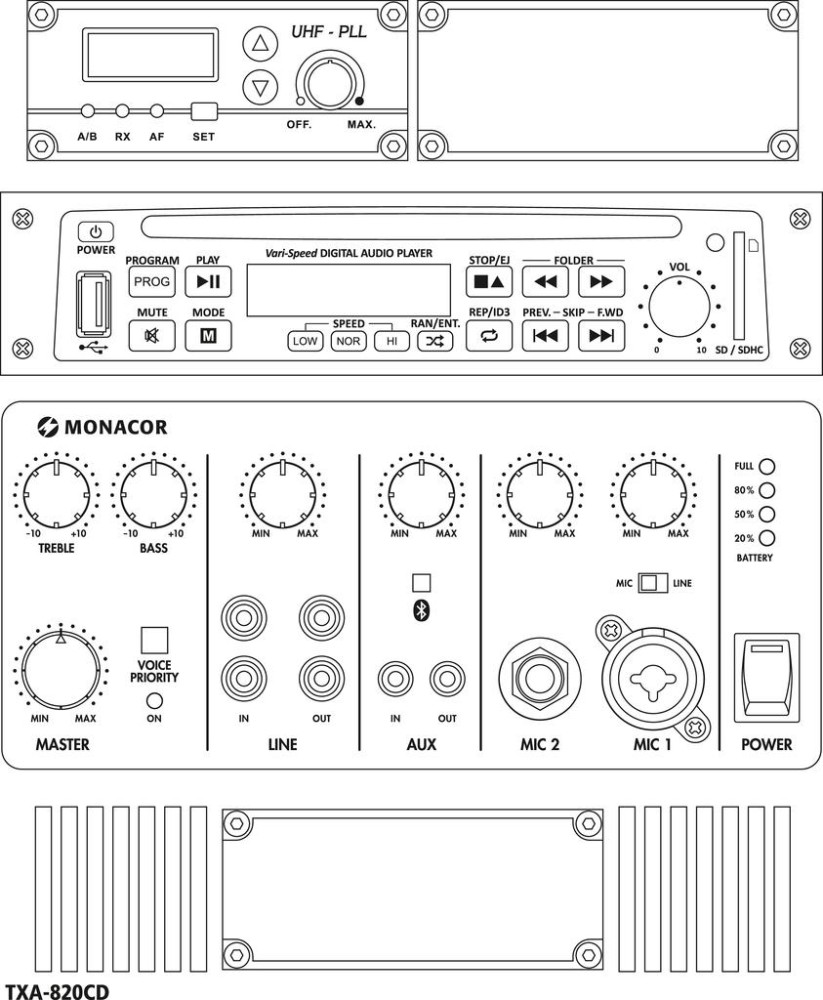

• 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
• Common master control, 2-way tone control
• 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
• Switchable microphone priority circuit
• Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
• Stand sleeve

Licence-free in the EU.

Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or ATS-12HT are avaiable at option.

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Never put (rechargeable) batteries in the household waste. Always dispose of the batteries in accordance with local regulations.

Adatok

Átviteli tartomány:

70-17.000 Hz

Connections:

1 x XLR/6.3 mm jack (mic/line),

1 x 6.3 mm jack (mic)

1 x RCA L/R (line out),

1 x 3.5 mm jack (line out)

Névleges teljesítmény:

50 W

Tömeg:

15,5 kg

Max. teljesítmény:

80 W

Equalizer, bass:

±10 dB/100 Hz

Link:

optional (TXA-820MT)

Megengedett körny. hőm.:

0-40 °C

Bluetooth:

1

Inputs:

6 mV (mic),

300 mV (line)

Nettó súly:

15,62 kg

Vivőfrekvencia:

863-865 MHz

Maximális hangnyomás:

114 dB

Hatótávolság:

≈ 30 m

Equalizer, treble:

±10 dB/10 kHz

Power supply:

˜ 230 V/50 Hz/130 VA,

rech. battery 2 x 12 V/4.5 Ah

Multifrekvenciás:

1

Dimensions:

305 x 510 x 265 mm

EAN code:

4,007,754,269,567

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Portable amplifier system
Instruction manual
Declaration of Conformity CE RED
Declaration of Conformity UKCA RED
Catalog page
