FGA-30M

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

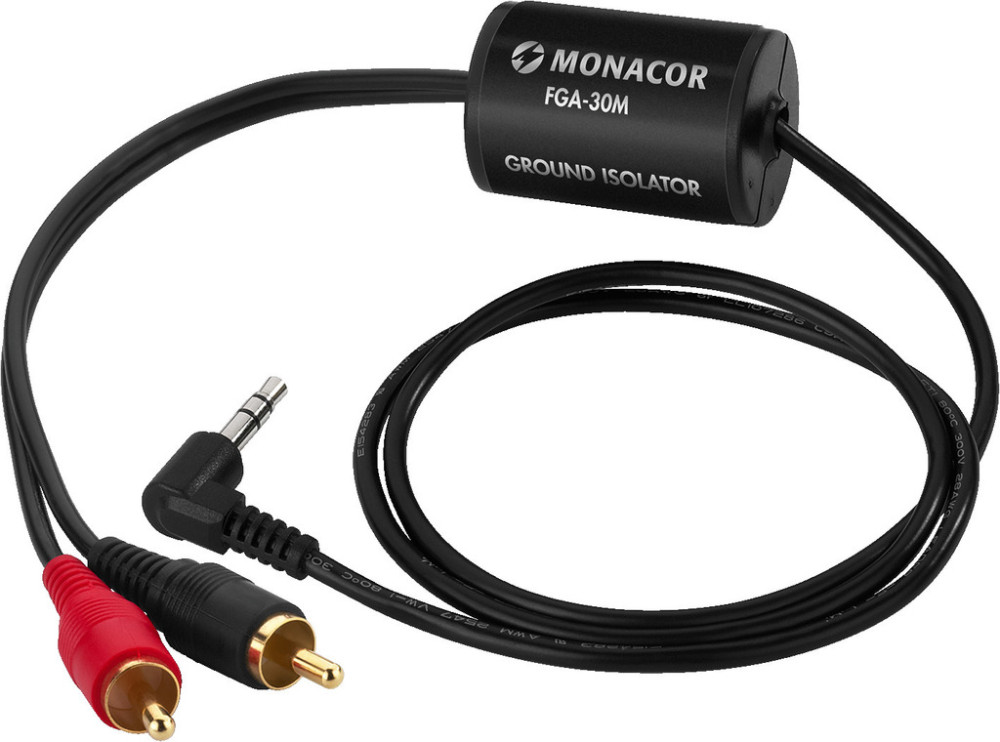

Ground isolator,

compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier.

• Galvanically isolated inputs and outputs
• 2 RCA plugs
• 3.5 mm stereo plug
• Input/output impedance: 20 kΩ
• Frequency range: 20-30,000 Hz
• THD: < 0.01%
• Transmission ratio 1:1
• Ø 24 mm x 38 mm, 32 g
• Length including connection cable: approx. 115 cm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

THD:

< 0,01 %

Bemeneti impedancia:

20 kΩ

Admiss. ambient temp.:

0-40 °C

Outputs:

1 x RCA plug L/R,

1 x 3.5 mm stereo plug

Transmission ratio:

1:1

Súly:

45 g

Inputs:

1 x RCA plug L/R,

1 x 3.5 mm stereo plug

Nettó súly:

0,045 kg

Frequency range:

20-30,000 Hz

Description:

ground isolator

Kimeneti impedancia:

20 kΩ

Dimensions:

Ø 24 mm x 38 mm

EAN code:

4,007,754,227,352

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Declaration of Conformity CE
Instruction manual
Catalog page
