PATL-100/XC

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

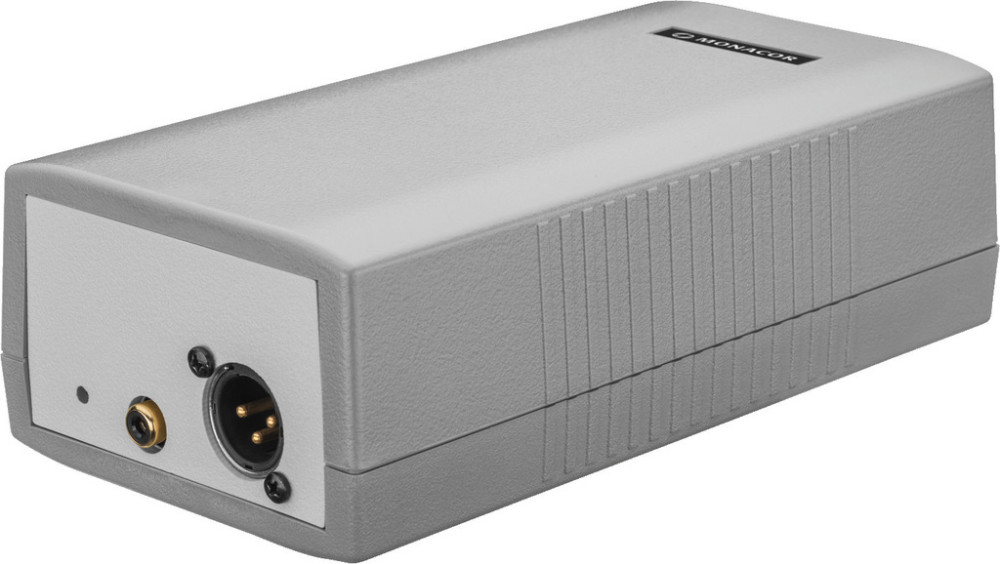

100 V transformer,

for connecting a 100 V audio signal source to devices with line input.

• Adjustable line output level (0-5.6 V at 100 V input voltage), can be switched internally for other output voltages
• 100 V input with plug-in screw terminal
• Balanced XLR output, impedance: 1 kΩ, XLR panel plug
• RCA output
• Insulated plastic housing
• Galvanically isolated input and output
• Dimensions: 100 x 60 x 190 mm
• Weight: 625 g

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Admiss. ambient temp.:

0-40 °C

Outputs:

XLR, bal.

RCA

Output signal:

0-5.6 V (at 100 V)

Súly:

625 g

Inputs:

plug-in screw terminal (100 V)

Nettó súly:

0,625 kg

Description:

100 V transformer

Dimensions:

100 x 60 x 190 mm

EAN code:

4,007,754,275,254

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page
Declaration of Conformity CE
Instruction manual
Declaration of Conformity UKCA
