TCB-22

Kiegészítő termékek

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

2-channel audio balancing transformer

An unbalanced audio signal is passively converted (without power supply) into a balanced signal by means of an audio transformer (doubled in the device).
In addition, a DIP switch can be used to generate a mono signal (lossless, because it is not coupled via resistors) from two input signals (stereo).
The device can also be operated in the opposite direction, i.e. unbalanced signals can be generated from balanced signals. The only thing required is the XLR/XLR adapter NA-3FF which is available at option.

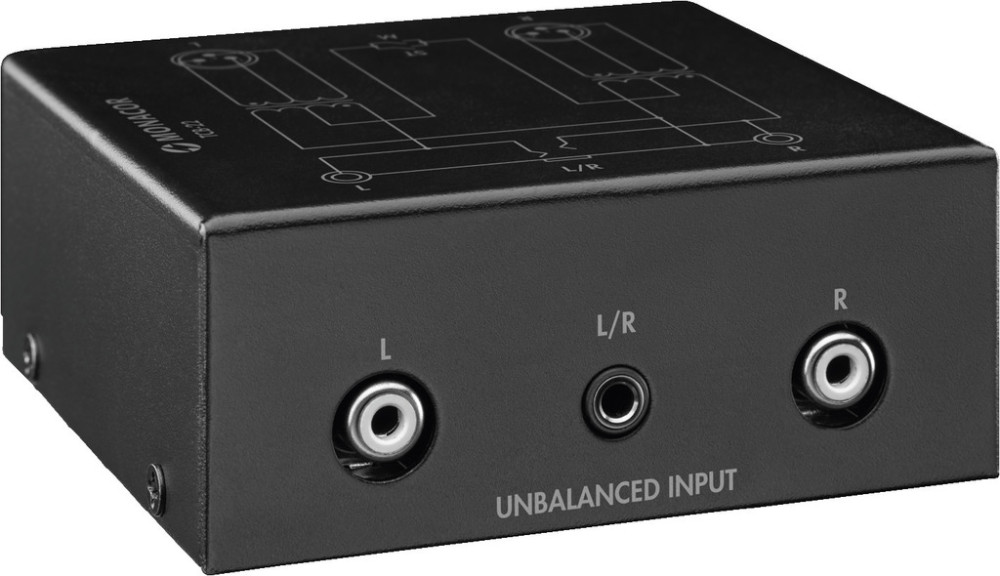

• RCA and 3.5 mm stereo inputs

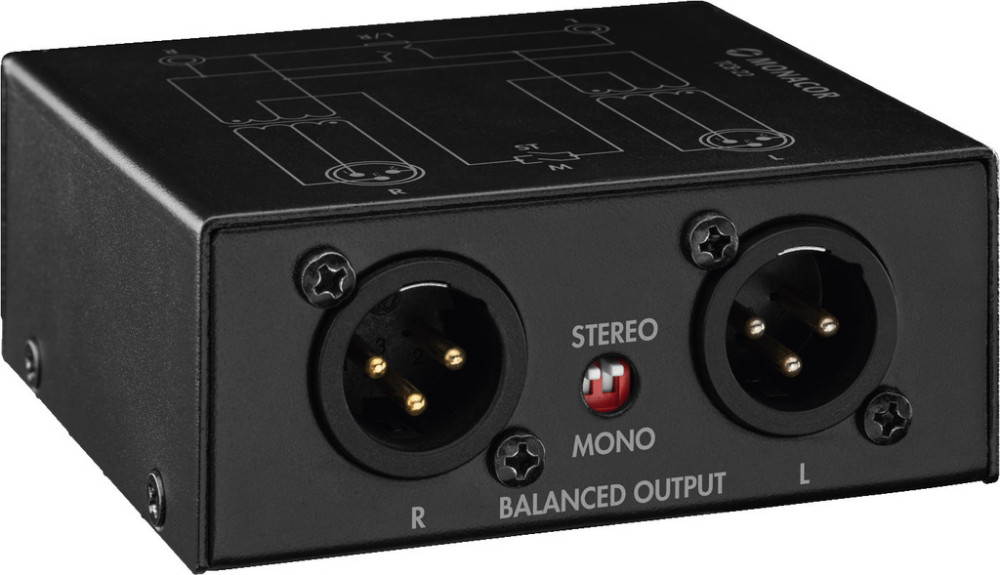

• 3-pole XLR outputs
• 2-pole DIP switches for switching as a stereo/mono converter
• Black metal housing

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Input signal:

15 V max.

Outputs:

2 x 3-pole XLR, bal.

Átviteli tartomány:

6-25.000 Hz

Transmission ratio:

1:1

Súly:

318 g

Inputs:

2 x RCA,

1 x 3.5 mm stereo jack, unbal.

Működési hőm. tart.:

-20-+50 °C

Nettó súly:

0,318 kg

Output impedance:

5.4 kΩ/1 kHz

Description:

2-channel audio balancing transformer

Input impedance:

5.3 kΩ/1 kHz

Dimensions:

88 x 36 x 83 mm

EAN code:

4,007,754,277,005

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity CE
Declaration of Conformity UKCA
Instruction manual
