DRM-882WP

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

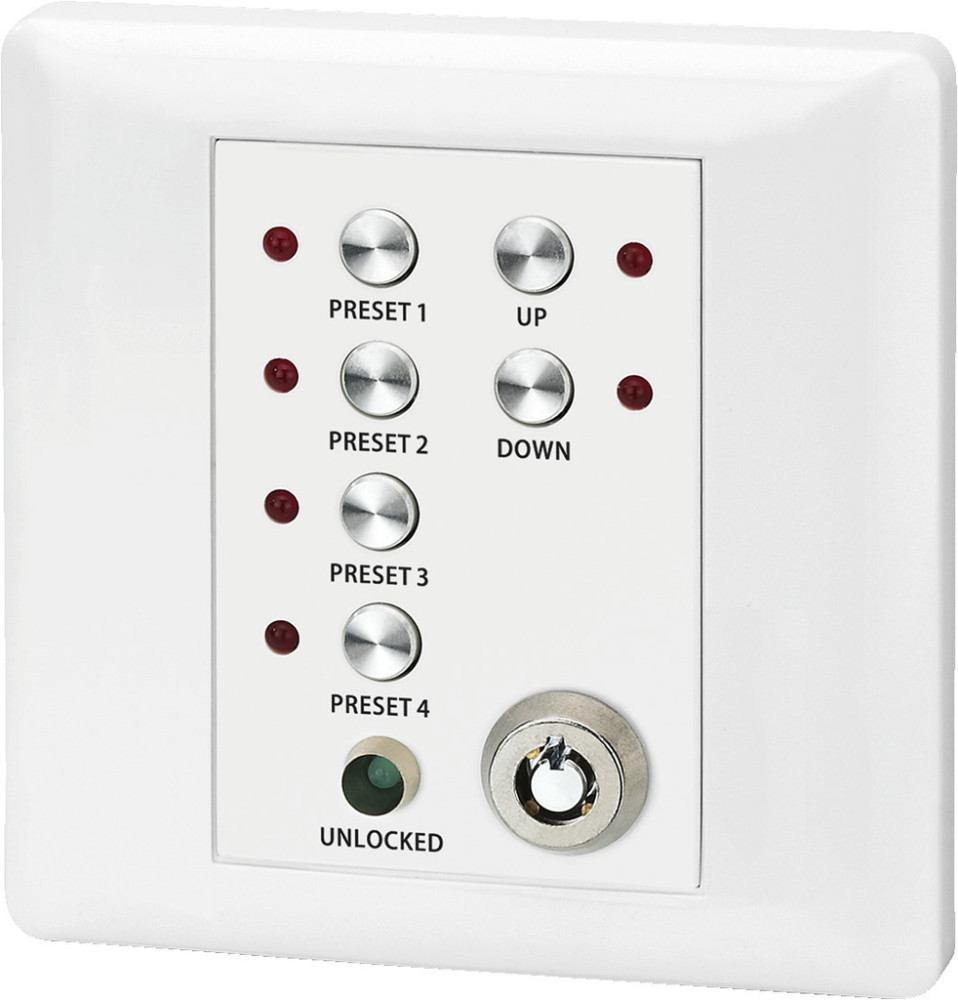

Wall-mounted remote control panel,

for digital matrix router DRM-882LAN.

• The first 4 presets of the DRM-882LAN can be activated at the touch of a button
• Preset status display
• Individual adjustment of the master volume
• Protected from unauthorised access via key switch
• Connection to DRM-882LAN via RS485 interface
• Power supply: DC 5 V/20 mA via optional power supply PSS-510DC

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Suitable for:

DRM-882LAN

Rendelési egység:

1

Tömeg:

164 g

Bruttó súly:

0,2 kg

Megengedett körny. hőm.:

0-40 °C

Nettó súly:

0,164 kg

Colour:

white

Description:

wall-mounted remote control panel

Packing dimensions (W x H x L):

0.095 x 0.05 x 0.175 m

Power supply:

DC 5 V/20 mA

Dimensions:

86 x 86 x 30 mm

Packaging dimensions (W x H x L):

0.095 x 0.05 x 0.175 m

EAN code:

4,007,754,273,205

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Instruction manual
Declaration of Conformity UKCA
Catalog page
Instruction manual
Declaration of Conformity CE
