DRM-884IOP

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

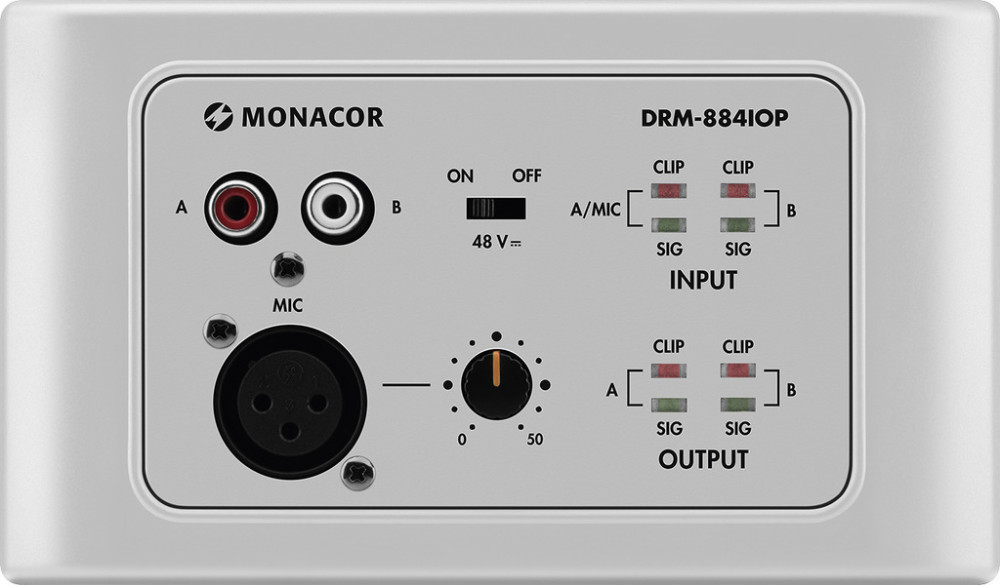

Wall module,

for remote control of audio matrix router DRM-884.

• Intended application: remote control of one zone, local insertion of audio signals
• 2 RCA jacks for line signals
• Adjustable microphone connection via NEUTRIK 3-pole XLR jack
• 48 V phantom power, to be activated as required
• LED indication for input signals and output signals
• Connection to DMR-884 and power supply via RJ45 jack and Cat. 5 network cable, cable length up to 100 m

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Suitable for:

DRM-884

Other features:

48 V phantom power

Connections:

1 x XLR (microphone),

1 x RCA L/R (line),

1 x RJ45

Rendelési egység:

1

Tömeg:

293 g

Bruttó súly:

0,396 kg

Megengedett körny. hőm.:

0-40 °C

Material:

plastic

Nettó súly:

0,293 kg

Colour:

white

Description:

wall module

Packing dimensions (W x H x L):

0.125 x 0.095 x 0.185 m

Type:

remote control of one zone

Power supply:

via DRM-884

Dimensions:

145 x 85 x 53 mm

Packaging dimensions (W x H x L):

0.125 x 0.095 x 0.185 m

EAN code:

4,007,754,261,790

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Instruction manual
Declaration of Conformity CE
