PA-M1WP

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

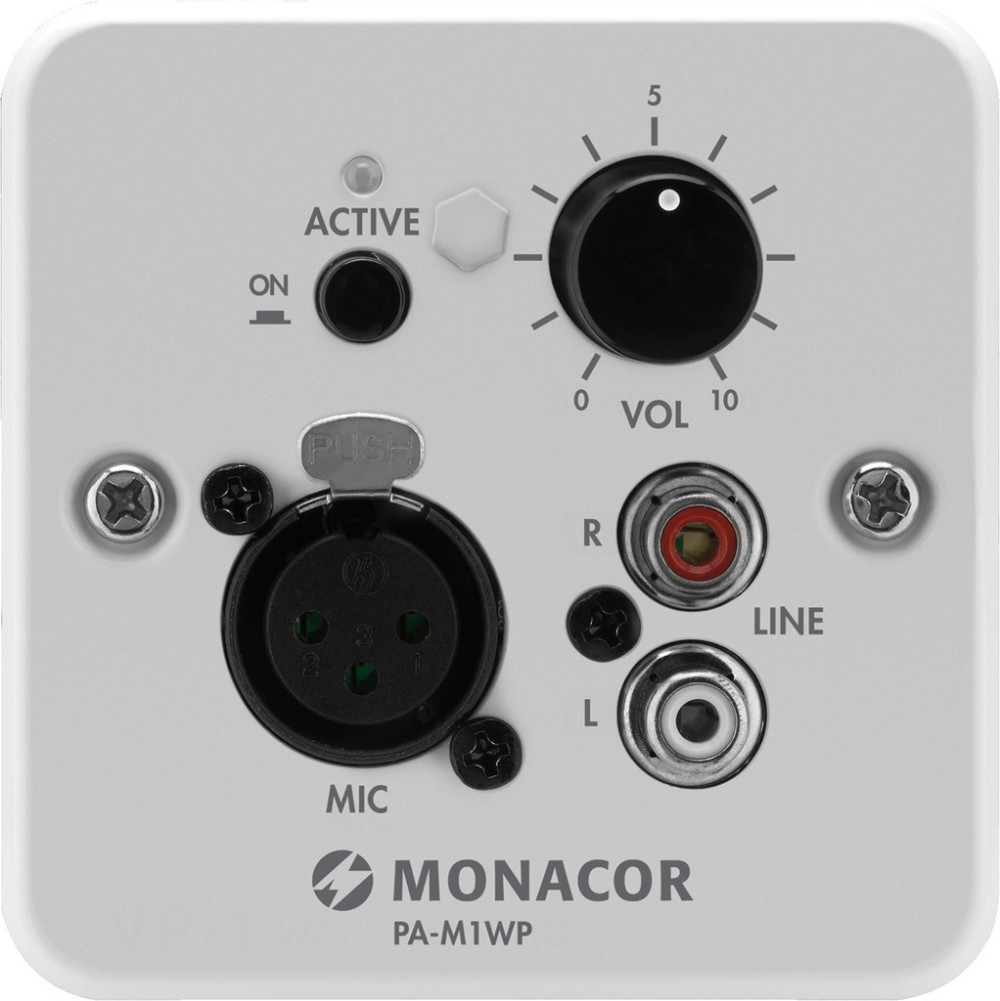

Wall module,

for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.

• Intended application: volume control of 1 zone, local insertion of audio signals
• 2 x RCA jack for line signals
• Microphone connection via 3-pole XLR jack
• 14 V phantom power
• Volume control
• Signal selector button with LED indication which allows a priority circuit of locally inserted audio signals (MIC or LINE) in the respective zone
• Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
• Matching flush-mounted housing ATT-300C is available at option

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Suitable for:

PA-M224, PA-M412

Other features:

14 V phantom power

Connections:

1 x XLR (microphone),

1 x RCA L/R (line),

1 x RJ45

Rendelési egység:

1

Tömeg:

90 g

Bruttó súly:

0,135 kg

Material:

plastic

Nettó súly:

0,09 kg

Colour:

white

Description:

wall module

Packing dimensions (W x H x L):

0.09 x 0.09 x 0.085 m

Type:

remote control of 1 zone

Power supply:

via PA-M224, PA-M412

Dimensions:

80 x 80 x 50 mm

Packaging dimensions (W x H x L):

0.09 x 0.09 x 0.085 m

EAN code:

4,007,754,273,380

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Declaration of Conformity CE
Instruction manual
Catalog page
