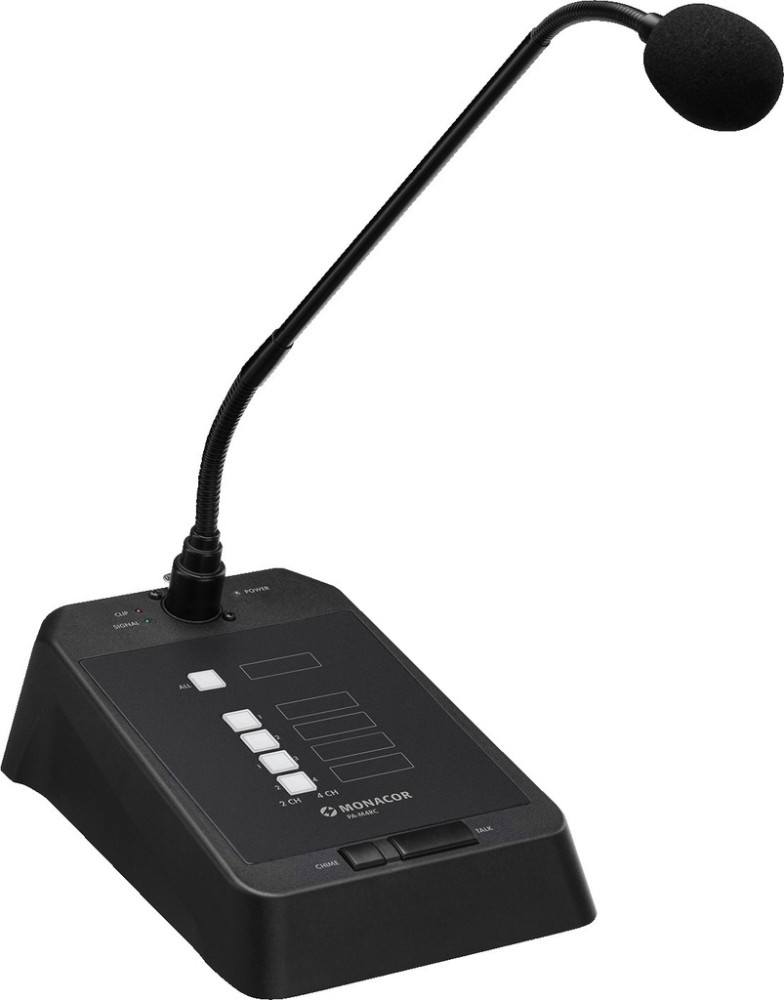

PA zone paging microphone,

for PA matrix mixing amplifier PA-M224 or PA-M412.

• 4 zone selector switch
• ALL-CALL button
• Plug-in electret gooseneck microphone (3-pole XLR jack)
• Phantom power for gooseneck microphone
• LED indication for signal status
• Power supply via PA-M224 or PA-M412
• Connection to PA-M224 or PA-M412 via RJ45 jack and Cat. 5e network cable (copper, supplied w/o cable), cable length up to 200 m

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Admiss. ambient temp.:

0-40 °C

Átviteli tartomány:

45-15.000 Hz

Tömeg:

860 g

Érzékenység:

1 mV/Pa

Bruttó súly:

1,09 kg

Gégecső hossza:

420 mm

Nettó súly:

0,86 kg

Transmission method:

cable

Description:

PA zone paging microphone

Packing dimensions (W x H x L):

0.1 x 0.21 x 0.35 m

Connection:

RJ45

Power supply:

via PA-M224, PA-M412

System:

electret

Dimensions:

140 x 65 x 205 mm

Packaging dimensions (W x H x L):

0.1 x 0.21 x 0.35 m

EAN code:

4,007,754,273,397
