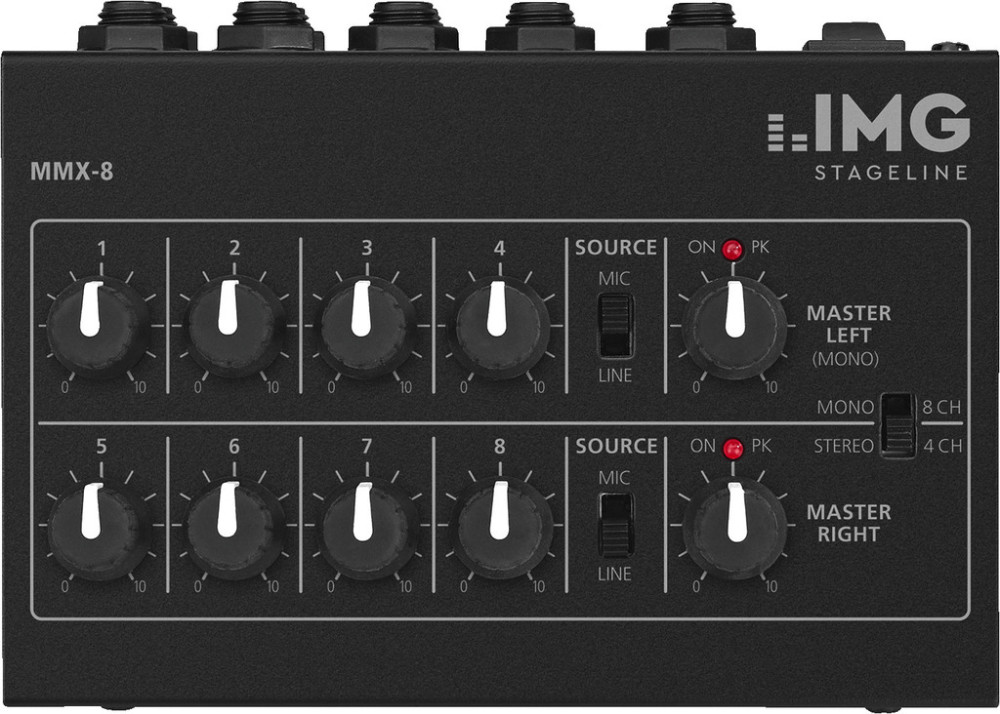

MMX-8

33 731 Ft

MMX-8

Name: MMX-8
SKU: MMX-8
Price: 33731 HUF
Availability: InStock

Németországi raktáron

33 731 Ft

Terméknév:

MIKROFON KEVERŐ

Kérdés esetén keresse kollégánkat bizalommal!

Palkó Péter

+36 30 553 6946

Üzenetet írok!

Univerzális audió mini keverő

Részletek

Miniature universal audio mixer

8 mono channels, switchable mic/line
Selection of 4 stereo channels
2 output level controls, 2 peak LEDs
Supplied w/o battery

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Adatok

Vonalbemenet:

50mV

Master kimenet:

100mV

Magasság:

68 mm

Méretek:

150x115x68mm

Jel/zaj-viszony:

55 dB

Átviteli tartomány:

20-20.000Hz

Sztereó csatornák:

Tömeg:

550 g

Bruttó súly:

0,643 kg

Bemeneti csatornák:

Táp:

9V-os elemről vagy a külön rendelhető PSS-600E tápegységről

Megengedett környezeti hőmérséklet:

0-40°C

Nettó súly:

0,551 kg

Szélesség:

150 mm

Packing dimensions (W x H x L):

0.12 x 0.085 x 0.16 m

Monó mikrofon csatornák:

Mélység:

115 mm

Teljes harmonikus torzítás:

< 0,4 %

Mikrofon bemenet:

5mV

Packaging dimensions (W x H x L):

0.12 x 0.085 x 0.16 m

EAN code:

4,007,754,074,925

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Declaration of Conformity UKCA
Declaration of Conformity CE
Instruction manual
