MXT-52MP3

118 999 Ft

MXT-52MP3

Name: MXT-52MP3
SKU: MXT-52MP3
Price: 118999 HUF
Availability: InStock

Németországi raktáron

118 999 Ft

Terméknév:

Fali süllyesztett keverő

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

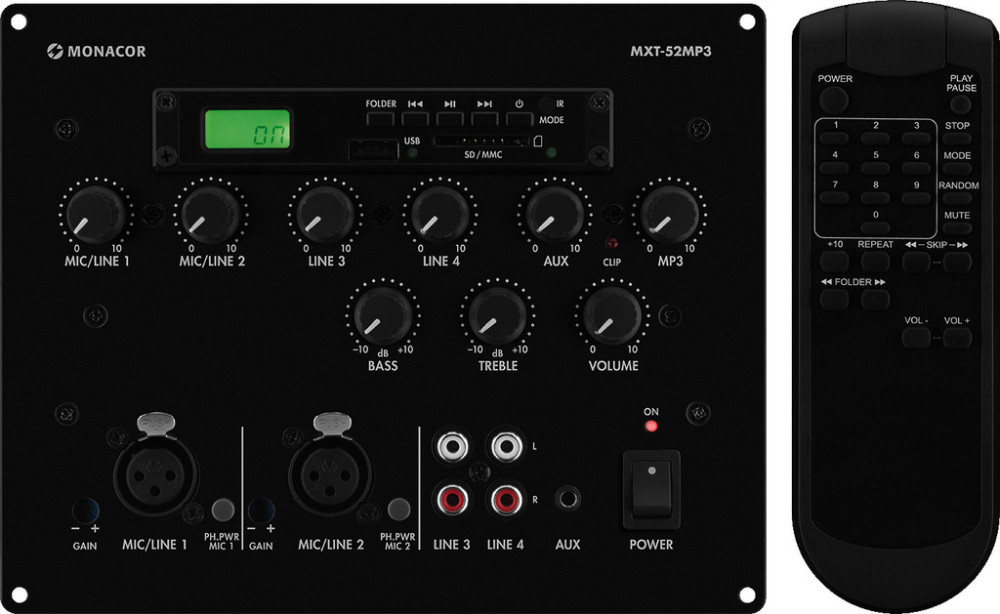

Mixer with integrated MP3 player

Részletek

Mixer with integrated MP3 player,

for flush-mounting into walls.

2 balanced microphone/line inputs (XLR), each with gain control and selectable phantom power
2 line inputs (RCA L/R)
1 aux input (3.5 mm jack)
Integrated MP3 player with USB port and SD/MMC card slot, including remote control
Each input with level control
Output with 2-way tone control and level control
LED for indicating clip and operating status
Metal housing with rear cover for protection against dirt

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Bemenetek száma:

Csatornák száma:

Magasság:

160 mm

Jel/zaj-viszony:

> 78 dB

Átviteli tartomány:

20-20.000 Hz

Line input:

230 mV, 2 x XLR, bal.

160 mV, 2 x RCA L/R

Tömeg:

1,25 kg

Media player:

MP3, USB

Bruttó súly:

1,53 kg

Megengedett környezeti hőmérséklet:

0-40 °C

Tápellátás:

24 V

Fantomtáp:

19 V

Nettó súly:

1,276 kg

USB:

yes

Aux input:

160 mV, 1 x 3.5 mm jack

Mic input:

1 mV, 2 x XLR, bal.

Szélesség:

200 mm

Packing dimensions (W x H x L):

0.22 x 0.145 x 0.265 m

Mélység:

90 mm

Teljes harmonikus torzítás:

< 0,03 %

Equalizer bass:

±10 dB/100 Hz

Power supply:

DC/˜ 24 V/250 mA

Equalizer treble:

±10 dB/12 kHz

Master output:

1-10 V, terminal, mono, bal.

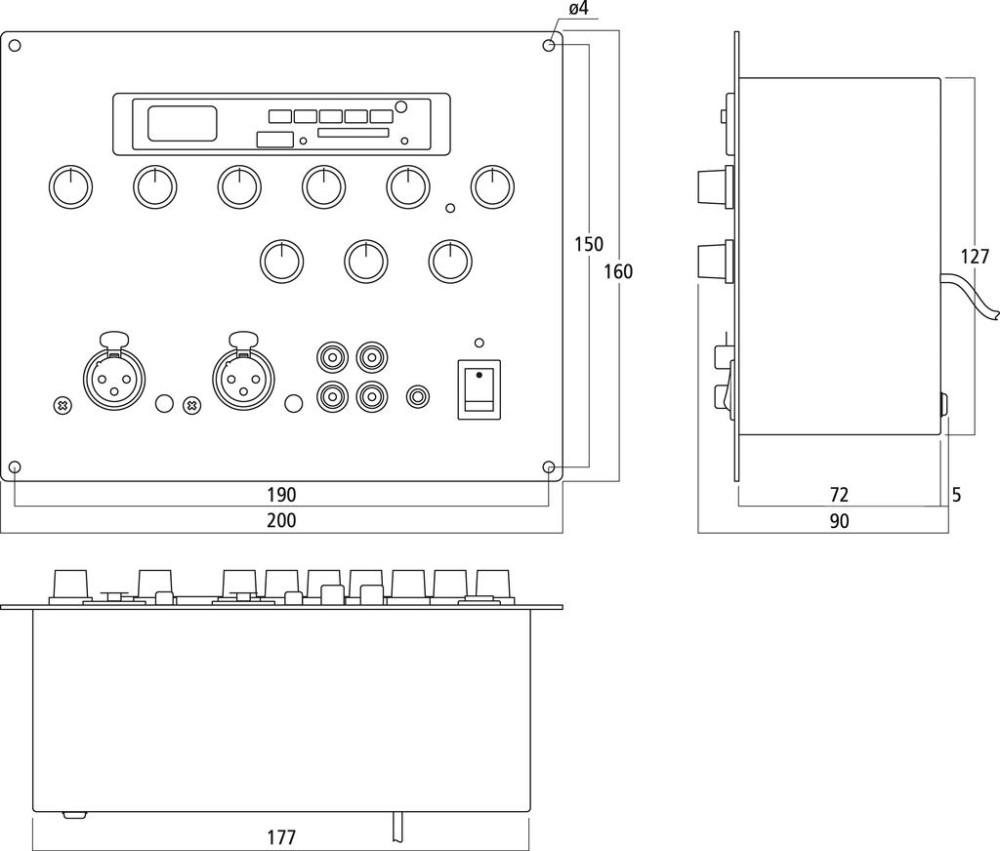

Dimensions:

200 x 160 x 90 mm

Packaging dimensions (W x H x L):

0.22 x 0.145 x 0.265 m

EAN code:

4,007,754,261,387

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page
Declaration of Conformity CE
Declaration of Conformity UKCA
Instruction manual
