MP3 lejátszó és mikrofon vonal keverő

Részletek

MP3 player and microphone line mixer

With this unit combination, it is possible to mix 3 audio signal sources. The integrated MP3 player can be switched between SD card, USB port and Bluetooth receiver.

USB storage media can be connected directly
For SD/MMC cards up to 64 GB, not in the scope of delivery
Autoplay/single play function
Repeat function
Supports directoroty
5-band equalizer
Autostart of last source/replay mode/Equalizer setting
Alphanumeric display
Repeat function
3 input channels with level control (mic, aux/MP3, line)

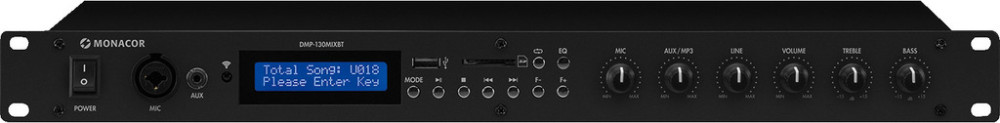

Aux input and microphone input via front panel connection
2-way tone control and level control for the master output
Infrared remote control for MP3 player
Blue backlit LCD
482 mm (19") rack installation

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Hálózati frekvencia:

50 Hz

Admiss. ambient temp.:

0-40 °C

Jel/zaj-viszony:

> 70 dB

Dinamikatartomány:

> 96 dB

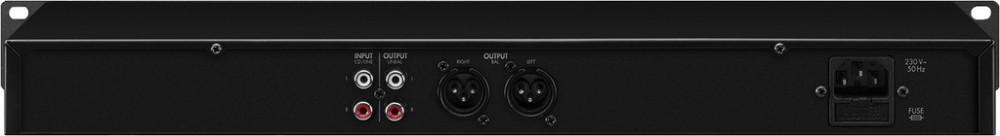

Connections:

1 x combo 6.3 mm/XLR (mic/line),

1 x 3.5 mm jack (aux in),

1 x RCA L/R (line in),

1 x RCA L/R (line out),

1 x XLR L/R, bal. (output)

Tömeg:

2,5 kg

Bruttó súly:

3,3 kg

Bluetooth:

Üzemi áramfelvétel:

20 VA

Tápellátás:

- 230 V

Nettó súly:

2,75 kg

Frequency range:

20-20,000 Hz

Output, analogue:

1.8 V (XLR, bal.)

890 mV (RCA)

Description:

MP3 player and microphone line mixer

Packing dimensions (W x H x L):

0.243 x 0.11 x 0.545 m

Media:

MP3, USB, SD, MMC

Csatornaszeparáció:

> 60 dB

Teljes harmonikus torzítás:

< 0,1 %

Power supply:

˜ 230 V/50 Hz/20 VA

Dimensions:

482 x 44 x 160 mm, 1 RU

Packaging dimensions (W x H x L):

0.243 x 0.11 x 0.545 m

EAN code:

4,007,754,274,950
