EPS110/RS485

221 628 Ft

EPS110/RS485

Németországi raktáron

221 628 Ft

Terméknév:

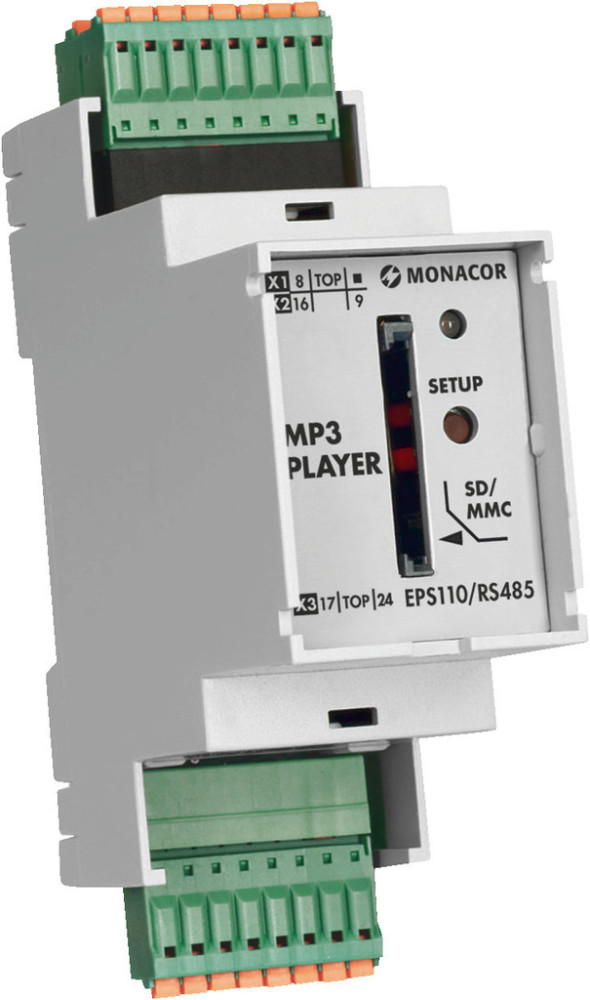

DIN sínre szerelhető SD/MMC MP3 lejátszó, 2 HP

Kérdés esetén keressen bizalommal!

Gyenge András

+36 30 553 6946

Üzenetet írok!

MP3 player, DIN rail

Részletek

MP3 player,

event-driven.

For mounting onto DIN rails according to DIN EN 60715, 2 HP
For SDHC/SD/MMC cards up to 32 GB (FAT32), not included in the scope of delivery
Extensive playback functions
7 binary inputs
In/Out string triggers
RS-485 interface for communication
Decentral extensions
Connection for EIB push-button sensor
Balanced stereo line output, can also be used as a headphone output
Delay function up to 60 seconds
Free configuration software
Firmware update possible

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: -25 °C up to +50 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: -35 °C up to + 55 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Adatok

Átviteli tartomány:

18-20.000 Hz

Connections:

7 binary inputs

Power supply (possible alternative):

60 mA (7 V)

25 mA (24 V)

Tömeg:

96 g

Bruttó súly:

0,1155 kg

Megengedett körny. hőm.:

-35-+55 °C

Nettó súly:

0,096 kg

Output, analogue:

2 V/600 Ω

Description:

MP3 player

Üzemi feszültség (lehetséges alternatíva):

7-24 V

Packing dimensions (W x H x L):

0.037 x 0.095 x 0.075 m

Media:

MP3, WAV

Teljes harmonikus torzítás:

0,001 %

Dimensions:

74 x 113 x 35 mm

Packaging dimensions (W x H x L):

0.037 x 0.095 x 0.075 m

EAN code:

4,007,754,419,740

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Firmware
Software
Firmware
Controller software
Declaration of Conformity CE
Declaration of Conformity UKCA
Technical data sheet
Instruction manual
