ATT100

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

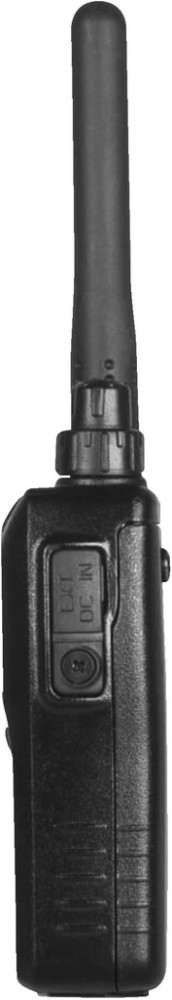

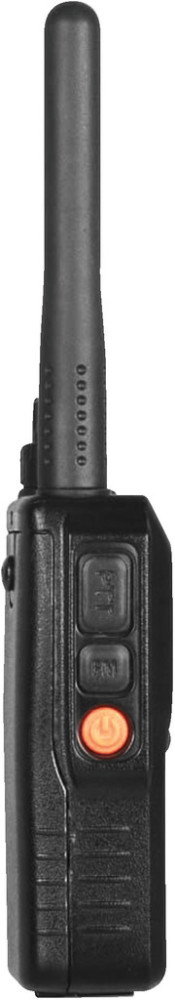

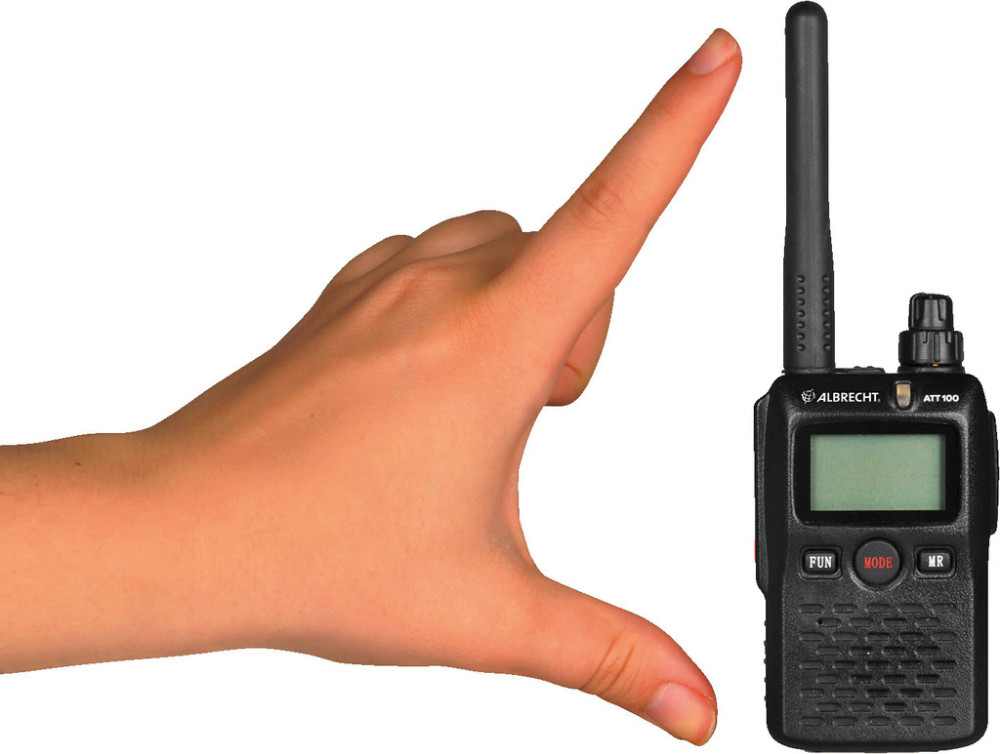

Tour guide transmitter

• 10+10 pre-programmed channels, channels 1-10 are transmitting with low power (operating range: approx. 200 m), channels 11-20 are transmitting with increased power (PMR446 standard: high operating range of up to 2 km)
• High battery capacity for continuous announcements of up to 6 hours
• Fully programmable (depending on the application)
• 3 different operating modes can be selected:

• Continuous transmission
• Voice control
• Control via push-to-talk buttons (PTT)

• Matching the tour guide receiver ATR200

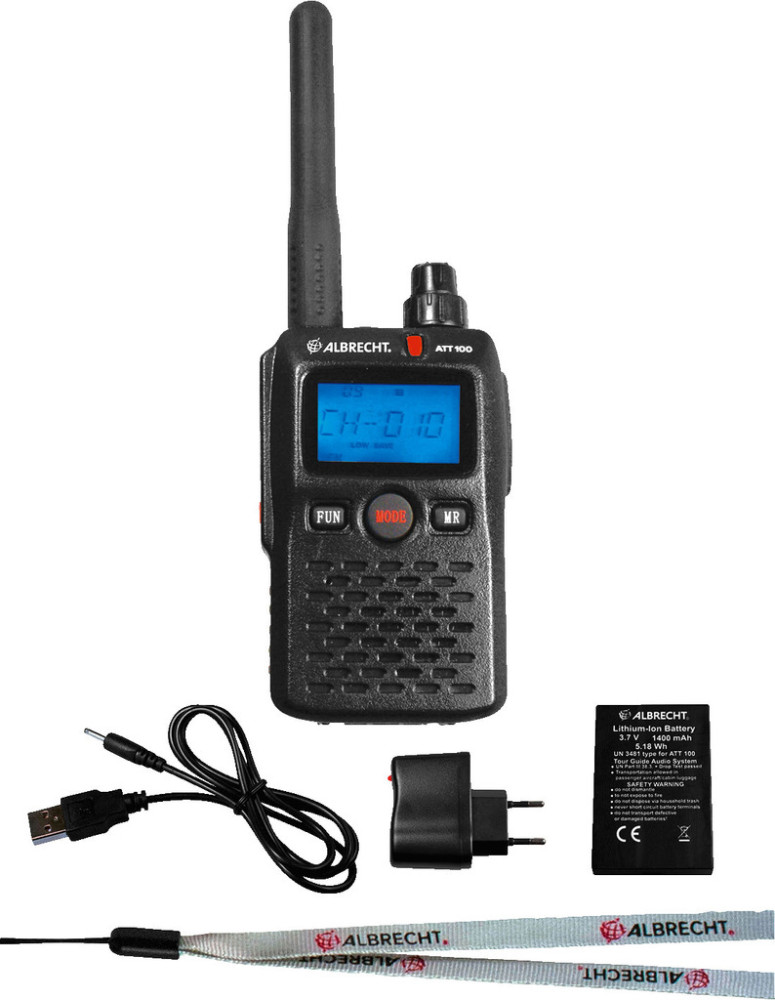

• Supplied with belt clip, lanyard

Licence-free, please refer to instruction manual on MONACOR's website.

Manufacturer information:

Alan Electronics GmbH
Daimlerstrasse 1 g
63303 Dreieich
Germany
info@albrecht-midland.de

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Safety Notes and Warning Messages

The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Adatok

Power supply transmitter:

1,200 mAh rech. lithium-ion batt.

Connections transmitter:

4-pole headset jack,

DC charging socket

Operating range:

200 m/2 km

Megengedett körny. hőm.:

-10 °C to +40 °C

Az adó mélysége:

27 mm

Nettó súly:

0,179 kg

Description:

20-channel tour guide transmitter

Transmitting power:

10 mW/100 mW

Csatornák:

1

Vivőfrekvencia:

446,00625-446,1 MHz

Az adó szélessége:

83 mm

Az adó tömege:

150 g

Az adó magassága:

52 mm

EAN code:

4,032,661,299,024

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok

Letöltések

Catalog page
Instruction manual
