PA-26FMU

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

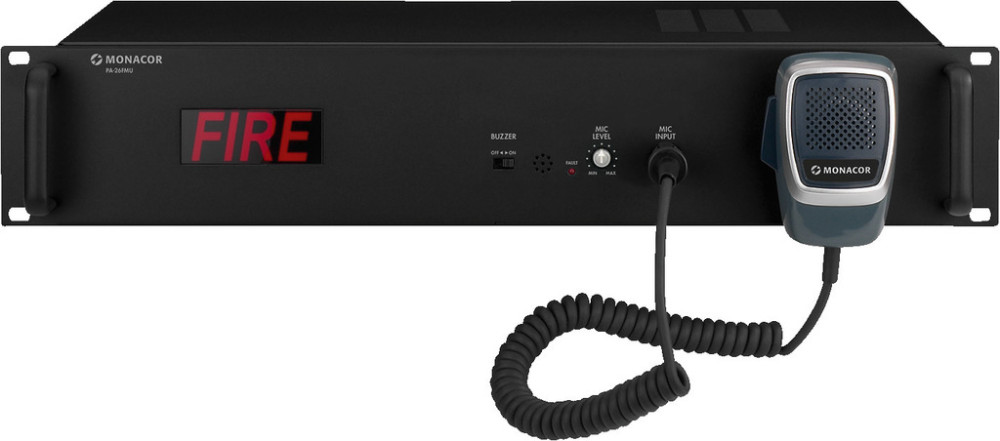

PA emergency sound system,

for integrating into PA systems according to EN 60849.

• Hand-held microphone with operational monitoring
• Alarm input for triggering alarm
• Reproduction of MP3 voice recordings via integrated SD card slot (for media up to 32 GB, not supplied), volume control
• Siren emits an acoustic signal for 10 seconds when alarm is triggered, volume control
• Built-in signal light FIRE flashes when alarm is triggered
• Balanced line output via screw terminal contact
• 24 V power supply via PSS-3000SV, available at option

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Safety and warning notices

Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
The heat generated in the device must be dissipated by air circulation. Therefore, do not cover the ventilation openings of the housing.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Adatok

Méretek:

482x88x200mm, 2RS

Kimeneti jelszint:

1,23V/600Ω, szimm.

Tömeg:

3kg

Táp:

24V DC/200mA

Nettó súly:

3,63 kg

Sziréna frekvencia:

800Hz

Max rögzítési idő:

60 másodperc

EAN code:

4,007,754,253,764

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

2D PDF drawing
Instruction manual
Catalog page
Declaration of Conformity CE
Declaration of Conformity UKCA
