RACK-MXT52MP3

• Részletek
• Adatok
• Vélemények
• Letöltések

Részletek

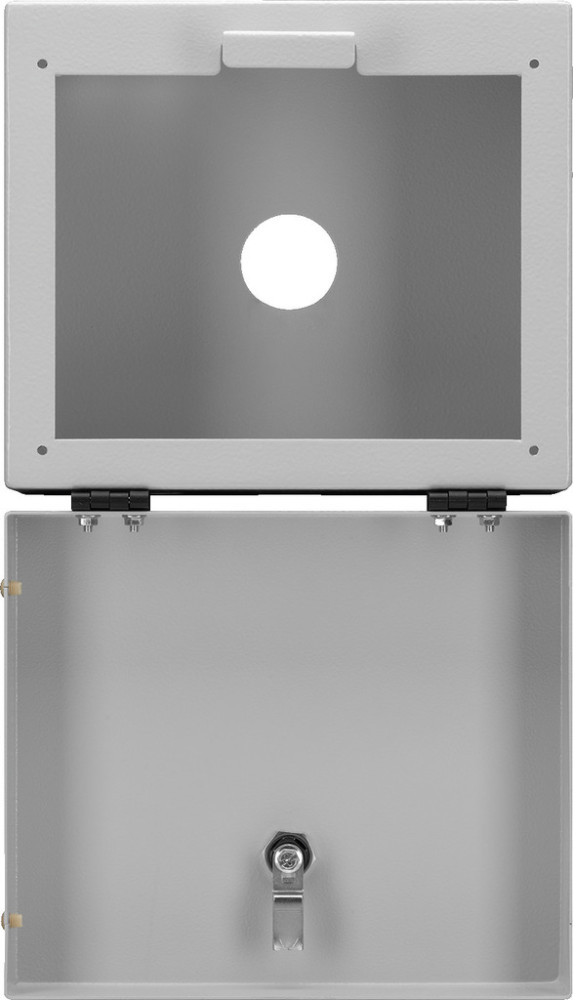

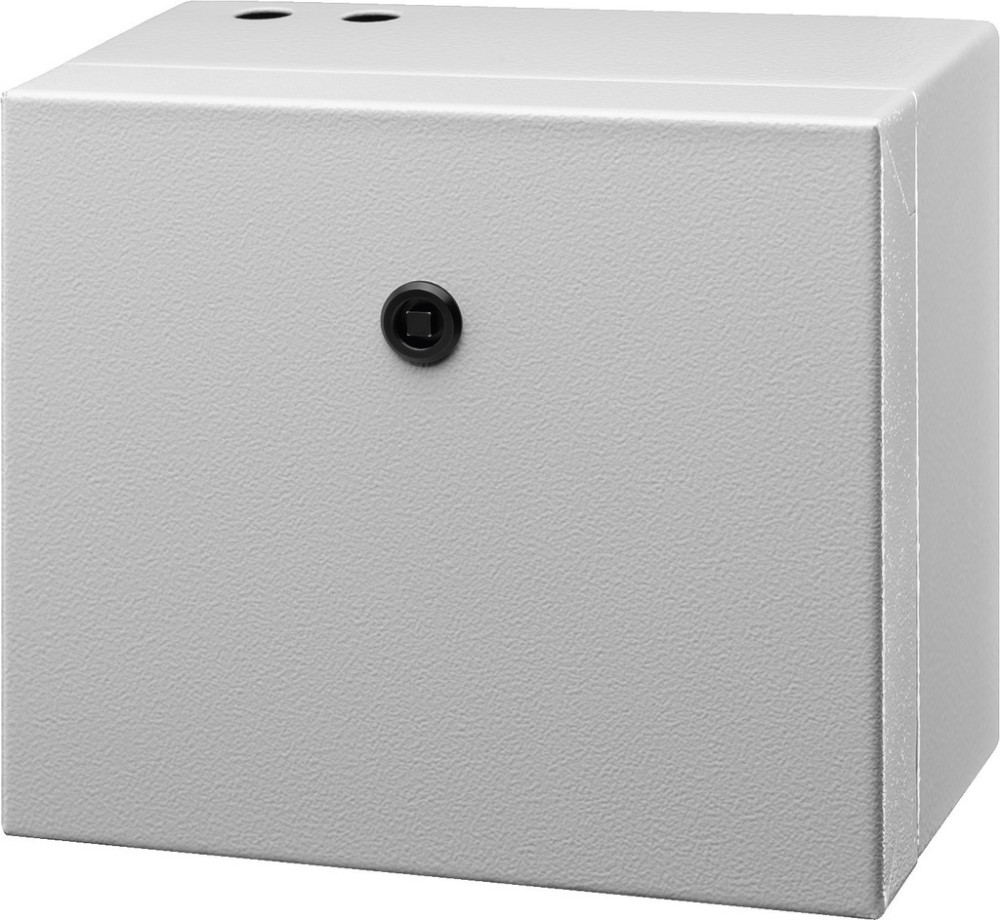

Wall-mounted housing,

for mounting the mixer with integrated MP3 player MXT-52MP3.

• Sheet steel version
• Light grey powder coating (RAL 7035)
• Attached hinged cover, opens downwards, non-removable, lockable
• Round rear panel cutout (40 mm) for cable inlet
• Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
• Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
• Max. mounting depth behind the front panel: 74 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Adatok

Magasság:

190 mm

Mounting accessories:

matching key

Tömeg:

2 kg

Size:

suitable for MXT-52MP3

Usable depth:

74 mm

Material:

sheet steel housing, powder-coated

Version:

hinged cover, opens downwards, non-removable, lockable

Nettó súly:

2 kg

Colour:

grey (RAL 7035)

Szélesség:

220 mm

Mélység:

126 mm

Intended use/capacity:

wall-mounted housing

Outside dimensions:

220 x 190 x 126 mm

EAN code:

4,007,754,414,660

Vélemények

Legyen Ön az első, aki véleményt ír!

Véleményt írok!

Letöltések

Catalog page

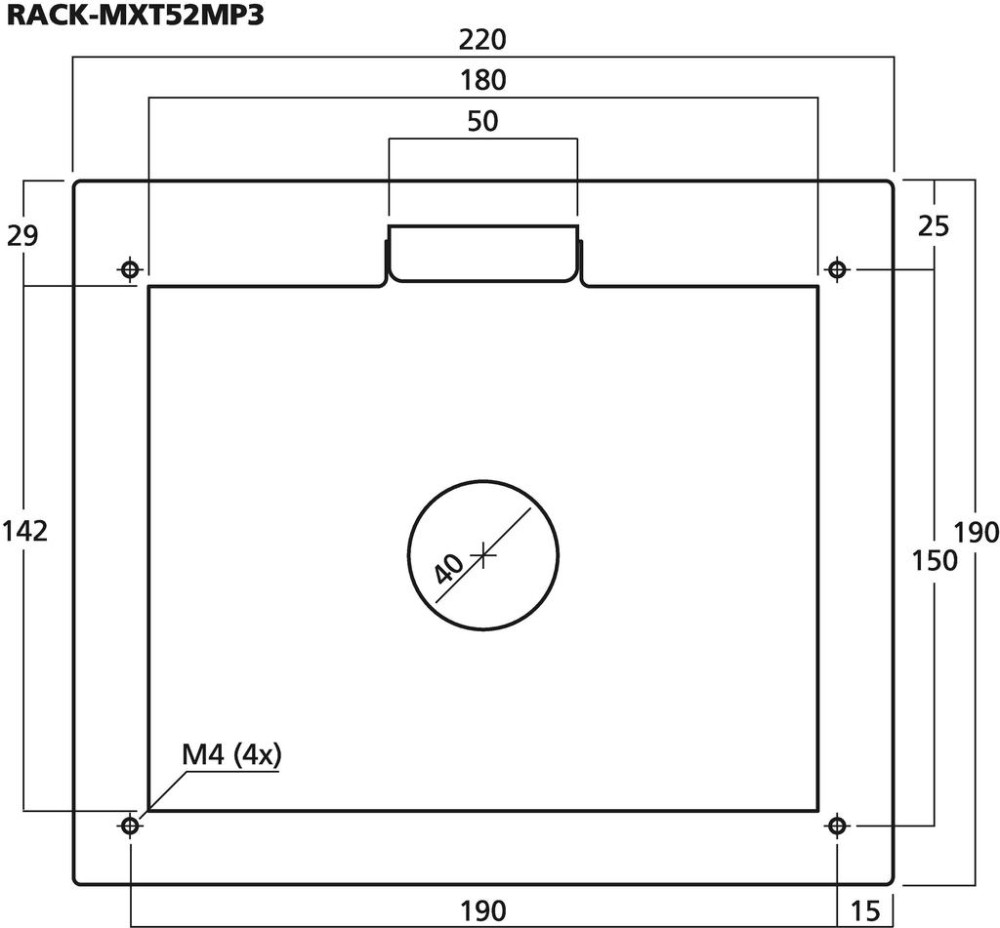

2D PDF drawing
